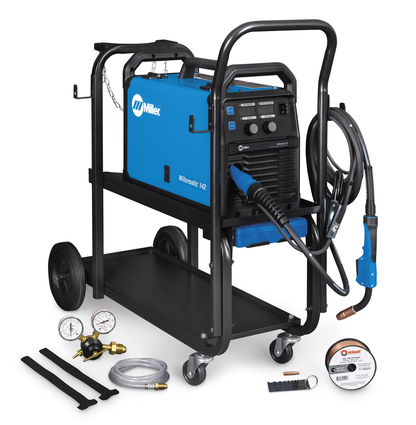

Miller Electric Millermatic 142 MIG Welder with Running Gear/Cylinder Rack - 951000072

MIG and flux cored 120 V welder that welds from 24 gauge – 3/16 in. mild steel.

Features

• 120V Input Power: Uses 120V input power so there is no special power requirements. Flexible to use in any location!
• Quick Select™ Drive Roll: Makes setup quicker by offering three grooves - two for different size solid wire and a third for flux-cored wire.
• Smooth-Start™: This technology provides a smooth, spatter-free start. No more pop-gun starts or spatter to clean up.
• Auto Spool Gun Detect™: Automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.
• Auto-Set™: A breakthrough control that automatically sets your welder to the proper parameters. Auto-Set offers all-in-one MIG minus the hassle of finding parameters. Simply set the wire diameter, set the material thickness, and start welding!
• Generator Compatible: The Millermatic 142 will be able to operate and provide full output when powered by generators with 5,000-watt (5.0K) output or higher, such as a Miller Blue Star 185 (6200 watts) or Fusion 185 (6200 watts) engine-driven welder. Limited output will occur when used with smaller generators.
• Thermal Overload & 'Tip Saver' Short Circuit Protection: Shuts down the unit and activates the over-temperature light if the airflow is blocked or duty cycle is exceeded. Tip Saver shuts down output when the tip is shorted to the work extending tip life and protecting internal components from damage.
• Segmented Display: Easy to read display gives you the flexibility to set the machine precisely and accurately in Manual and Auto-Set modes.

• Input Voltage: 110/115/120 V, 60 Hz, single-phase
• Amperage Range: 30 A - 140 A
• Rated Output: 100 A at 19 V, 60% duty cycle; 80 A at 18 V, 100% duty cycle
• Max Open Circuit Voltage: 57 VDC
• Wire Feed Speed: 0.4 m/min - 15.2 m/min (60 - 600 IPM)
• Wire Diameter: Solid Steel 0.024 in. - 0.03 in.; Flux Cored 0.03 in. - 0.035 in.; Stainless Steel 0.024 in. - 0.03 in.
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Material Thickness Range: Aluminum 18 ga. (1.2 mm) - 14 ga. (1.9 mm); Mild Steel 24 ga. (0.8 mm) - 3/16 in. (4.8 mm)
• Spool Size: 8 in.
• Weight: 33 lb. (15.4 kg)
• Dimensions: H: 14.625 in. (372 mm), W: 9.75 in. (248 mm), D: 20 in. (508 mm)
• Material Type: Solid Steel, Stainless, Flux Cored
• Weld Output: CV DC
• Country of Origin: United States
• Compliance: Certified by Canadian Standards Association to Canadian and U.S. Standards
