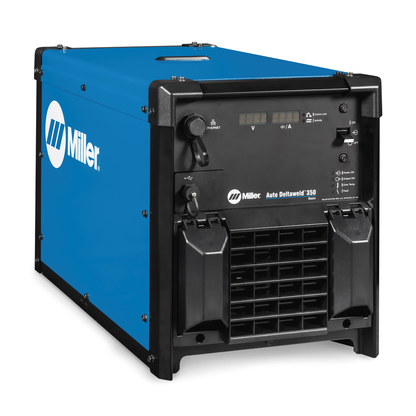

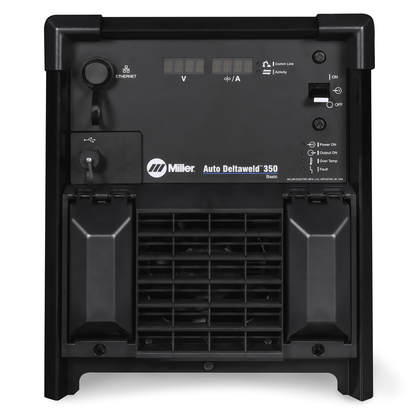

Miller Electric Auto DeltaweldTM 350 380/400V CE - 907893

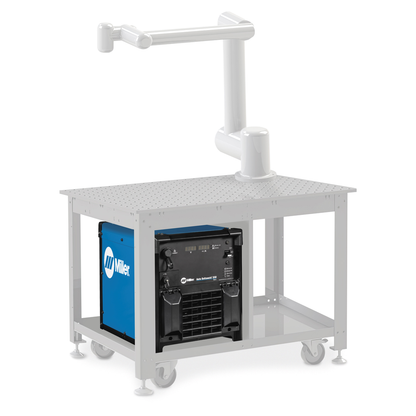

Designed for cobot integrators, Auto Deltaweld is your direct path to incorporate Miller welding technology into to your offerings.

• Process: MIG (GMAW), Flux-cored (FCAW), Metal-cored (GMAW-C), Accu-Pulse MIG (GMAW-P), High-deposition MIG (GMAW), RMD
• Rated Output: 350 A at 60% duty cycle
• Output Range: 20 400 A, 10 38 V
• Input Power: 380/400 V, three-phase, 50 Hz
• Wire Diameter Capacity: 0.023 5/64 in (0.6 2.0 mm)
• Wire Feed Speed: 50 780 ipm (1.3 19.8 m/min)
• Length: 29.15 in (740 mm)
• Width: 15.35 in (390 mm)
• Height: 18.54 in (471 mm)
• Weight: 115 lb (52.2 kg)
• Maximum Spool Capacity: 18 in (457 mm), 60 lb (27 kg)
• Country of Origin: United States
• Compliance: CE Certified, CSA Certified
