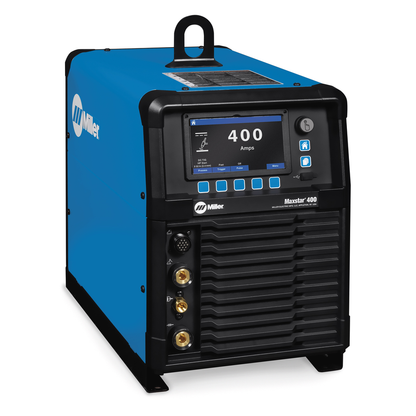

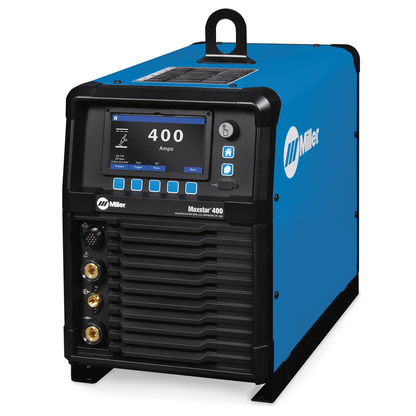

Miller Electric Maxstar 400 208-600 V - 907873

The Maxstar 400 Series is a powerful, compact power source capable of welding up to 5/8 in. material. High speed pulse control provides maximum productivity and weld quality while conserving energy compared to traditional welding machines.

Features

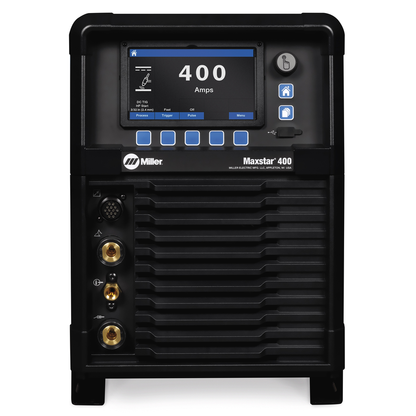

• Intuitive Interface LCD Display: Ensure proper machine setup and parameter selection with informative on-screen explanations and dynamic images.
• Locks and Limits: Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• Stick Features: Tailored arc control (DIG) allows the arc characteristics to be changed for specific applications and electrodes. Smooth running 7018 or stiffer, more penetrating 6010. Hot Start™ adaptive control provides positive arc starts without sticking.
• Auto-Line™ Technology: Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• DC TIG Features: Exceptionally smooth and precise arc for welding exotic materials. High-speed DC TIG pulse controls - Pulse frequency capable of pulsing 5000 pulses per second. Pulsing adds arc stability, reduces heat input and warpage and can increase travel speeds. Other parameters include peak amperage, peak time and background amperage.
• Blue Lightning™: High-frequency (HF) arc starter for non-contact arc initiation. Provides more consistent arc starts and greater reliability compared to traditional HF arc starters.
• QuietPulse™: QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.
• Pro-Set™ Feature: This feature eliminates the guesswork when setting weld parameters. Use Pro-Set when you want the speed, convenience and confidence of pre-set controls. Simply select the feature and adjust until Pro-Set appears on the display. The Pro-Set feature is available for Balance, Frequency, Pulse and DIG parameters.
• Program Memory: Allows easy naming, saving and recalling up to 99 custom weld programs.
• USB Port: Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.

• Amperage Range: 3 A - 400 A
• Input Voltage: 208 V - 600 V, 1- and 3-Phase
• Rated Output: 300 A at 32 V, 60% duty cycle
• Max Material Thickness: Steel 0.012 in. (0.3 mm) - 5/8 in. (15.9 mm)
• Max Open Circuit Voltage: 75 VDC
• Duty Cycle TIG: 400 A, 20%; 300 A, 60%; 250 A, 100%
• Duty Cycle Stick: 400 A, 20%; 300 A, 60%; 250 A, 100%
• Pulse Frequency: 0.1 - 5,000 pps
• Tungsten Size Range: 0.020 - 3/16 in. (0.05 - 4.8 mm)
• Stick Electrode Maximum Diameter: 1/4 in. (6.4 mm)
• Carbon Arc Gouging Maximum: 1/4 in. (6.4 mm)
• Generator Requirement: 20 kVA
• Weight: 126 lb (57 kg)
• Height: 24.1 in.
• Width: 13.9 in.
• Length: 24.3 in.
• Input Frequency: 50/60 Hz
• Input Phase: 1- and 3-Phase
• Weld Output: CC
• Current Type: DC
• Welding Processes: TIG (GTAW), Pulsed TIG (GTAW-P), Stick (SMAW), Air Carbon Arc (CAC-A)
• Material: Mild Steel, Stainless Steel, Steel
• Weldable Metals: Stainless Steel, Steel
• Color Display: 7 in. LCD
• Program Memory Capacity: 99 programs
• Start Type: Blue Lightning HF arc start, Lift-Arc DC arc start
• Cooling: Cooler Power Supply with Cooler-On-Demand
• Compliance: CSA Certified, CE (IEC 60974)
• Compliance Features: Locks and Limits to minimize deviation from WPS
• Country of Origin: United States
• Series: Maxstar
