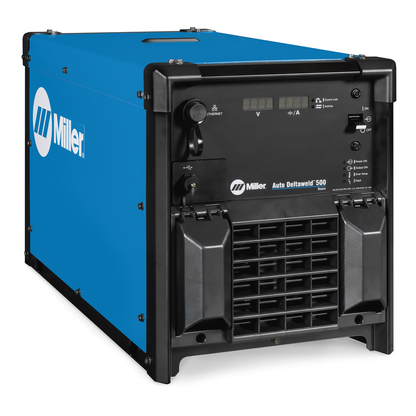

Miller Electric Auto DeltaweldTM 500 575V - 907864

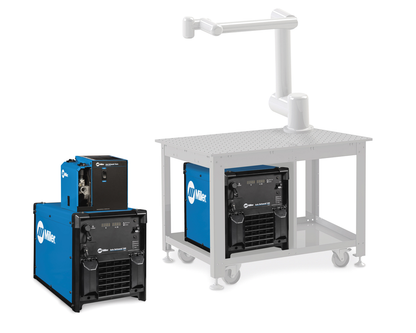

Designed for cobot integrators, Auto Deltaweld is your direct path to incorporate Miller welding technology into to your offerings.

Features

• Advanced Welding Processes: With just the push of a few buttons, unlock Miller® advanced welding processes that can boost productivity and quality.
• Wind Tunnel Technology™: Internal air flow that protects internal components from dirt, dust, debris— greatly improving reliability.
• Ethernet Communication Receptacle: Allows webpage display and access for weld set up, troubleshooting, and power supply configuration.
• ArcConnect™: Next generation communication to improve weld performance and allow point-of-use controls to be located at the feeder.
• Easy to integrate: Provides both Modbus® TCP and EtherNet/IP for direct communications to your Cobot.
• Easy to Use: Programming and operation is driven to the cobot pendant to allow for a single-point user interface.
• Fan-On-Demand™: Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through machine.
• Accu-Pulse™: Offers a more forgiving arc and compensates for variations in operator technique, providing a wider operating window.

• Input Voltage: 575 V
• Phase: Three-phase
• Frequency: 60 Hz
• Rated Output Current: 500 A
• Duty Cycle: 100%
• Output Range: 30 650 A, 10 44 V
• Auxiliary Power: 115 V, 15 A
• Length: 29.15 in
• Width: 15.35 in
• Height: 18.54 in
• Weight: 115 lb
• Communication Protocols: Modbus TCP, EtherNet/IP
• Wire Feed Speed: 50 780 ipm (1.3 19.8 m/min)
• Wire Diameter Capacity: 0.023 5/64 in (0.6 2.0 mm)
• Maximum Spool Capacity: 18 in (457 mm), 60 lb (27 kg)
• Input Welding Circuit Rating: 600 A at 60% duty cycle, 113 VDC
• Cooling System: Fan-On-Demand
• Internal Air Flow Technology: Wind Tunnel Technology
• Welding Processes: MIG (GMAW), Flux-cored (FCAW), Metal-cored (GMAW-C), Accu-Pulse MIG (GMAW-P)
• Country of Origin: United States
