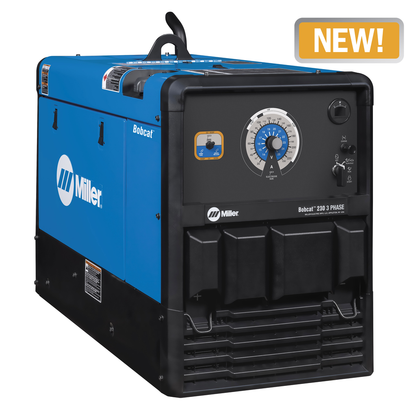

Miller Electric, 907842, Engine Driven Welder, 230 A, 11 Gallon Tank, Gasoline, 2300 RPM Idle Speed

Reliable, simple engine-driven welders great for stick welding and pivot irrigation systems with 480-volt three-phase power. Designed for maintenance/repair operations, farm, ranch and auxiliary power use.

Features

• With its intuitive design, the daily maintenance of our engine-driven welder is fast and easy.
• Easy arc starts and less spatter.
• Full auxiliary power at any setting.
• Digital interface speeds machine setup and makes it less complicated.
• Over 100 pounds lighter and 13 percent smaller than previous models.

Does Not Include

• Weld leads

• Amperage Range: 20 A - 230 A
• Voltage: 480 V
• Phase: 3-Phase
• Engine Idle Speed: 2300 RPM
• Engine Weld Speed: 3600 RPM
• Rated Output: CC/DC Stick 230 A at 29.2 V, 100% duty, CV/DC MIG/FCAW 230 A at 25.5 V, 100% duty
• Sound Rating: 73.1 dB @ max, 72.3 dB @ weld
• Fuel Tank Size: 11 Gallon
• Weld Output: CC/CV
• Weldable Metals: Stainless Steel, Steel
• Single-Phase Generator Peak Power: 10,000 W
• Single-Phase Generator Continuous Power: 8,500 W
• Three-Phase Generator Peak Power: 10,000 W
• Three-Phase Generator Continuous Power: 8,500 W
• Min DC Welding Amperage: 20 A
• Max DC Welding Amperage: 230 A
• Fuel Type: Gasoline
• Horsepower: 23.5 hp
• Engine Brand: Kohler
• Current Type: DC
• Country of Origin: United States
