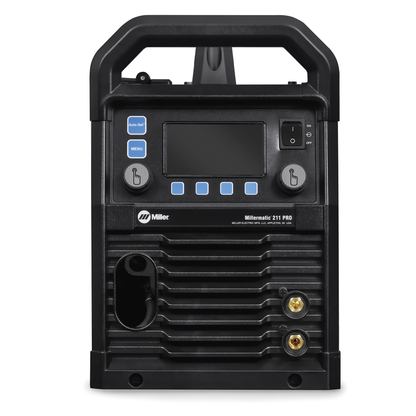

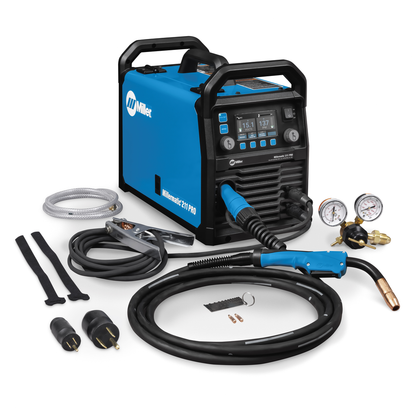

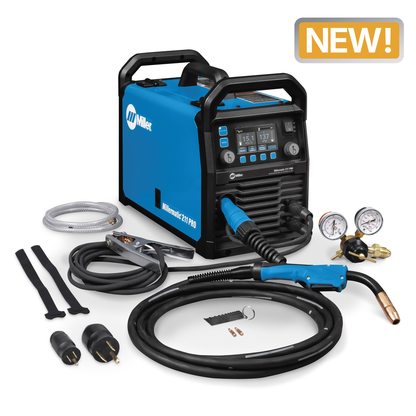

Miller Electric Millermatic 211 PRO - 907839

120/240V MIG and flux cored welder. Welds up to 3/8" steel and aluminum. Featuring advanced technologies like USB-enabled updates, Auto-Set™, higher duty cycle, 15’ MIG gun, and dinse connections—built to keep you welding all day, every day.

Features

• USB Port: Provides the ability to easily update software, back-up settings and transfer saved weld programs from one unit to the next.
• Inverter Technology: Inverter technology combines best-in-class arc characteristics with the portability of a 35-pound machine. The arc is extremely forgiving to variations in arc length and travel speeds.
• Auto-Set™ Technology: Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
• Smooth-Start™: This technology provides a smooth, spatter-free start. No more pop-gun starts or spatter to clean up.
• Auto Spool Gun Detect™: Automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.

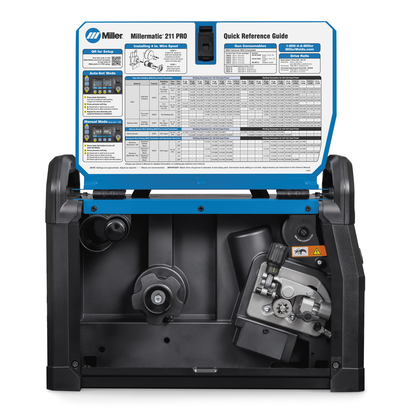

• Angled Drive System with Quick Select™ Drive Roll: Robust, angled wire drive with Quick Select™ drive roll. The Quick Select drive roll offers three grooves- two for different size solid wire and a third for flux-cored wire.
• Quick Select™ Drive Roll: Makes setup quicker by offering three grooves - two for different size solid wire and a third for flux-cored wire.
• Easy-to-understand interface: 7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time
• Generator Compatible: Will be able to operate and provide full output when powered by an engine-driven welder with 7000 Watt (7K) output or higher, such as a Miller Bobcat or Trailblazer. Limited output will occur when used with smaller generators.
• Multi-voltage plug (MVP™): Multi-voltage plug (MVP) allows connection to common 120 or 240 V power receptacles without the use of any tools— simply choose the plug that fits the receptacle and connect to the power cord.

• Input Voltage: 120/240 V
• Rated Output: 120 V: 110 A at 19.5 VDC, 60% duty cycle; 240 V: 160 A at 22.0 VDC, 60% duty cycle
• Amperage Range: 30 A - 230 A
• Max Open Circuit Voltage: 57 VDC
• Input Phase: 1-Phase
• Weight: 35 lb (15.9 kg)
• Dimensions: H 14.625 in (372 mm), W 9.75 in (248 mm), D 20 in (508 mm)
• Wire Diameter: Solid wire 0.024 0.035 in (0.6 0.9 mm), Flux-cored wire 0.030 0.035 in (0.8 0.9 mm)
• Max Wire Feed Speed: 15.2 m/min
• Min Wire Feed Speed: 1.5 m/min
• Duty Cycle: 60%
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Material Thickness Display: Aluminum 18 ga. (1.2 mm) - 3/8 in. (9.5 mm); Mild Steel 24 ga. (0.5 mm) - 3/8 in. (9.5 mm)
• Weld Thickness: Up to 3/8 in steel and aluminum
• Current Type: DC
• Input Amperage: 27.0 A (120 V), 28.9 A (240 V), single-phase, 50/60 Hz
• Processes: MIG (GMAW), Flux-cored (FCAW)
• Spool Size: 4-inch or 8-inch (102 mm or 203 mm)
• Series: Millermatic
• Country of Origin: United States
• Compliance: CSA Certified to Canadian and U.S. Standards
