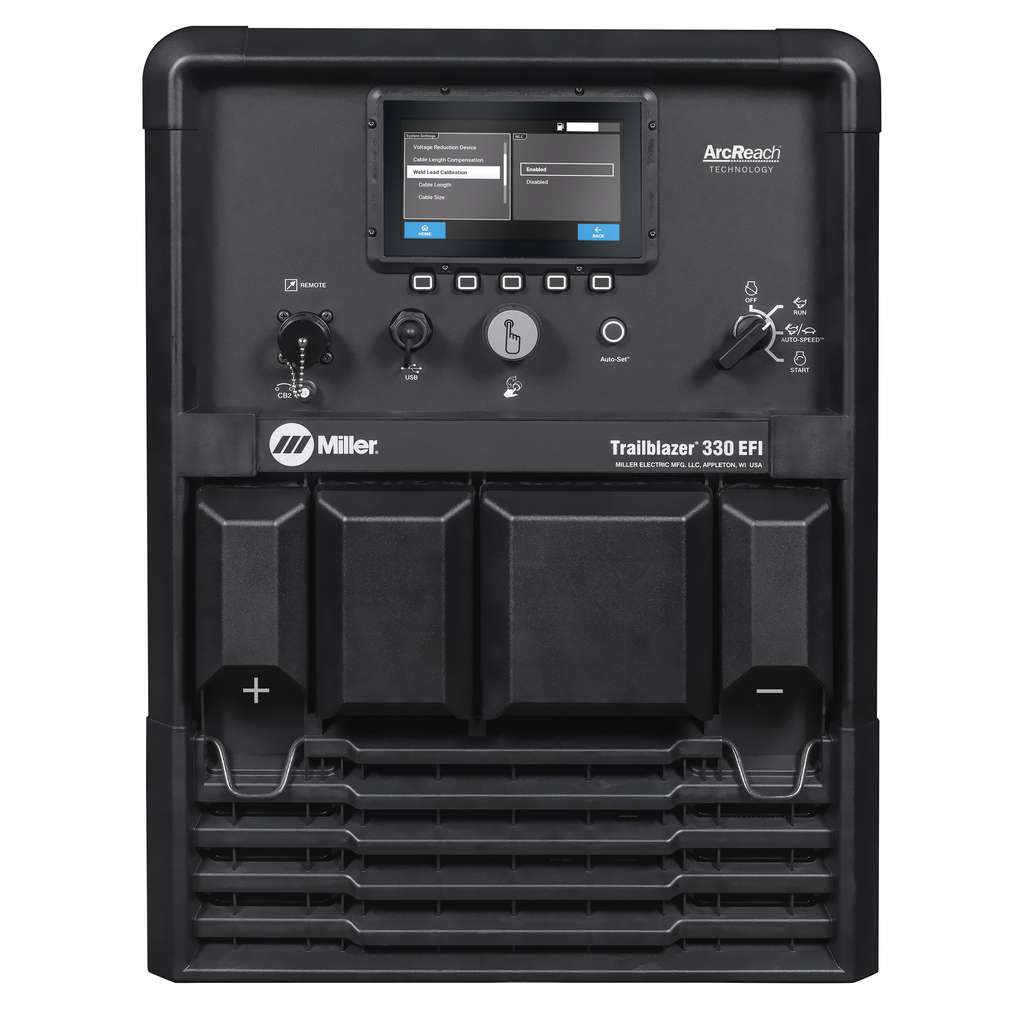

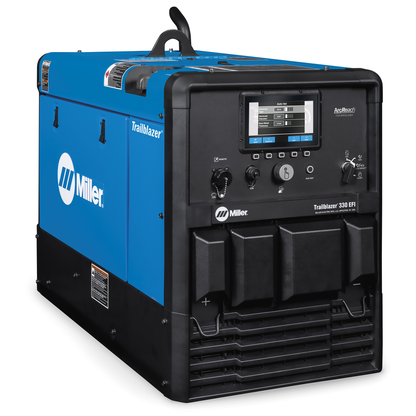

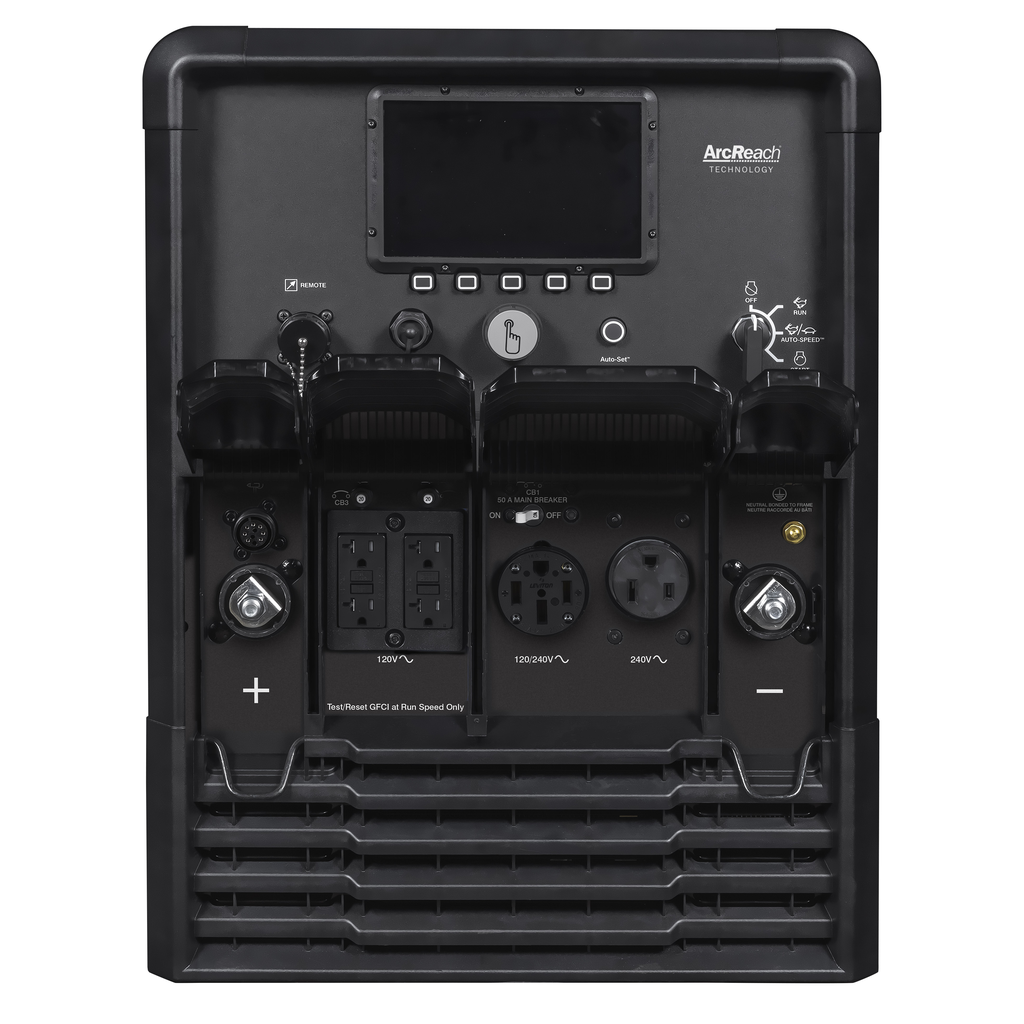

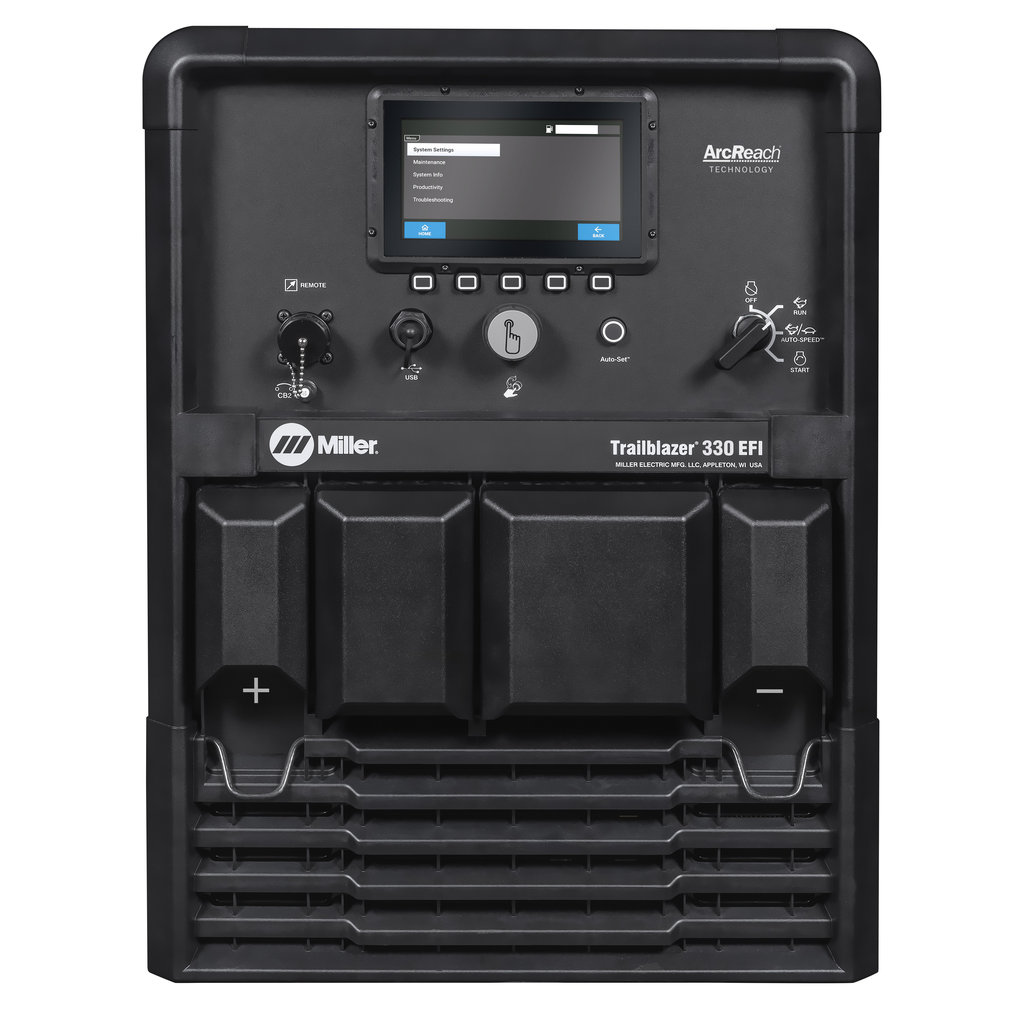

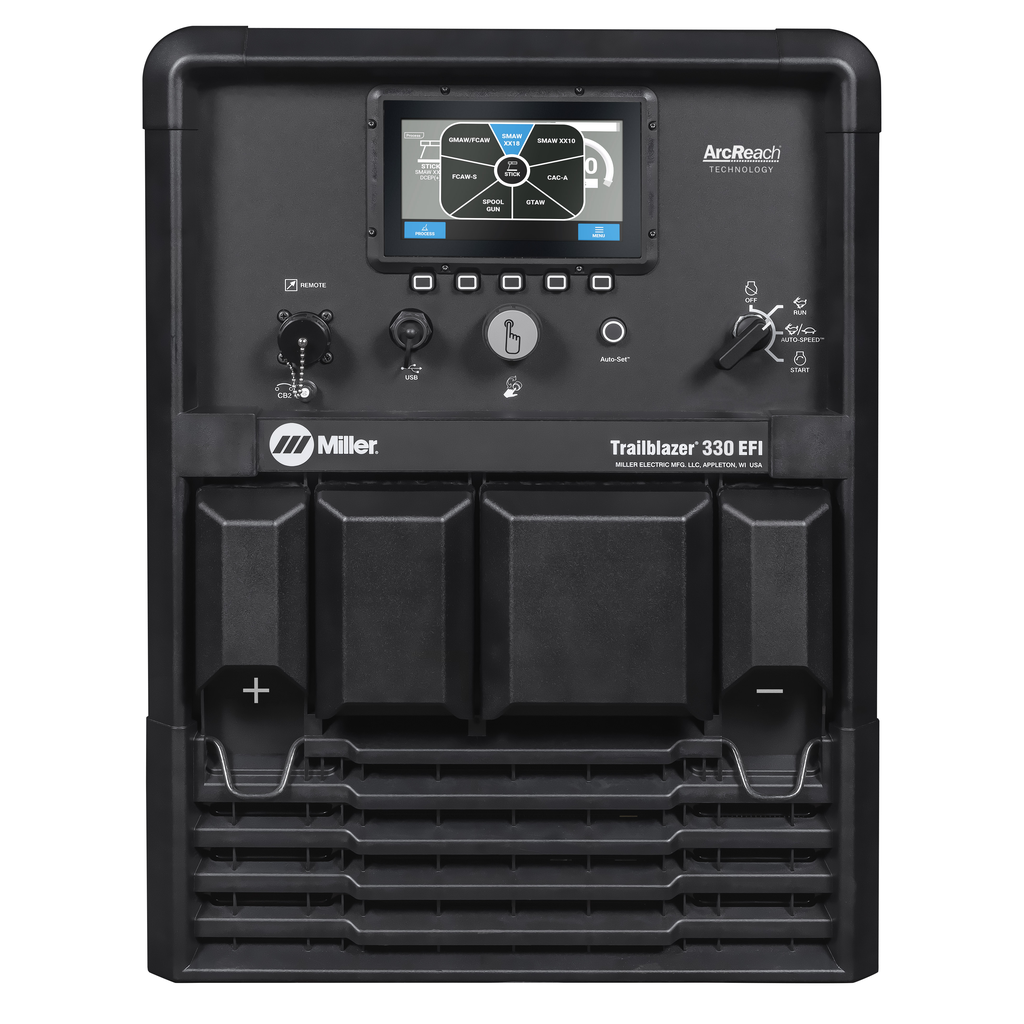

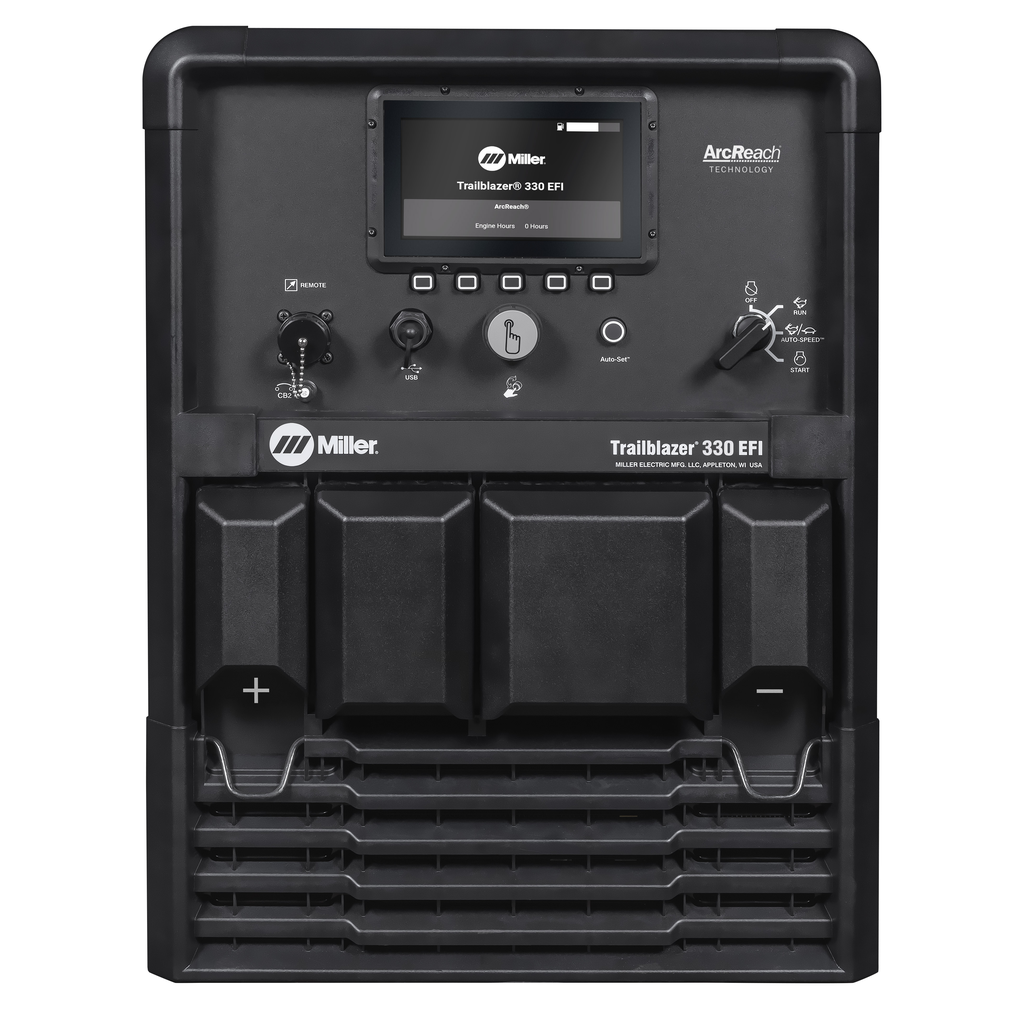

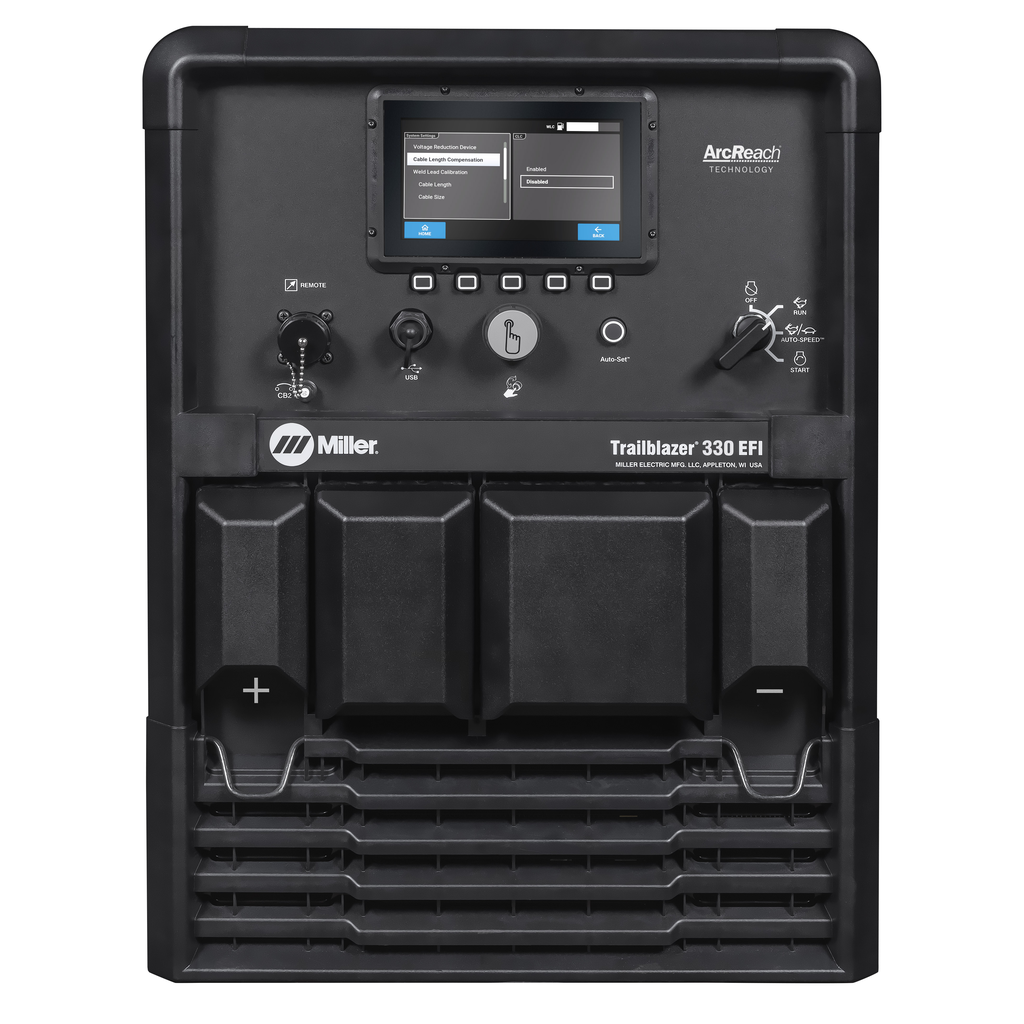

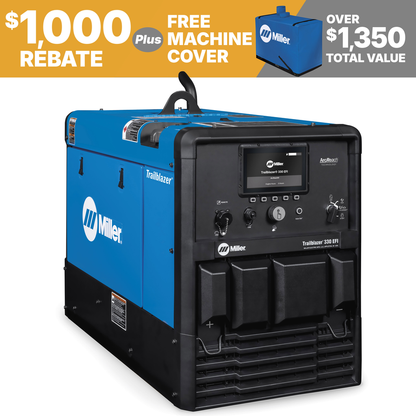

Miller Electric, 907832, Engine-Driven Welder, 330 A, 10500 W, Gasoline, Kohler

Reliable engine-driven welders with unbeatable arc performance, providing the smoothest, most stable arc in the industry. Trailblazer exclusive technologies — advanced Auto-Speed™ and optional Excel™ power — deliver superior runtimes, increase fuel efficiency, and improve engine-driven welder performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter jobsites.

Features

• Full auxiliary power at any setting.
• Easy arc starts and less spatter.
• Digital interface speeds machine setup and makes it less complicated.
• Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.
• Advanced Auto-Speed technology automatically adjusts engine speed to match weld and battery charge demands — reducing fuel consumption, maintenance costs and noise for a safer, more efficient jobsite.
• ArcReach technology uses existing weld cables to communicate process adjustment commands back to the engine-driven welder. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.
• With its intuitive design, the daily maintenance of our engine-driven welder is fast and easy.
• Over 80 pounds lighter and 13 percent smaller than previous models.
• QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.

Does Not Include

• Weld leads

• Amperage Range: 20 A - 330 A
• Rated Output: CC/DC Stick/TIG 330 A at 30 V, 100% duty cycle, CV/DC MIG/FCAW 325 A at 30.25 V, 100% duty cycle
• Max Open Circuit Voltage: 107 VDC
• Horsepower: 23 hp
• Fuel Tank Size: 11 Gallon
• Engine Idle Speed: 2400 RPM
• Engine Weld Speed: Advanced Auto-Speed technology: 2400-3600 RPM to match weld output
• Single-Phase Generator Continuous Power: 10500 W
• Single-Phase Generator Peak Power: 12000 W
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Current Type: DC
• Fuel Type: Gasoline
• Material: Engine Brand: Kohler
• Weld Output: CC / CV
• Rated Carbon Diameter: 1/4 in (6.4 mm)
• Country of Origin: United States
