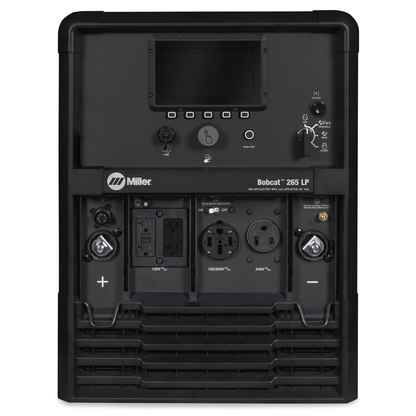

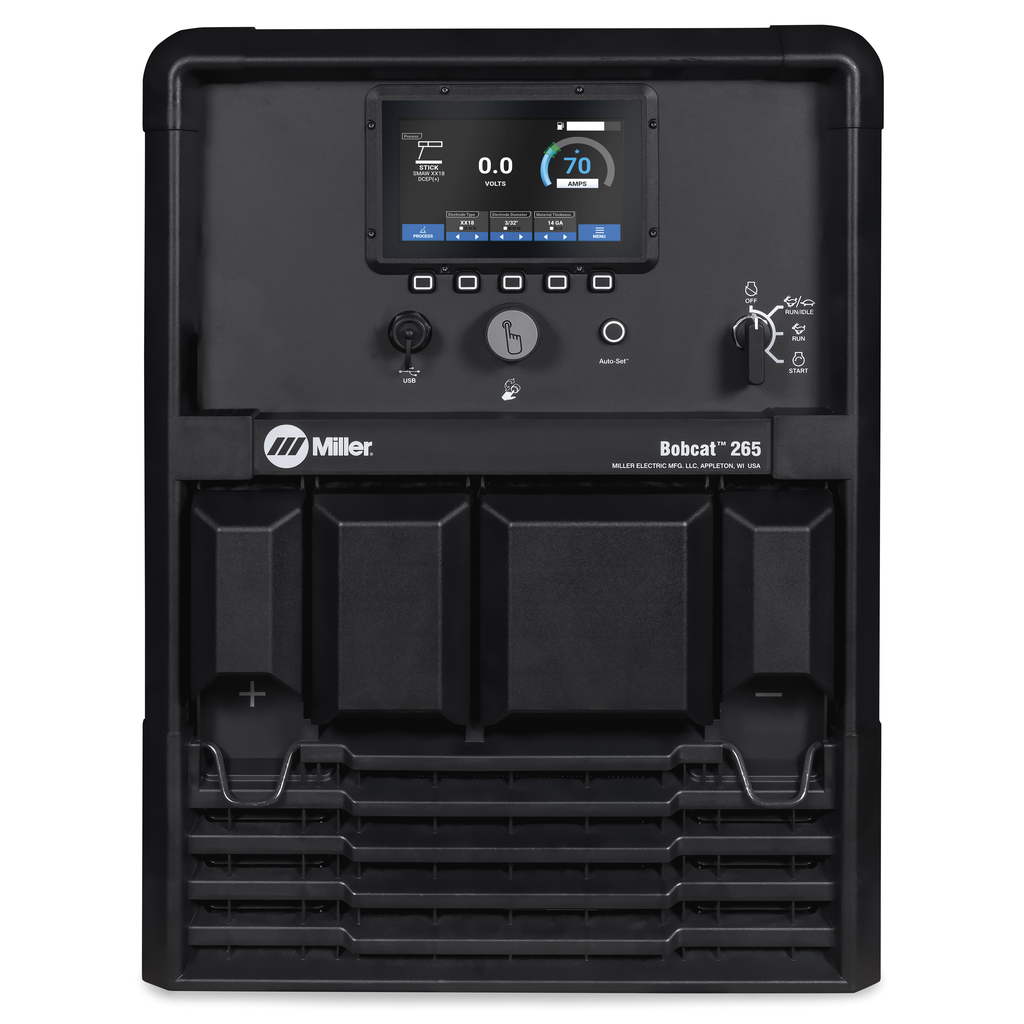

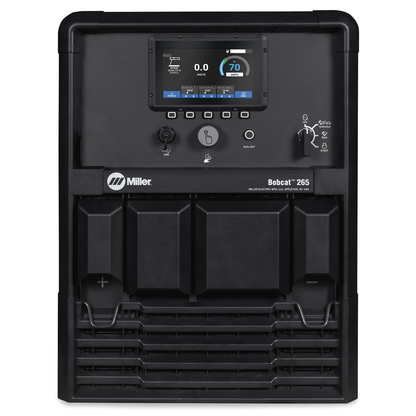

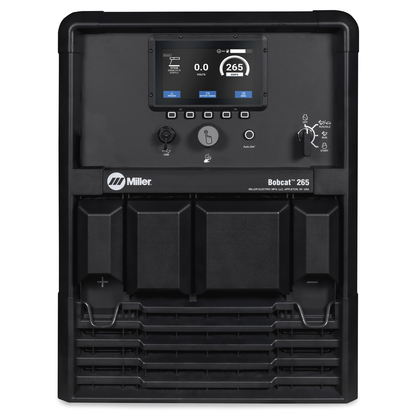

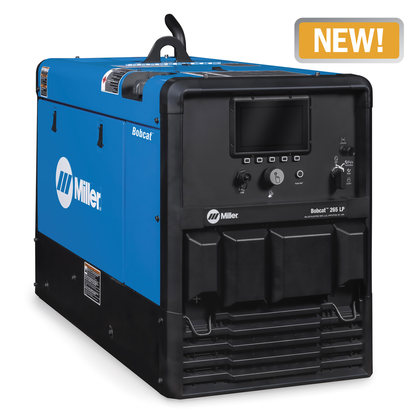

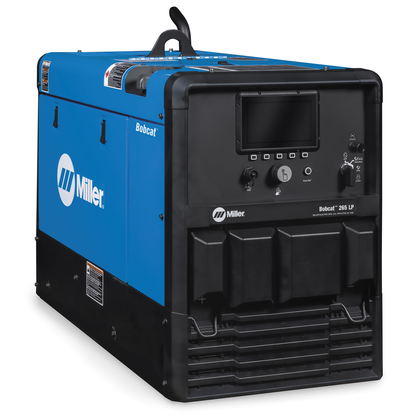

Miller Electric, 907827, Engine-Driven Welder, 20-265 A DC, 9500 W Continuous Power, LP Fuel

Reliable, easy to use and more capable engine-driven welder great for stick and flux-cored welding. Designed for maintenance/repair operations, construction, and auxiliary power use.

Features

• Digital interface speeds machine setup and makes it less complicated.
• Full auxiliary power at any setting.
• Over 100 pounds lighter and 13 percent smaller than previous models.
• Easy arc starts and less spatter.

Does Not Include

• Hose and LP Tank Mounting Assembly
• Weld leads

• Amperage Range: 20 A - 265 A
• Rated Output: CC/DC Stick/TIG 265 A at 27 V, 100% duty cycle, CV/DC MIG/FCAW 265 A at 27 V, 100% duty cycle
• Single-Phase Generator Continuous Power: 9500 W
• Single-Phase Generator Peak Power: 11000 W
• Engine Idle Speed: 2300 RPM
• Engine Weld Speed: 3600 RPM
• Horsepower: 21 hp
• Min DC Welding Amperage: 20 A
• Max DC Welding Amperage: 265 A
• Current Type: DC
• Rated Carbon Diameter: 3/16 in (4.8 mm)
• Fuel Type: LP
• Weight: 382 lb
• Length: 37.06 in
• Width: 20.13 in
• Height: 26.5 in
• Engine Brand: Kohler
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Sound Rating: 64 dB @ idle, 73 dB @ weld
• Compressed Air: No
• Country of Origin: United States
• Weld Output: CC / CV
• Type: Engine Driven Welder
