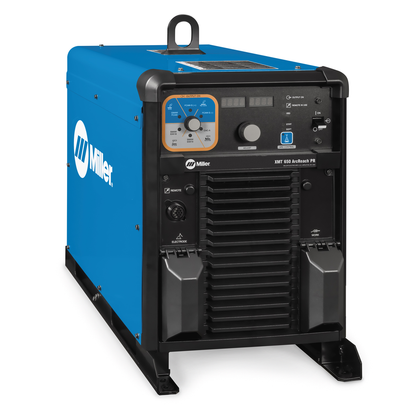

Miller Electric, 907822, Multiprocess Welder, 650 A at 44 VDC, 15 - 815 A; 3-Phase, 460 V, DC

The XMT® 650 ArcReach® with Polarity Reversing power source is streamlined and simplified to reduce setup time and potential weld defects. Process changeover eliminates the need for swapping cables. Maximize productivity in the fabrication shop and in the field. The robust design withstands harsh environments common in the field. It is ideal for structural steel fabrication, general construction, and shipbuilding.

Features

• ArcReach capabilities increase jobsite productivity and efficiency by eliminating the time spent tracing weld cables hundreds of feet back to the power source because weld operators can make voltage adjustments at the ArcReach wire feeder or remote.

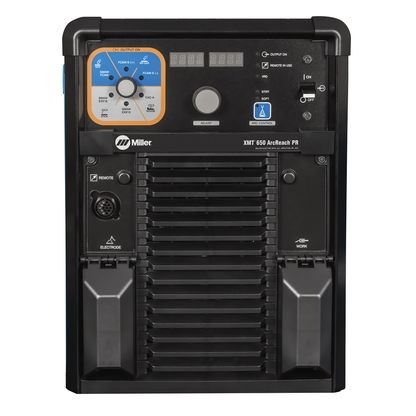

• Front panel process selections are illuminated with an LED that identifies the active process. This enables the selected weld process to be seen at a distance from the power source.
• The XMT 650 ArcReach with Polarity Reversing power source is streamlined and simplified to reduce setup time and potential weld defects. Process changeover eliminates the need for swapping cables. The robust design withstands harsh environments common in the field.
• Provides a quick, direct connection to Miller® wire feeders. Capable of remote voltage control.
• GMAW / FCAW for simplified setup and optimized arc performance, Solid and flux-cored wires with gas -Flux-cored (self-shielded).
• Enables unit to automatically use remote control if connected to remote control receptacle.
• Optimized stick position for better gouging performance.

• Voltage: 460 V
• Frequency: 60 Hz
• Weld Output: 15 - 815 A, 10 - 65 V
• Rated Output: 650 A at 44 VDC, 100% duty cycle
• Input Phase: 3-Phase
• Amperage Range: 10 A - 815 A
• Current Type: DC
• Welding Mode: CC/CV
• Max Open Circuit Voltage (VDC): 87
• Weldable Metals: Aluminum, Specialty Metals, Stainless Steel, Steel
• Country of Origin: United States
