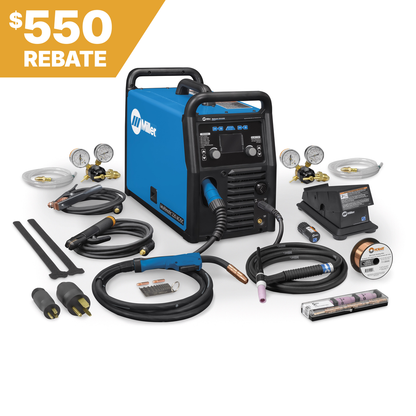

Miller Electric Multimatic 220 AC/DC w/ Wireless Foot Pedal - 907757002

The Multimatic 220 AC/DC is the only machine in its class that offers users the ability to switch welding gas, polarity and welding process automatically while recalling the last MIG or TIG settings.

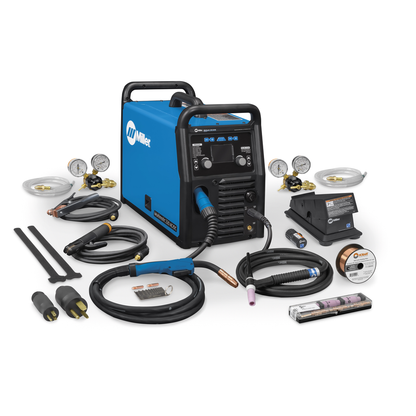

Includes

• Material thickness gauge #229895
• Two contact tips for .030 in (0.8 mm) wire
• 6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V
• Hook-and-loop cord wraps
• AK2C TIG torch accessory kit
• 10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector
• 13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector
• Multimatic® 220 AC/DC
• 12.5 ft (3.8 m) Weldcraft™ A-150 (WP-17) TIG torch with 25mm Dinse-style connector
• Two Argon and AR/CO2 mix regulator/flow gauge with hoses
• Spool of Hobart® .030 in (0.8 mm) solid wire
• 10 ft MDX™-100 MIG Welding Gun
• Quick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wire
• Wireless Foot Control System (301580)

Does Not Include

• Shielding gas
• Safety Equipment
• Spool gun for aluminum MIG welding

Features

• Take on more projects with one machine that has MIG, Stick, AC and DC TIG.
• Allows for connection to 120- or 240-volt receptacles without tools. Choose the plug that fits the receptacle and connect it to the power cord.
• Automatically determines the polarity. MIG gun and TIG torch can stay connected at the same time. Automatically switches to the right process. Just hit the trigger or the foot control and the machine automatically changes. Automatically recalls the settings from the last process used.
• Eliminates the guesswork when setting weld parameters. Simply adjust control until Pro-Set™ appears on the display and the number turns blue. Available for AC Balance and Frequency (TIG), DC Pulse (TIG), and DIG (Stick).
• The Multimatic 220 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator. Limited output will occur when used with smaller generators.
• Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
• Provides High-Frequency, non-contact arc starting to eliminate tungsten and material contamination time after time.
• The Multimatic® 220 AC/DC can go where the work is, plus the added convenience of one machine versus two or more.
• The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.

• Input Voltage: 110-120 V, 220-240 V
• Amperage Range: 30 A - 230 A
• Max Open Circuit Voltage: 46 VDC
• Wire Feed Speed: 1.5 IPM - 600 IPM (0.038 m/min - 15.2 m/min)
• Welding Mode: CC/CV, AC/DC
• Length: 21.5 in.
• Height: 17.5 in.
• Width: 11.25 in.
• Weight: 56 lb
• Spool Size: 8 in.
• Input Phase: 1-Phase
• Input Frequency: 50/60 Hz
• Material Thickness Range: Mild Steel 24 ga. - 3/8 in., Aluminum 24 ga. - 1/4 in.
• Wire Size Compatibility: .024 in (0.6 mm), .030/.035 in (0.8/0.9 mm)
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Wire Type Compatibility: Solid, Flux Cored
• Connector Type: 25 mm Dinse-style
• Country of Origin: United States
