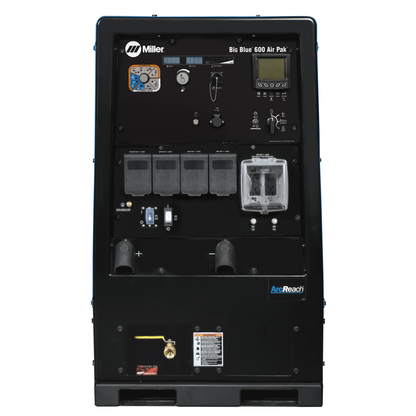

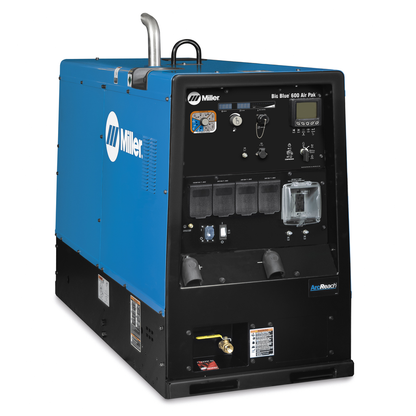

Miller Electric, 907750, Engine Driven Welder, Diesel, 600 A Max DC Amperage, 25 gal Fuel Tank, 15000 W Peak Power

For field-based work that requires single-operator power for welding, carbon arc gouging, auxiliary power, or running an air compressor to perform critical repair and maintenance functions, the Big Blue 600 Air Pak is the most reliable, versatile machine available to keep your worksite equipment fully functional and make you more productive throughout the day.

Features

• More arc-on time, and reduced exposure to slip, trip, and fall hazards can be realized using ArcReach because less time is spent going back to the welding power supply to set process and arc amperage or voltage.
• Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion. Infinite arc control available in the Stick and Wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications. Lift-Arc™ TIG provides arc starting that minimizes the risk of electrode/work contamination without the need for high frequency.
• The cleanest, greenest diesel power available. DEUTZ T4F models utilize diesel oxidation catalyst (DOC) technology to keep the air clean with NO exhaust after-treatment maintenance.
• Ultra-reliable industrial rotary screw air compressor. 30,000-hour life expectancy. Independent on/off control for applications not requiring compressed air — allows greater fuel savings and longer compressor service intervals.
• Take charge of your field preheat and bakeout applications up to 600 degrees Fahrenheit (315°C). This system uses induction heating to generate heat in workpieces, so welders can do their own preheating quickly and safely. A part of the ArcReach technology platform, the ArcReach Heater is an accessory for select ArcReach welding power sources.
• Output contactor control, automatic idle, thermal overload protection, and 120-volt engine block heater.
• ArcReach technology uses existing weld cables to communicate process adjustment commands back to the engine-driven welder. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.
• Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostics and machine statistics.
• Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.
• Electronic engine display simultaneously displays fuel level, engine hours, coolant temperature, oil pressure, battery volts, air pressure and engine RPMs. Also tracks oil change intervals and displays engine diagnostics for quick and easy servicing.
• Cross Platform Compatible. The same ArcReach accessories that work on engine-driven equipment can also be used on select ArcReach-equipped XMT®, Dimension™, and PipeWorx 350 FieldPro™ power sources. Reverse Compatible. ArcReach-equipped power sources work with non-ArcReach accessories; however, the complete ArcReach benefit is only realized with the ArcReach system.

Does Not Include

• Weld leads

• Three-Phase Generator Peak Power: 27000 W
• Three-Phase Generator Continuous Power: 20000 W
• Single-Phase Generator Peak Power: 15000 W
• Single-Phase Generator Continuous Power: 12000 W
• Rated Output: 500 A at 40 V (100% duty cycle), 575 A at 43 V (100% duty cycle), 600 A at 44 V (60% duty cycle)
• Amperage Range: 20 A - 600 A
• Min DC Welding Amperage: 20 A
• Max DC Welding Amperage: 600 A
• Max Open Circuit Voltage: 92 VDC
• Compressor Duty Cycle: 100%
• Compressor Working Pressure: 100 psig
• Compressor Free Air Delivery: 60 cfm (1.70 m3/min), Idle: 40 cfm (1.13 m3/min)
• Engine Idle Speed: 1350 RPM
• Engine Weld Speed: 1800 RPM
• Horsepower: 65.7 hp
• Voltage: 120 V (engine block heater)
• Fuel Tank Size: 25 gal.
• Fuel Type: Diesel
• Engine Brand: Deutz
• Engine Type: Deutz T4F Diesel
• Engine Compliance: T4F
• Cold Weather Starting Aids: Engine Block Heater, Glow Plugs
• Compressor Brand: Ingersoll Rand Screw-Type
• Compressor Type: Rotary Screw Air Compressor
• Compressor Automatic Shutdown: Oil temperature
• Rated Carbon Diameter: 3/8 in (9.5 mm)
• Current Type: DC
• Max Temperature: 600 F (315 C)
• Compressed Air: Yes
• Weld Output: CC / CV
• Sound Rating: Idle: 71.3 dB (96.1 Lwa), Weld: 78.9 dB (103.7 Lwa)
• Weight: 2040 lbs
• Length: 69.5 in.
• Width: 28.5 in.
• Height: 46 in.
• Weldable Metals: Stainless Steel, Steel
• Country of Origin: United States
