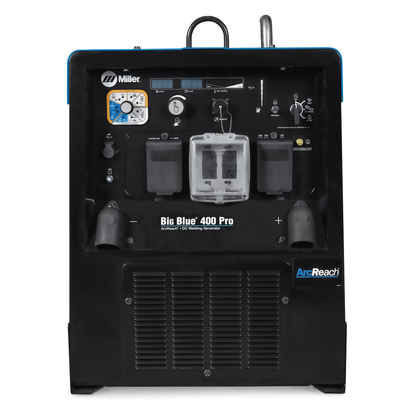

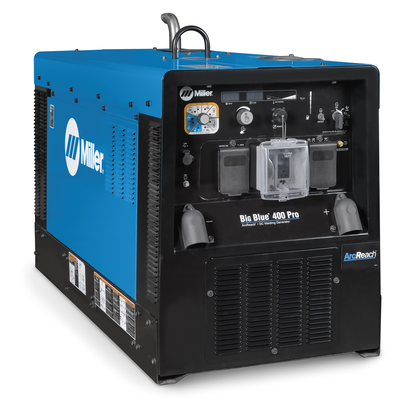

Miller Electric, 907732001, Engine Driven Welder, 400 A; Diesel; 11.5 gal Fuel Tank; 20.2 hp

Designed with the professional in mind, the Big Blue 400 Pro is the best for ease of use, reliability and fuel economy.

Features

• Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion. Infinite arc control available in the Stick and Wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications. Lift-Arc™ TIG provides arc starting that minimizes the risk of electrode/work contamination without the need for high frequency.
• Used in industrial applications around the world, the V1505 is designed to run 10,000 hours before major overhaul. Backed by worldwide support and service.

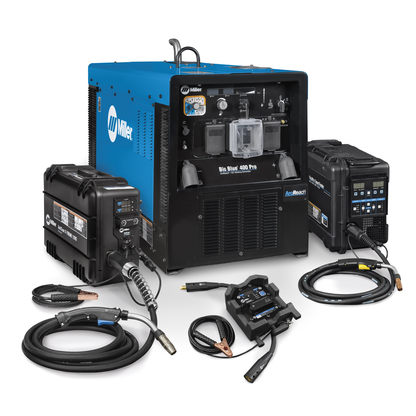

• Cross Platform Compatible. The same ArcReach accessories that work on engine-driven equipment can also be used on select ArcReach-equipped XMT®, Dimension™, and PipeWorx 350 FieldPro™ power sources. Reverse Compatible. ArcReach-equipped power sources work with non-ArcReach accessories; however, the complete ArcReach benefit is only realized with the ArcReach system.
• While under control of an ArcReach accessory, process and amperage/voltage adjustments are locked out at the power source, preventing accidental changes by personnel other than the welding operator.
• Depending on polarity and which ArcReach accessory is connected, the system automatically detects and switches to the correct process - reducing the need to access the power source.
• Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.
• Take charge of your field preheat and bakeout applications up to 600 degrees Fahrenheit (315°C). This system uses induction heating to generate heat in workpieces, so welders can do their own preheating quickly and safely. A part of the ArcReach technology platform, the ArcReach Heater is an accessory for select ArcReach welding power sources.
• Output contactor control, automatic idle, thermal overload protection, and 120-volt engine block heater.
• Quickly upload the latest software and download machine log files to retrieve in-depth information such as diagnostics and machine statistics.
• More arc-on time, and reduced exposure to slip, trip, and fall hazards can be realized using ArcReach because less time is spent going back to the welding power supply to set process and arc amperage or voltage.
• ArcReach technology uses existing weld cables to communicate process adjustment commands back to the engine-driven welder. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.

Does Not Include

• Weld leads

• Amperage Range: 20 A - 400 A
• Max DC Welding Amperage: 400 A
• Temperature Range: up to 600 F (315 C)
• Horsepower: 20.2 hp
• Max Open Circuit Voltage: 85 VDC
• Weld Output: CC / CV
• Current Type: DC
• Rated Carbon Diameter: 3/16 in (4.8 mm)
• Engine Weld Speed: 1800 RPM
• Engine Idle Speed: 1500 RPM
• Single-Phase Generator Continuous Power: 10000 W
• Single-Phase Generator Peak Power: 12000 W
• Fuel Type: Diesel
• Fuel Tank Size: 11.5 Gallons
• Cold Weather Starting Aids: Engine Block Heater, Glow Plugs
• Height: 32 in
• Length: 56 in
• Width: 26.25 in
• Weight: 950 lbs
• Engine Brand: Kubota
• Engine Compliance: T4F
• Weldable Metals: Stainless Steel, Steel
• Country of Origin: United States
