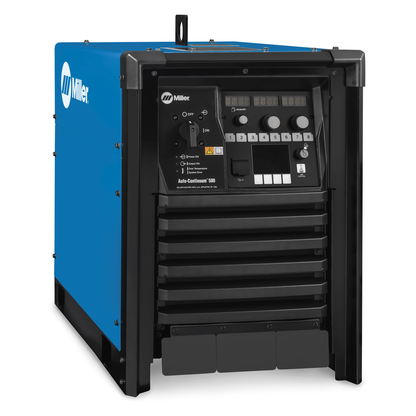

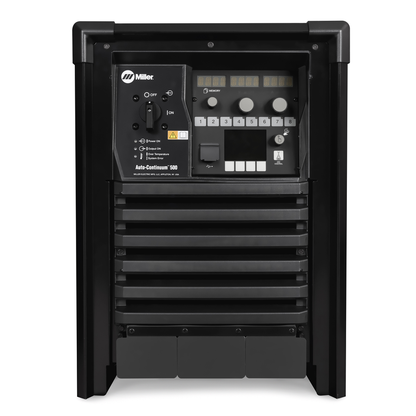

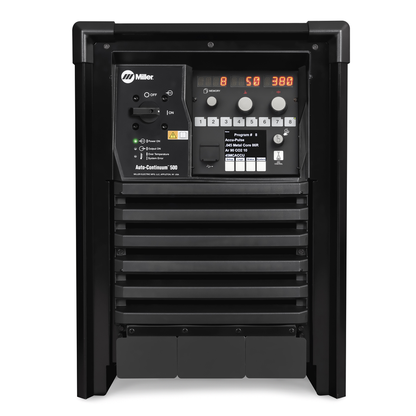

Miller Electric Auto-ContinuumTM 500 w/Aux Power - 907659

Next generation automation welding solution delivers advanced arc performance to improve throughput and weld quality.

Features

• Adaptive Arc: The adaptive arcs of Versa-Pulse™ and Accu-Pulse® instantly make adjustments to handle weld tacks, large gaps and inconsistent parts. The result is higher quality welds and fewer weld defects.
• Advanced Welding Processes: With just the push of a few buttons, unlock Miller® advanced welding processes that can boost productivity and quality.
• Flexibility: Fleet standardization. Auto-Continuum can be used for both automation and hand-held applications. Adaptable to variety of fixed and flexible automation configurations and requirements. Welding Intelligence™. Improve your welding operations by increasing productivity, improving quality and managing costs with Insight Core (standard) and Insight Centerpoint (optional) welding information management systems. Easily add new processes and custom programs via the USB interface. Parameter flexibility allows the system to be set for voltage and wire feed speed control, or for voltage and amperage control.
• Auto-Line™ Technology: Allows hookup to either single-phase or three-phase primary input voltage, 208-600 volts dependent on the machine, with no manual linking, providing convenience in any job setting. An ideal solution for dirty or unreliable input power.
• More power, better reliability: Produces more power at higher duty cycles and temperature ratings than competitive models. More power maximizes reliability tin demanding automation applications by keeping all internal components operating cooler regardless of the jobs to be done. More power ensures better welding results regardless of application or weld process.

• Amperage: 500A
• Rated Output Voltage: 39 VDC
• Duty Cycle: 100%
• Output Range: 20 600 A, 10 44 V
• Input Voltage: 230 575 V, 3-Phase, 50/60 Hz
• Power: 19,500 watts
• Height: 27.2 in
• Width: 17.5 in
• Length: 28.2 in
• Weight: 150 lb (69 kg)
• Wire Feed Speed: 50 1,000 ipm (1.27 25.4 m/min)
• Wire Diameter Capacity: 0.035 5/64 in (0.9 2.0 mm)
• Wire Drive Motor Weight: 16.5 lb (7.5 kg)
• Wire Drive Motor Dimensions: H: 8.75 in, W: 10 in, D: 10 in
• Open-Circuit Voltage: 72 VDC
• Input Phase: 3-Phase
• Country of Origin: United States
• Series: ContinuumTM
• Compliance: CSA Certified (Canada and U.S.)
