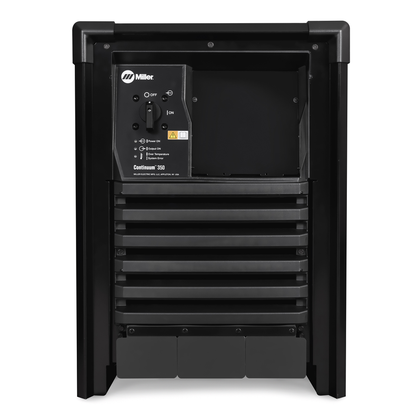

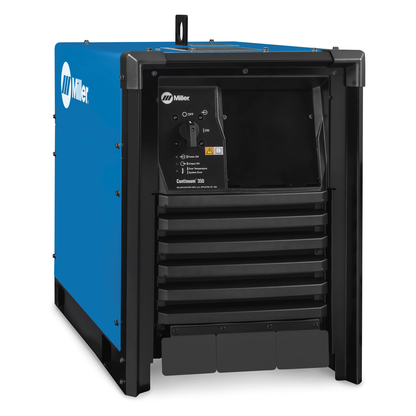

Miller Electric, 907637, MIG Welder, ContinuumTM Series, 28.13 in L, 17.5 in W, 27.19 in H

New generation of advanced industrial welding solutions improves productivity through weld quality, ease of use and system flexibility.

Features

• LCD Display: New user interface makes the system easy to set up and adjust with minimal training. Shows complete words, graphics and numeric values.
• Tool-less lockable rotatable drive: Allows operator to rotate the drive, eliminate severe bends in the wire feeding path Extends gun-liner life Aids in feeding difficult wires
• Balanced-pressure drive-roll design and tensioners: Feed wire in its truest and straightest form for better feedability, resulting in better welding performance.
• All-new power source design: Smart and powerful digital design has the fast response needed to deliver the most stable welding performance for better welding results. Developed as a platform to meet current and future needs with integrated expansion capabilities.
• All-new feeder design: Faster motor response provides the best arc starts with the least amount of spatter. Tru-Feed ™ Technology provides precise feeding operation for stable arc performance.
• Easy to set up and adjust with minimal training: 8 program/memory buttons USB functionality for updates, cloning and more Browser-based connection to view and adjust machine parameters, configure machine settings and ability to set locks and limits
• Superior Arc Performance: Improved Accu-Pulse provides less spatter, better arc control and less heat input. Very forgiving with changes in stick-out Improved MIG performance. Consistently smooth arc starts reduce spatter Improved RMD, designed for thin materials and gap filling with very low spatter New High-Deposition MIG process typically used for thicker material and larger welds. Provides lower heat input and higher deposition rates than standard spray transfer

• Input Voltage: 230-575 V, 3-phase, 50/60 Hz
• Output Range: 20-400 A
• Rated Output Amperage: 350 A at 100% duty cycle
• Output Voltage Range: 10-44 V
• Max Open-Circuit Voltage: 71 VDC
• Duty Cycle: 100%
• Height: 27.19 in
• Width: 17.5 in
• Length: 28.13 in
• Weight: 127 lb
• Maximum Spool Size: 18 in (457 mm)
• Maximum Spool Weight: 60 lb (27 kg)
• Feeder Wire Feed Speed: 50-1,000 ipm (1.27-25.4 m/min)
• Wire Diameter Capacity: .035-5/64 in (0.9-2.0 mm)
• Feeder Weight Single: 43 lb (19.5 kg)
• Feeder Weight Dual: 61.5 lb (27.9 kg)
• Includes Auxiliary Power: Yes
• Process Types: Accu-Pulse, Versa-Pulse, RMD, MIG (GMAW), High-deposition MIG, Flux-cored (FCAW), Air carbon arc (CAC-A)
• Country of Origin: United States
• Series: ContinuumTM
• Compliance: CSA Certified to Canadian and U.S. standards
