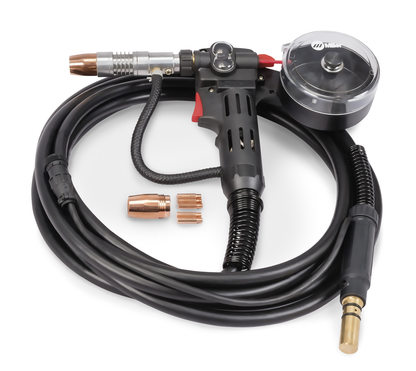

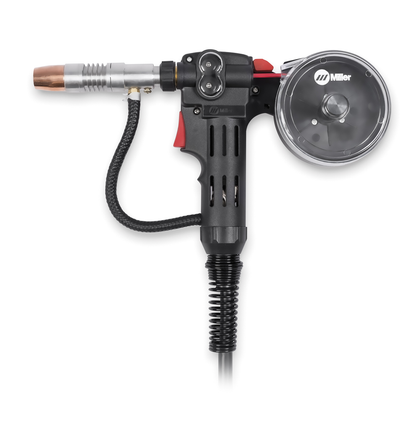

Miller Electric, 301272, Spool Gun, 20 ft Cable, 3 in Width, 11.5 in Height, Aluminum Wire Compatible

Reliable and economical direct connect Spoolmate™ 150 spool gun provides 20 ft of cable reach and accessibility. Provides smooth feeding of 4000 and 5000 series aluminum wire.

Features

• 20-foot Direct Connect Cable===Heavy-duty strain relief provides extended reach and accessibility to your work.
• Versatile Wire Options===Weld both 4000 and 5000 series aluminum wire with the Spoolmate 150.
• Spool Visibility===The clear spool cover provides visibility to the wire so you can see how much is left on the spool.
• Durable Parts===The barrel, drive motor and cast aluminum drive box are heavy-duty.
• Consistent Wire Feeding===The dual v-knurled drive rolls consistently feed wire through the gun.

• Welding Current Rating: 150 A at 60% duty cycle
• Wire Diameter Capacity: .030 .035 in (0.8 0.9 mm)
• Wire Feed Speed: 115 715 ipm (2.9 18.1 m/min)
• Maximum Spool Size: 4 in (102 mm)
• Cable Length: 20 ft
• Drive Roll: Dual V-knurled
• Width: 3 in
• Height: 11.5 in
• Length: 12.5 in
• Weight: 7.33 lbs
• Material: Cast aluminum (drive box)
• Country of Origin: China
