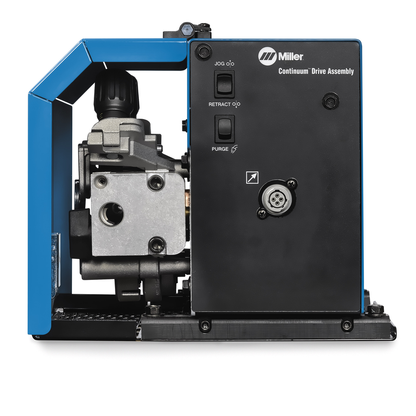

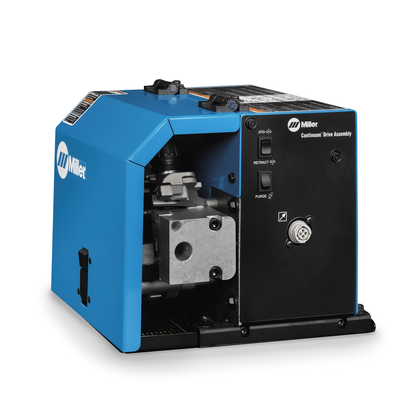

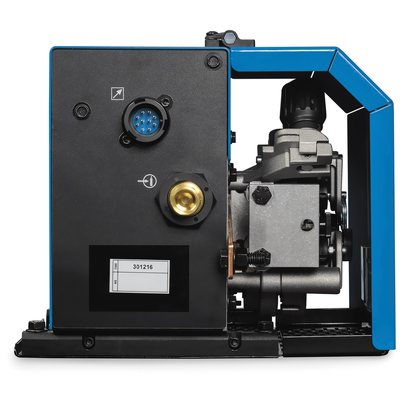

Miller Electric, 301216, Wire Feeder, ContinuumTM, Tool-less Installation, Balanced-Pressure Drive-Roll Design

Advanced, industrial wire feeder with Tru-Feed™ technology improves productivity through weld quality, ease of use and system flexibility. Designed for use with a Continuum power source.

Features

• Drive rolls and guides: Common with other Miller industrial feeders (use existing, not new parts). Inlet guide installation is tool-less.
• Balanced-pressure drive-roll design and tensioners: Feed wire in its truest and straightest form for better feedability, resulting in better welding performance.
• Spring-loaded Accu-Mate™ connection: Aligns gun perfectly in the drive-roll carrier — preventing the gun from being pulled loose and providing consistent wire feeding.
• New low-inertia motor: Provides faster response for the best arc starts with the least amount of spatter.
• Quick-change dual-bearing drive rolls: Provide more consistent wire feeding.
• Tool-less lockable rotatable drive: Allows operator to rotate the drive, eliminate severe bends in the wire feeding path Extends gun-liner life Aids in feeding difficult wires

• Wire Feed Speed: 50 1,000 ipm (1.27 25.4 m/min)
• Input Welding Circuit Rating: 500 A at 100% duty cycle
• Input Power: 50 VDC
• Maximum Spool Size Capacity: 18 in, 60 lb (457 mm, 27 kg)
• Wire Diameter Capacity: 0.035 5/64 in (0.9 2.0 mm)
• Weight: 43 lb (19.5 kg) single, 61.5 lb (27.9 kg) dual
• Width: 16.31 in (414 mm) single, 17 in (432 mm) dual
• Height: 13.81 in (351 mm)
• Depth: 29.69 in (754 mm)
• Series: ContinuumTM
• Country of Origin: United States
