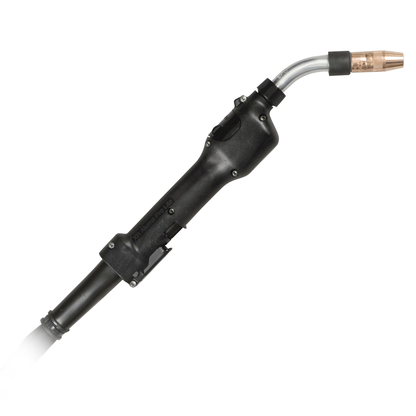

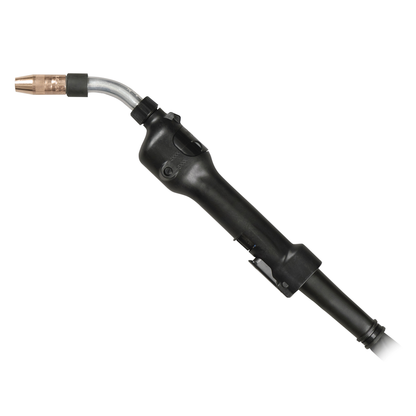

Miller Electric, 300948, Push-Pull Gun, 15 in Length, Lightweight, 360-Degree Rotatable Head

Lightest weight gooseneck-style gun features rear trigger that allows access to hard-to-reach welds.

Features

• Heavy-duty Construction===All internal components are designed to provide long lasting performance and feeding precision.
• Best Feeding Performance===Dual wire tension settings for 4000- or 5000 series aluminum to ensure the very best wire feeding performance and arc consistency.
• Replaceable Feed Cable Liner===Designed to provide consistent arc performance. It also reduces parts cost and service time by allowing a simple means of removing and replacing liner and not the complete feed cable.
• Multiple Configurations===Threaded quick-change 360-degree rotatable head tubes are available in different bends and lengths for even those hard-to-reach welds. Over 30 different styles to fit your application and welder’s preference.

• Amperage: 175A at 60% duty cycle
• Wire Diameter Capacity: 0.030 0.047 in (0.8 1.2 mm) aluminum wire
• Wire Feed Speed: 70 900 ipm (1.8 23 m/min)
• Length: 15 in
• Height: 4 in
• Width: 1.9 in
• Weight: 2 lb (0.9 kg)
• Cable Length: 25 ft (7.6 m)
• Head Tube: Threaded quick-change 360-degree rotatable, multiple bends and lengths
• Trigger Type: Rear trigger
• Cooling: Air-cooled
• Material: Heavy-duty internal components
• Country of Origin: Canada
