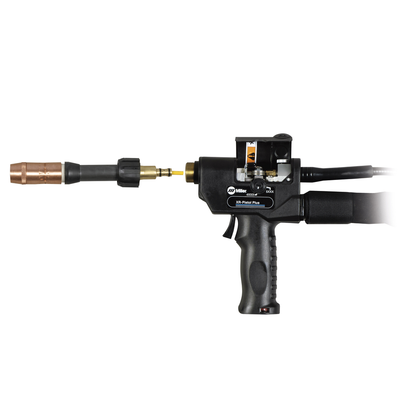

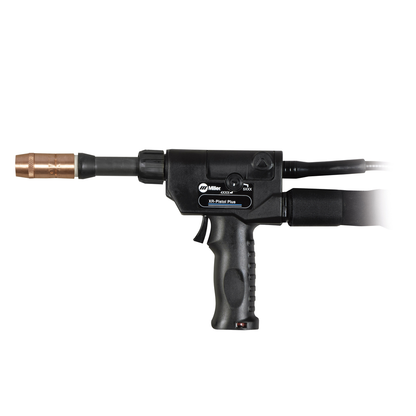

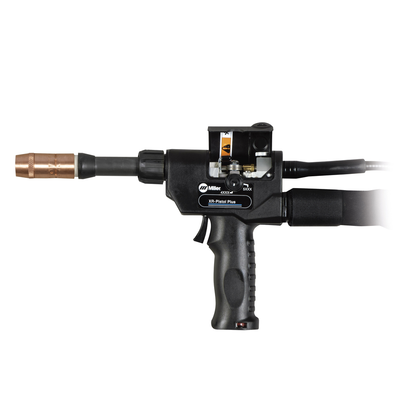

Miller Electric, 300757, Welding Gun, 10.625 in Length, Push-Pull System, Compatible with 74 MPa Plus Feeders

Dedicated gun designed for the 74 MPa Plus feeder to complete a push-pull system. This provides optimized aluminum feeding and welding performance.

Features

• Multiple Configurations===Threaded quick-change 360-degree rotatable head tubes are available in different bends and lengths for even those hard-to-reach welds. Over 30 different styles to fit your application and welder’s preference.
• Complete Your System===XR-Pistol-Plus guns work in conjunction with 74 MPa Plus wire feeders.
• Replaceable Feed Cable Liner===Designed to provide consistent arc performance. It also reduces parts cost and service time by allowing a simple means of removing and replacing liner and not the complete feed cable.
• Best Feeding Performance===Dual wire tension settings for 4000- or 5000 series aluminum to ensure the very best wire feeding performance and arc consistency.
• Most Durable Design===Durable motor and drive design improves feedability and arc consistency while helping reduce downtime and maintenance costs.

• Welding Current Rating: 400 A at 100% duty cycle
• Wire Feed Speed: 70-780 ipm (1.8-19.8 m/min)
• Cable Length: 25 ft
• Length: 10.625 in
• Height: 3.375 in
• Width: 1.875 in
• Weight: 2.2 lbs
• Wire Type and Diameter Capacity: Aluminum .030-1/16 in (0.8-1.6 mm)
• Head Tube: Threaded quick-change 360-degree rotatable, multiple bends and lengths
• Wire Feed Tension Settings: Dual settings for 4000- or 5000 series aluminum
• Material: Durable motor and drive design
• Cooling Type: Water-cooled
• Compatible Feeder: 74 MPa Plus
• Country of Origin: Canada
