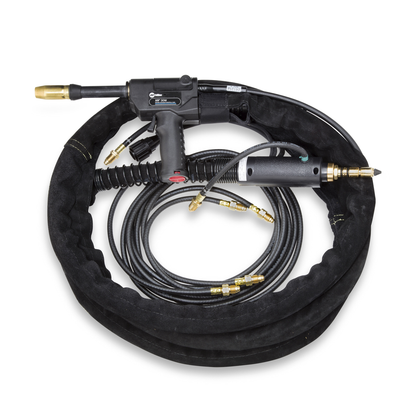

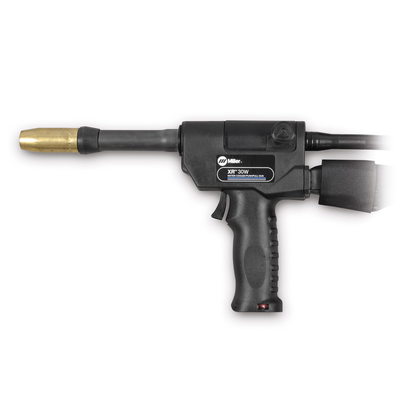

Miller Electric, 198130, MIG Gun, 30 ft; 10.625 in Length, Quick Disconnect, Heavy-Duty Construction

Reliable, cost-effective gun for light- to medium industrial applications.

Features

• Complete Your System===XR-Pistol guns work in conjunction with XR-Control wire feeders to provide the best solution for push-pull applications.
• Replaceable Feed Cable Liner===Designed to provide consistent arc performance. It also reduces parts cost and service time by allowing a simple means of removing and replacing liner and not the complete feed cable.
• Trigger Hold===Reduce fatigue by allowing operators to weld without holding gun trigger. (Feature available when paired with XR-Control.)
• Contact Tips===Accepts single-turn, quick-change FastTip™ and Bernard® Centerfire™ contact tip.
• Multiple Configurations===Threaded quick-change 360-degree rotatable head tubes are available in different bends and lengths for even those hard-to-reach welds. Over 30 different styles to fit your application and welder’s preference.
• Heavy-duty Construction===All internal components are designed to provide long lasting performance and feeding precision.

• Length: 10.625 in
• Width: 1.875 in
• Height: 7.375 in
• Weight: 2.4 lbs
• Cable Length: 30 ft
• Welding Current Rating: 400A at 100% duty cycle
• Wire Diameter Capacity: 0.030 1/16 in (0.8 1.6 mm) aluminum wire
• Wire Feed Speed: 70 875 ipm (1.8 22.2 m/min) dependent on control box
• Cooling Type: Water-cooled
• Contact Tip Compatibility: Single-turn, quick-change FasTip and Bernard Centerfire
• Trigger Hold Feature: Available when paired with XR-Control
• Head Tube: Threaded quick-change, 360 rotatable, multiple bends and lengths available
• Construction: Heavy-duty internal components for long-lasting performance and feeding precision
• Country of Origin: Canada
