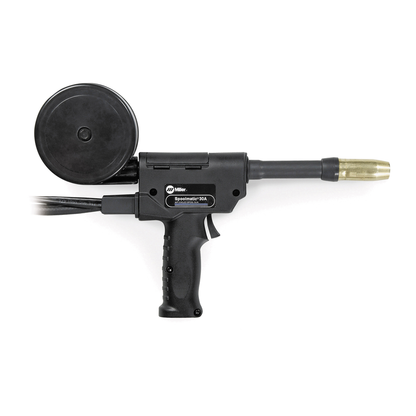

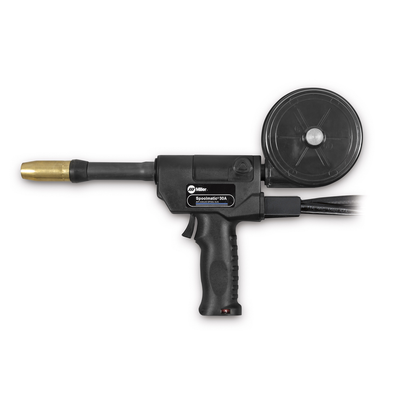

The choice of professionals for exceptional aluminum welding results in industrial or commercial applications.

Features

  • Easy to Use===Wire feed speed adjustment on the gun handle and reversible drive rolls save time and money. Quick-change, single-turn contact tip provides excellent performance and is easy to replace.
  • Welding Current Rating: 200 A at 100% duty cycle
  • Wire Feed Speed: 70-875 ipm
  • Wire Diameter Capacity: .030-1/16 in. (0.8-1.6 mm) aluminum, .030-.045 in. (0.8-1.1 mm) hard wire
  • Maximum Spool Size Capacity: 4 in. (102 mm)
  • Cable Length: 30 ft
  • Gun Dimensions: 10.25 in. H x 2.5 in. W x 15.125 in. L (260 mm x 64 mm x 384 mm)
  • Net Weight: 2.9 lb. (1.3 kg) gun only
  • Country of Origin: Canada

Downloads

    Spec Sheet
