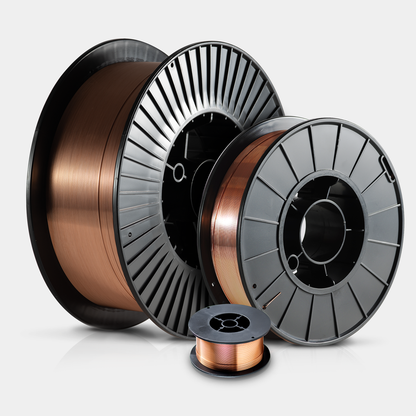

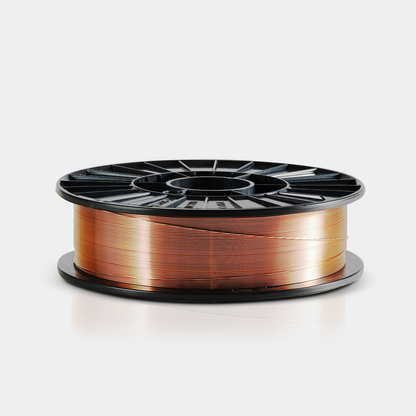

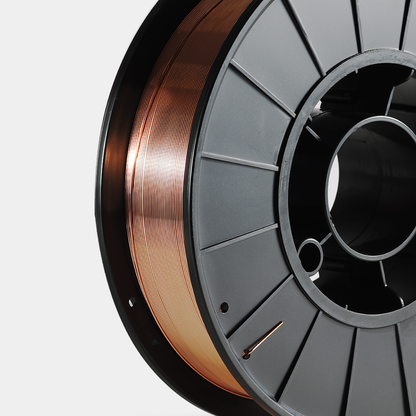

Washington Alloy, TC 80S-D2 17, Welding Wire, ER80S-D2; 0.045 in; 100,000 psi Tensile Strength; Low Alloy Steel

ER80S-D2 is designed to give high strength welds on high sulfur bearing (free- machining) steels or medium carbon steels. This wire contains additional amounts of manganese and silicon which, when alloyed with 0.50% molybdenum, produces weld deposits which have high ductility, excellent impact values and tensile strengths of approximately 100,000 psi. ER80S-D2 is commonly used on low carbon and low alloy steels such as AISI 4130 where the tensile strengths provided by plain carbon steel wires are inadequate. A well balanced silicon content gives this wire superior arc stability, a low spatter level and a flat bead with excellent appearance. ER80S-D2 produces X-ray quality, porosity free welds even over dirt, rust or mill scale

• Size: 0.045 in.
• Weight: 33 lb
• Alloy / Product Title: ER80S-D2
• AWS A5.28 Class: ER80S-D2
• Material: Low alloy steel with manganese, silicon, molybdenum
• Molybdenum Content: 0.50%
• Carbon Content: 0.08%
• Manganese Content: 1.95%
• Silicon Content: 0.60%
• Phosphorus Content: 0.012%
• Sulfur Content: 0.012%
• Nickel Content: 0.020%
• Copper Content: 0.10%
• Typical Tensile Strength: 100,000 psi
• Typical Yield Strength: 84,000 psi
• Typical Elongation: 22%
• Charpy Impact: 30 ft lbs at -20 F
• Compliance: ANSI/AWS A5.28 ER80S-D2, ASME SFA 5.28 ER80S-D2
