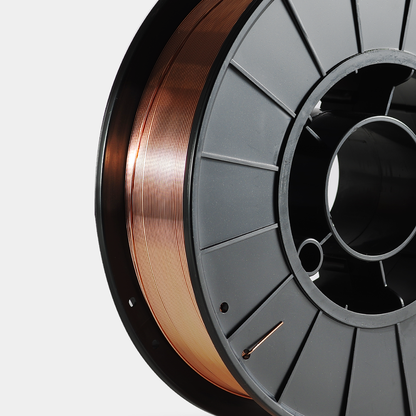

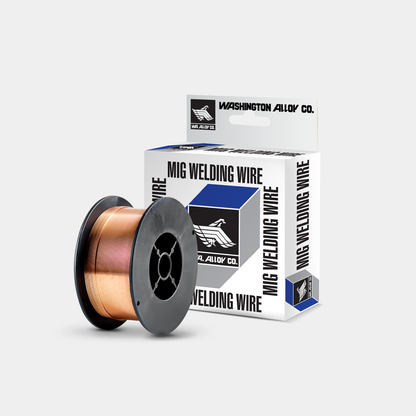

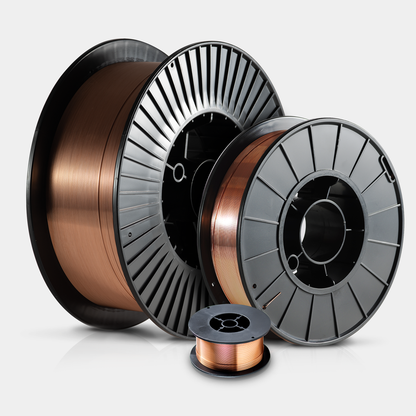

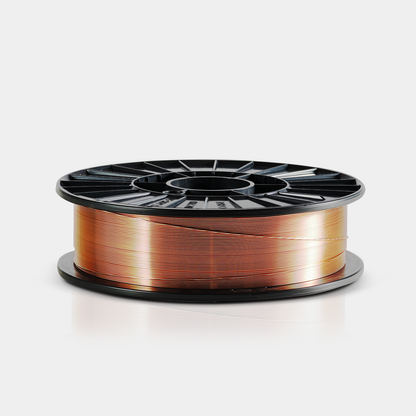

Washington Alloy, TC 70S-2 16, Welding Wire, 0.045 in, Carbon Steel, ER70S-2, AWS A5.18, ASME SFA 5.18

ER70S-2 is a multiple deoxidized wire containing small amounts of zirconium, titanium and aluminum in addition to the manganese and silicon deoxidizers characteristic of the steel wire group. This wire may be used for MIG or TIG welding on all grades of mild and carbon steels, producing superior quality welds with minimal porosity even over rust and mill scale. ER70S-2 is popular for out of position welding with small diameter wires utilizing the short-circuiting arc type transfer. MIG welding may he accomplished using CO2, Argon-Oxygen mixtures or mixtures of the two

• Wire Diameter: 0.045 in.
• Weight: 11 lb
• Tensile Strength: 83,000 psi
• Yield Strength: 71,000 psi
• Elongation in 2": 27%
• Charpy V-notch Impact: 30 ft lbs at -20 F
• Material: Carbon Steel
• Composition: Zirconium, Titanium, Aluminum, Manganese, Silicon
• Carbon Content: 0.05%
• Manganese Content: 1.15%
• Silicon Content: 0.50%
• Size: 0.045 in.
• Alloy / Product Title: ER70S-2
• Compliance: AWS A5.18, ASME SFA 5.18
