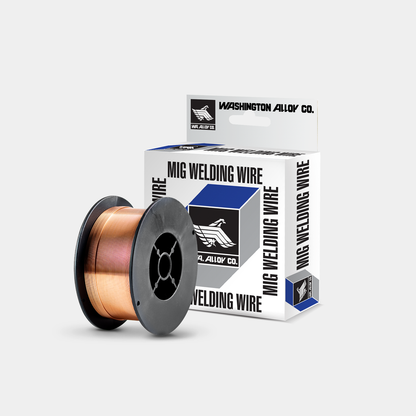

Washington Alloy, TC 70S-2 05, Welding Wire, 0.030 in; AWS A5.18 ER70S-2, MIG/TIG, Mild Steel

ER70S-2 is a multiple deoxidized wire containing small amounts of zirconium, titanium and aluminum in addition to the manganese and silicon deoxidizers characteristic of the steel wire group. This wire may be used for MIG or TIG welding on all grades of mild and carbon steels, producing superior quality welds with minimal porosity even over rust and mill scale. ER70S-2 is popular for out of position welding with small diameter wires utilizing the short-circuiting arc type transfer. MIG welding may he accomplished using CO2, Argon-Oxygen mixtures or mixtures of the two

• Wire Diameter: 0.030 in.
• Weight: 11 lb
• AWS Specification: AWS A5.18 ER70S-2
• Material: Carbon Steel, Zirconium, Titanium, Aluminum, Manganese, Silicon
• Welding Process: MIG, TIG
• Suitable Base Metals: Mild Steel, Carbon Steel
• Welding Transfer Type: Short-Circuiting Arc
• Shielding Gas: CO2, Argon-Oxygen Mixtures
• ASME Specification: ASME SFA 5.18 ER 70S-2
• Carbon Content: 0.05%
• Manganese Content: 1.15%
• Silicon Content: 0.50%
• Phosphorus Content: 0.012%
• Sulfur Content: 0.012%
• Aluminum Content: 0.011%
• Zirconium Content: 0.09%
• Titanium Content: 0.10%
• Tensile Strength: 83,000 psi
• Yield Strength: 71,000 psi
• Elongation in 2 in: 27%
• Charpy V-notch at -20 F: 30 ft lbs
• Average Brinell Hardness: 140
