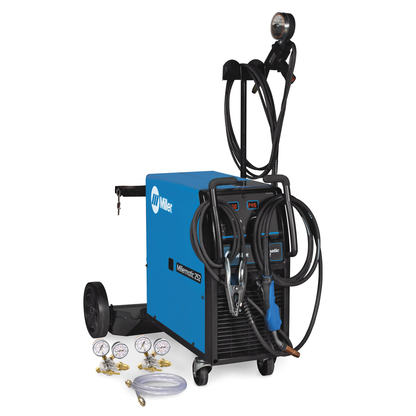

Miller Electric Millermatic 252 MIG Welder Spoolgun Aluminum Package 200(208)/230V - 951960

A time-tested, durable welder with a classic interface designed for simplicity. Easy usage and innovative features make the Millermatic 252 perfect for fabrication, manufacturing, and farm projects.

Features

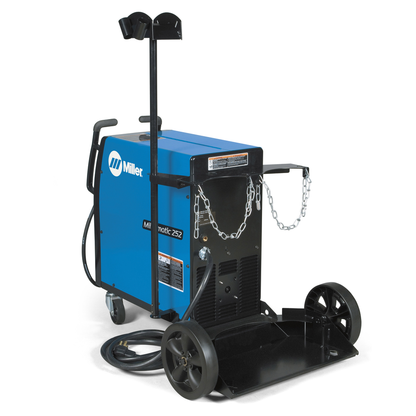

• EZ-Change™ Low Cylinder Rack: Allows operators to easily roll cylinders on and off of rack - no need to lift cylinders.
• Push-Pull Gun Direct Connect: Compatible with Spoolmate 200 Series spool gun with wire feed speed control on the gun. This saves time by reducing trips back to the machine. Also compatible with more industrial Spoolmatic 15A or 30A spool gun.

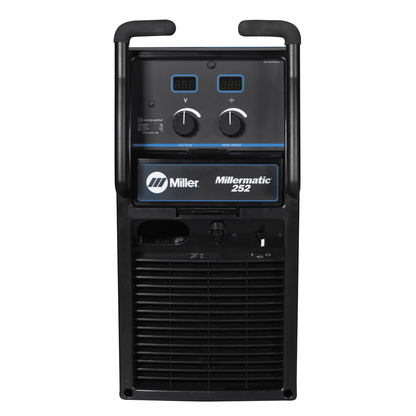

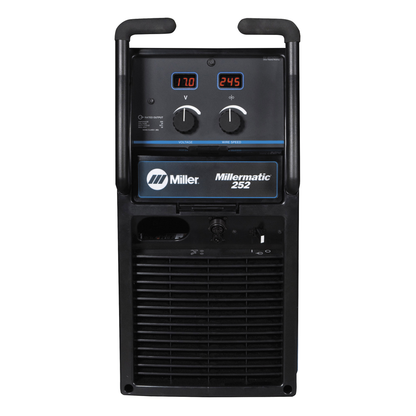

• Large, Digital Front Panel with Built-in Digital Timers Menu: Enables operator to preset voltage and wire feed speed. Standard run-in, pre/postflow, burnback, spot/delay (stitch) timer menu.
• EZ-Access™ Consumable Compartment and Parameter Chart: Set weld parameters right the first time with convenient new flip-down compartment that provides fast access to parameter chart and consumables.
• Auto Gun Detect™: Miller's Auto Gun Detect allows operator to simply pull trigger on MIG gun, spool gun or push/pull gun. Automatically detects and recalls the voltage, wire feed speed and timer of the active gun.

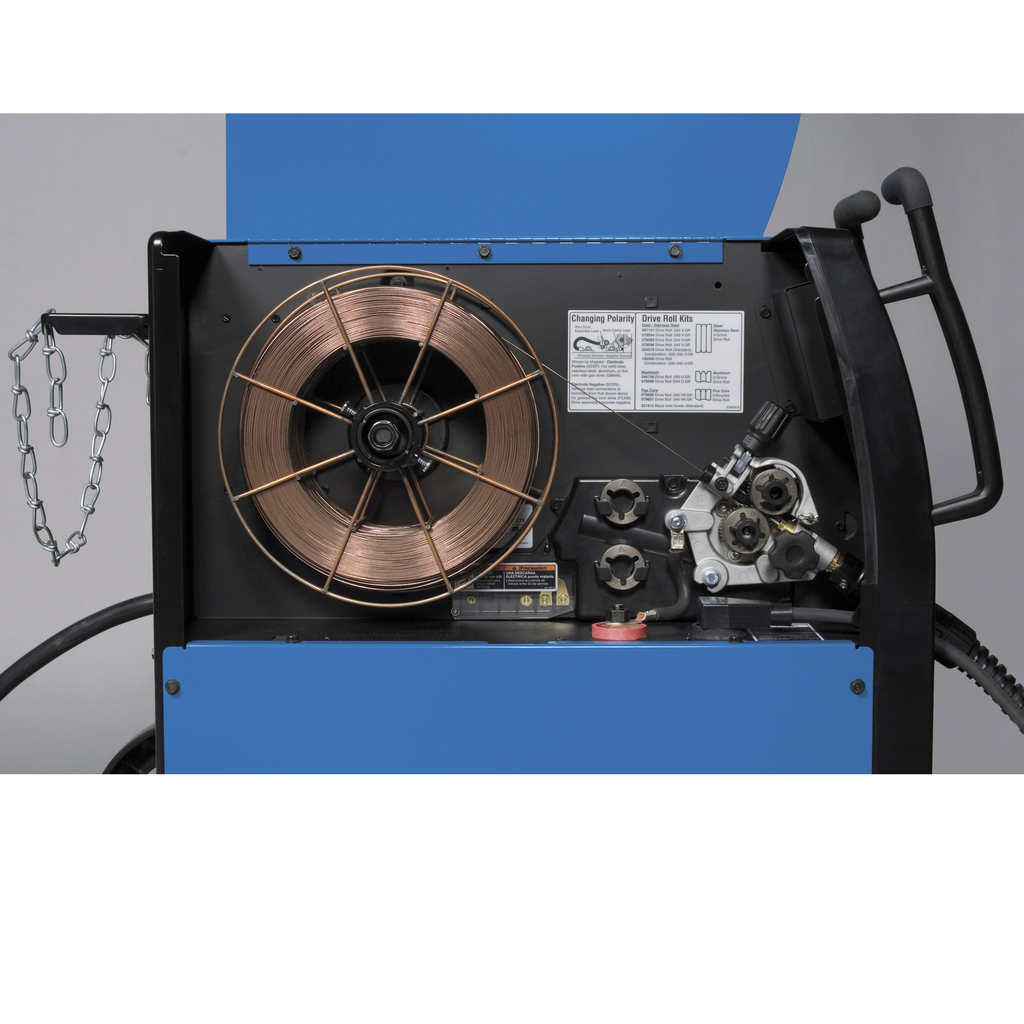

• Angled, Dual-Gear Driven, Cast Aluminum Drive System: Features no-tool, quick-change reversible drive rolls and an easy-to-set, scaled tension knob.

• Amperage Range: 30 A - 300 A
• Rated Output: 200 Amps at 24 VDC, 60% duty cycle; 250 Amps at 26.5 VDC, 40% duty cycle
• Wire Feed Speed: 50 - 700 IPM (1.3 - 17.8 m/min)
• Max Open Circuit Voltage: 38 VDC
• Input Voltage: 208 - 240 V, single-phase, 60 Hz
• Weight: 205 lb. (93 kg)
• Dimensions: H: 30 in. (762 mm), W: 19 in. (483 mm), D: 40 in. (1016 mm)
• Max Spool Size: 12 in. (305 mm)
• Operating Temperature Range: -4 to +104 F (-20 to +40 C)
• Storage Temperature Range: -22 to +122 F (-30 to +50 C)
• Material: Cast Aluminum (Drive System)
• Wire Diameter Range: .023 - .045 in. (steel/stainless steel solid wire); .030 - .045 in. (flux-cored wire)
• Compliance: CSA Certified
• Country of Origin: United States
• Series: Millermatic
