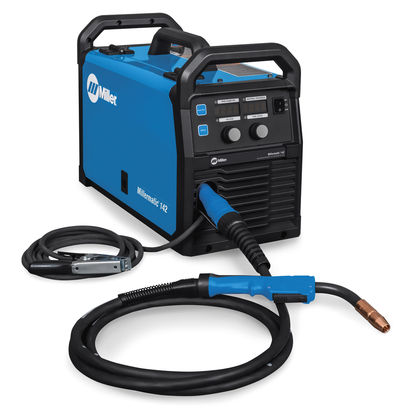

Miller Electric Millermatic 142 MIG Welder - 907838

MIG and flux cored 120 V welder that welds from 24 gauge – 3/16 in. mild steel.

Features

• 120V Input Power: Uses 120V input power so there is no special power requirements. Flexible to use in any location!
• Auto Spool Gun Detect™: Automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.
• Smooth-Start™: This technology provides a smooth, spatter-free start. No more pop-gun starts or spatter to clean up.

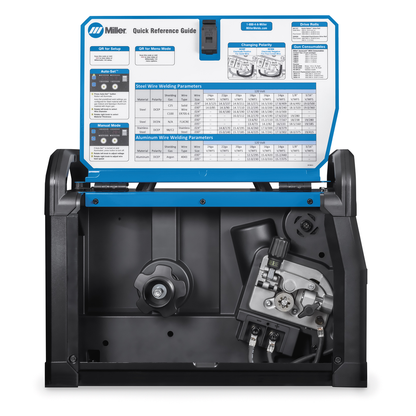

• Quick Select™ Drive Roll: Makes setup quicker by offering three grooves - two for different size solid wire and a third for flux-cored wire.
• Generator Compatible: The Millermatic 142 will be able to operate and provide full output when powered by generators with 5,000-watt (5.0K) output or higher, such as a Miller Blue Star 185 (6200 watts) or Fusion 185 (6200 watts) engine-driven welder. Limited output will occur when used with smaller generators.

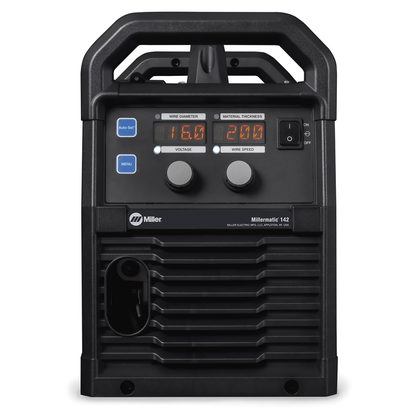

• Segmented Display: Easy to read display gives you the flexibility to set the machine precisely and accurately in Manual and Auto-Set modes.
• Thermal Overload & 'Tip Saver' Short Circuit Protection: Shuts down the unit and activates the over-temperature light if the airflow is blocked or duty cycle is exceeded. Tip Saver shuts down output when the tip is shorted to the work extending tip life and protecting internal components from damage.
• Auto-Set™: A breakthrough control that automatically sets your welder to the proper parameters. Auto-Set offers all-in-one MIG minus the hassle of finding parameters. Simply set the wire diameter, set the material thickness, and start welding!

• Amperage Range: 30 A - 140 A
• Rated Output: 100 A at 19 V, 60% duty cycle; 80 A at 18 V, 100% duty cycle
• Input Voltage: 110/115/120 V, 1-Phase, 60 Hz
• Max Open Circuit Voltage: 57 VDC
• Wire Feed Speed: 1.5 m/min - 15.2 m/min (60 IPM - 600 IPM)
• Weld Thickness: 24 ga (0.8 mm) - 3/16 in. (4.8 mm) steel; 18 ga (1.2 mm) - 14 ga (1.9 mm) aluminum
• Wire Diameter: 0.024 in. - 0.03 in. solid; 0.03 in. - 0.035 in. flux-cored
• Amperage Min: 30 A
• Amperage Max: 140 A
• Weldable Metals: Aluminum; Stainless Steel; Steel
• Material Type: Solid Steel; Stainless; Flux Cored
• Country of Origin: United States
• Material Thickness Display: Aluminum 18 ga. (1.2 mm) - 14 ga. (1.9 mm); Mild Steel 24 ga. (0.8 mm) - 3/16 in. (4.8 mm)
• Current Type: DC
• Spool Size: 8 in.
• Series: Millermatic4
• Weld Output: CV
