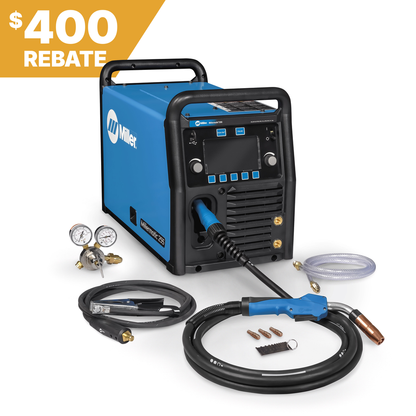

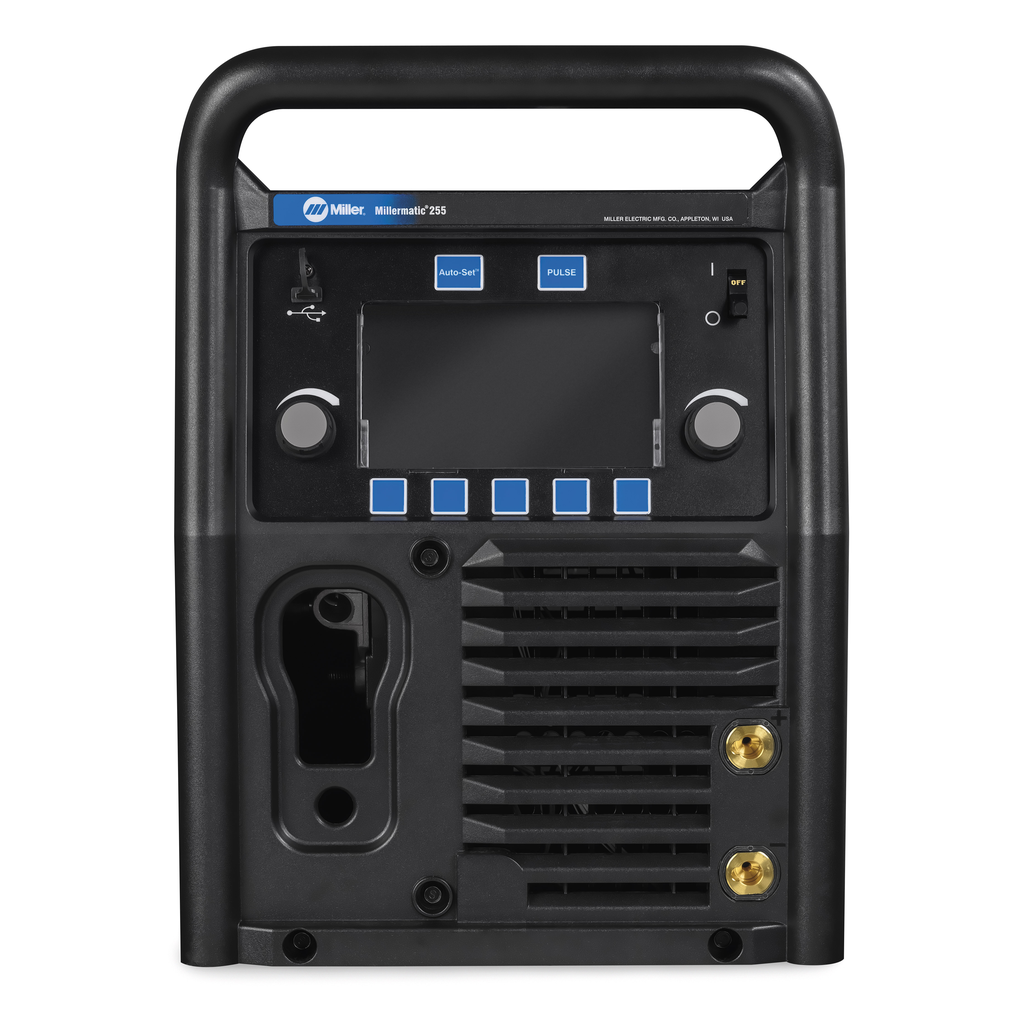

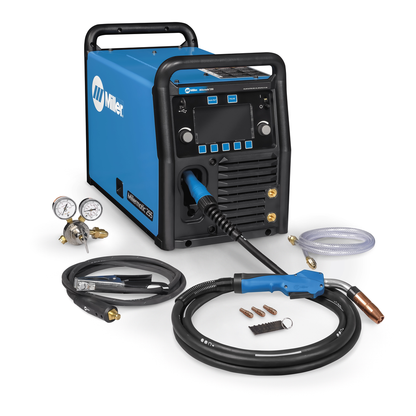

Miller Electric Millermatic 255 MIG/Pulsed MIG Welder - 208/240V - 907734

Packed with innovative features, this all-in-one welder increases efficiency and productivity for manufacturing and fabrication applications.

Features

• Optional EZ-Latch™ running gear: Operators no longer need to use lift truck to load machine and running gear into the truck. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability
• Versatility: Capabilities include MIG, pulsed MIG and flux-cored welding.
• Locks and Limits: Provides control of the weld parameter ranges minimizing deviations from the welding procedure specifications (WPS).
• MDX-250 MIG Gun w/ AccuLock™ S consumables: AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ S contact tips provide superior Spray and Pulsed MIG arc performance.

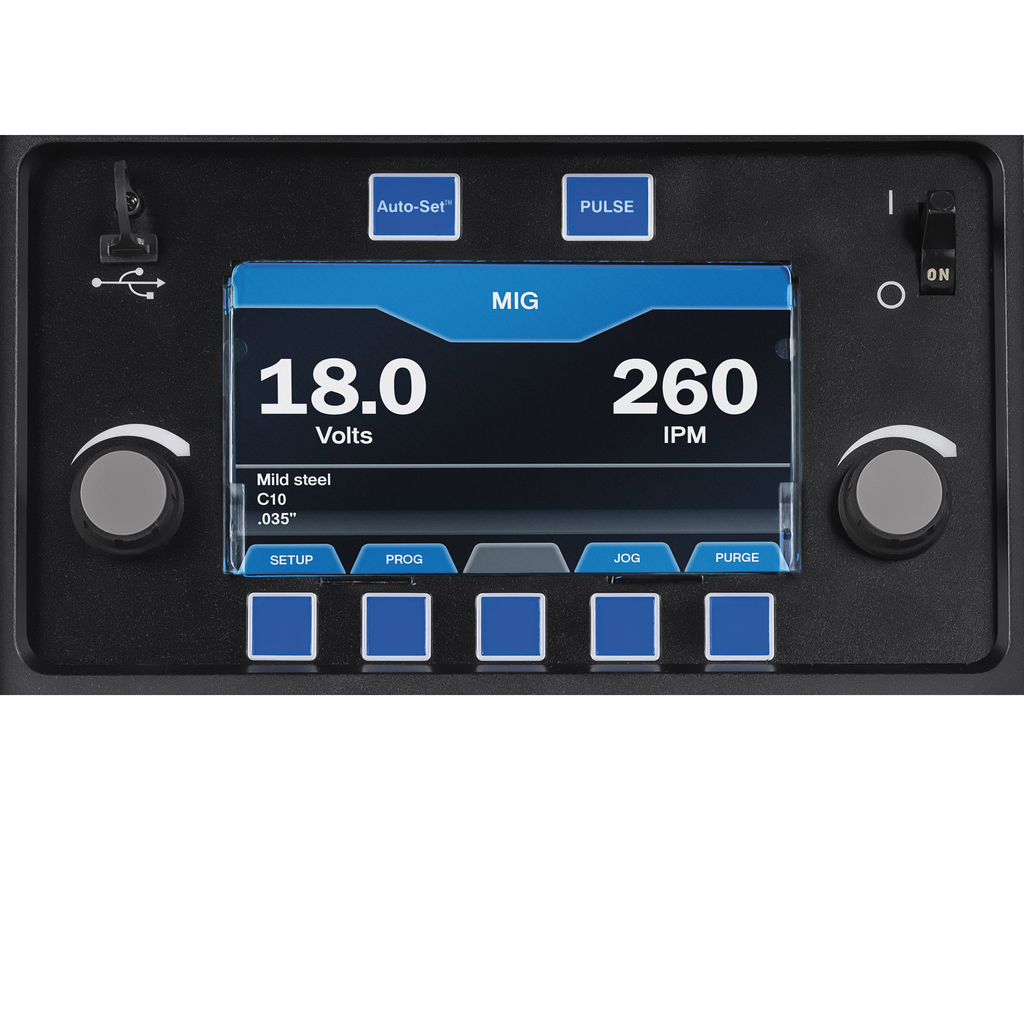

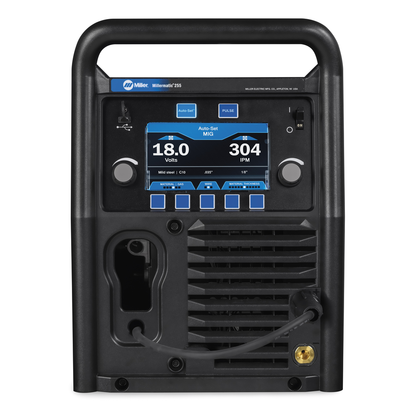

• Easy-to-understand interface: 7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time
• Portability - Machine only weighs 84 lb: Weight is reduced by more than 50 percent compared to transformer welding machines.
• Pulsed MIG welding delivers higher quality: Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding and rework allowing more welding time. Perform welding applications that couldn’t be done in the past.
• Program mode allows easy save and recall of favorite weld settings: Deliver more productivity, consistent quality by welders of all skill levels by using prequalified weld settings. Minimize supervisor need to intervene.
• Auto-Set™ Technology: Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
• Generator Compatible: Will be able to operate and provide full output when powered by an engine-driven welder with 12000 Watt (12K) output or higher, such as a Miller Bobcat or Trailblazer. Limited output will occur when used with smaller generators.

• Input Voltage: 208-240 V, single-phase
• Amperage Range: 20 A - 350 A
• Rated Output: 230 A at 25.5 V, 60% duty cycle
• Max Open Circuit Voltage: 87 VDC
• Wire Feed Speed: 50 - 800 IPM (1.3 - 20.3 m/min)
• Height: 19.25 in
• Length: 26.25 in
• Width: 13.75 in
• Weight: 84 lb (38 kg) machine only
• Weight with Running Gear: 148 lb (67 kg)
• Wire Type and Diameter: Solid/stainless steel: .023-.045 in (0.6-1.2 mm); Flux-cored: .030-.045 in (0.8-1.2 mm); Aluminum: .035-.047 in (0.9-1.2 mm)
• Weld Output: CV
• Current Type: DC
• Input Frequency: 50/60 Hz
• Input Phase: 1-Phase
• Display Min Thickness - Mild Steel: 24 ga. (0.51 mm)
• Display Max Thickness - Mild Steel: 1/2 in (13 mm)
• Display Min Thickness - Aluminum: 18 ga. (1.2 mm)
• Display Max Thickness - Aluminum: 1/2 in (13 mm)
• Material Thickness Display: Aluminum 18 ga. (1.2 mm) - 1/2 in (12.7 mm); Mild Steel 24 ga. (0.5 mm) - 1/2 in (12.7 mm)
• Spool Size: 12 in (305 mm)
• Weldable Metals: Aluminum, Stainless Steel, Steel
• Series: Millermatic
• Country of Origin: United States
