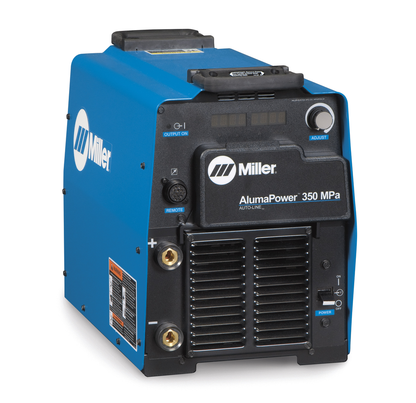

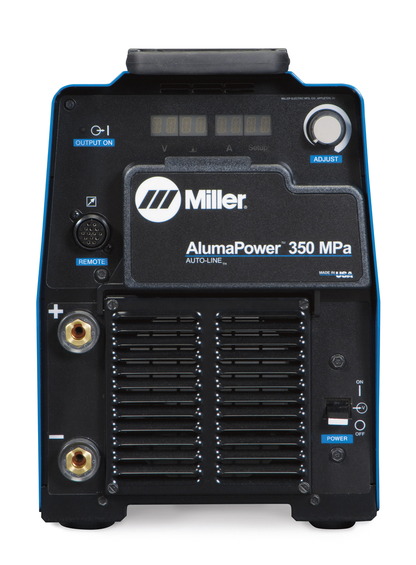

Miller Electric, 907420001, MIG Welder, AlumaFeed Series, 208-575 V, 10-38 V; 5-425 A

MIG and synergic Pulsed MIG Power source with optimized weld programs for aluminum.

Features

• Fan-On-Demand™: Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through machine.
• Built-in MIG and Pulsed MIG programs: Automatically set the optimal parameters for a wide variety of wires making it easy to set up and use.
• Wind Tunnel Technology™: Internal air flow that protects internal components from dirt, dust, debris— greatly improving reliability.
• Profile Pulse™: Provides TIG appearance with MIG simplicity and productivity. Achieve “stacked dimes” without gun manipulation. Profile Pulse frequency can be changed to increase or decrease the spacing between the ripple pattern to achieve the desired weld appearance.
• Parameter and system locks: Enhance quality assurance and protect weld consistency.
• Synergic Pulsed MIG: As wire speed increases/decreases, pulse parameters also increase/decrease to match the right amount of power needed, eliminating the need to make additional adjustments.
• Trigger Schedule Select: Trigger schedule select (SCHD) allows the operator to select the alternative schedule by quickly tapping the gun trigger when not welding. Useful when switching between two welding parameters is needed.
• Synchronized, true push-pull wire feed system: Offers precise wire feeding and arc performance.

• Voltage: 208 V; 220-230-240 V; 380-400-440 V; 575 V
• Rated Output: 5-425 A at 10-38 V
• Max Open Circuit Voltage: 90 VDC
• Input Phase: 1- and 3-Phase
• Input Hz: 50/60 Hz
• Input Amperage at Rated Load Output (60 Hz): 40.4 A at 208 V, 36.1 A at 230 V, 20.6 A at 400 V, 17.8 A at 460 V, 14.1 A at 575 V
• Power Factor: 0.95
• Power Consumption: 13.6 KW, 14.2 KVA
• Power Supply Type: MIG and synergic Pulsed MIG
• Pulse Capability: Profile Pulse, Synergic Pulsed MIG
• Trigger Schedule: Select (SCHD)
• Wire Feed System: Synchronized true push-pull wire feed
• Cooling System: Fan-On-Demand
• Dimensions: 17 in H x 12.5 in W x 24 in D (432 mm x 318 mm x 610 mm)
• Net Weight: 80 lb (36.3 kg)
• Material: Aerospace-grade aluminum case, polycarbonate-blended cover
• Country of Origin: United States
• Series: AlumaFeed
• Weldable Metals: Aluminum
