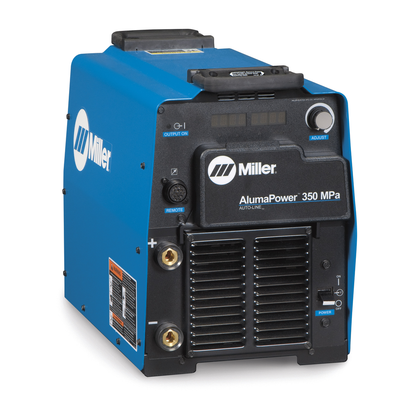

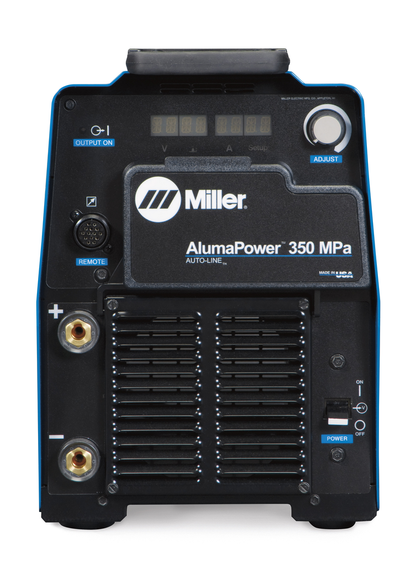

Miller Electric, 907420, MIG Welder, AlumaFeed Series, 350 A at 34 VDC, 208-575 V, CC/CV

MIG and synergic Pulsed MIG Power source with optimized weld programs for aluminum.

Features

• Synchronized, true push-pull wire feed system: Offers precise wire feeding and arc performance.
• Trigger Schedule Select: Trigger schedule select (SCHD) allows the operator to select the alternative schedule by quickly tapping the gun trigger when not welding. Useful when switching between two welding parameters is needed.
• Parameter and system locks: Enhance quality assurance and protect weld consistency.
• Fan-On-Demand™: Power source cooling system operates only when needed, reducing noise, energy use, and the amount of contaminants pulled through machine.
• Built-in MIG and Pulsed MIG programs: Automatically set the optimal parameters for a wide variety of wires making it easy to set up and use.
• Synergic Pulsed MIG: As wire speed increases/decreases, pulse parameters also increase/decrease to match the right amount of power needed, eliminating the need to make additional adjustments.
• Wind Tunnel Technology™: Internal air flow that protects internal components from dirt, dust, debris— greatly improving reliability.
• Profile Pulse™: Provides TIG appearance with MIG simplicity and productivity. Achieve “stacked dimes” without gun manipulation. Profile Pulse frequency can be changed to increase or decrease the spacing between the ripple pattern to achieve the desired weld appearance.

• Input Voltage: 208-575 V, 50/60 Hz, Single- and Three-Phase
• Amperage Range: 5-425 A (CC mode)
• Voltage Range: 10-38 V (CV mode)
• Duty Cycle: 350 A at 34 VDC, 60%
• Max Open Circuit Voltage: 75 VDC
• Weld Output: CC / CV
• Current Type: DC
• Wire Feed System: Synchronized true push-pull
• Cooling System: Fan-On-Demand
• Power Factor: .95
• Width: 12.5 in.
• Length: 24 in.
• Height: 17 in.
• Weight: 80 lb (36.3 kg)
• Weldable Metals: Aluminum
• Series: AlumaFeed
• Country of Origin: United States
