Miller Electric, 907321011, MIG Welder, 300 A; 208/230/240 V, 1-Phase, 12 in Spool Size, 22 ga - 1/2 in Thickness

Welds material from 22 gauge to 1/2 in thick in a single pass. Highest output in its class.

Features

• EZ-Access™ Consumable Compartment and Parameter Chart: Set weld parameters right the first time with convenient new flip-down compartment that provides fast access to parameter chart and consumables.
• Push-Pull Gun Direct Connect: Compatible with Spoolmate 200 Series spool gun with wire feed speed control on the gun. This saves time by reducing trips back to the machine. Also compatible with more industrial Spoolmatic 15A or 30A spool gun.

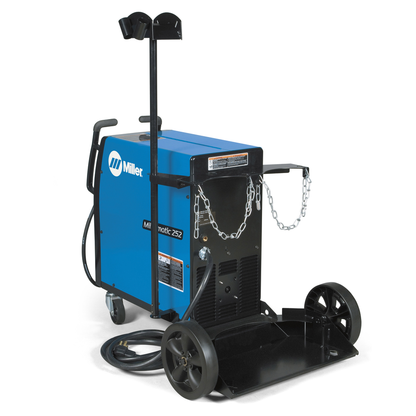

• EZ-Change™ Low Cylinder Rack: Allows operators to easily roll cylinders on and off of rack - no need to lift cylinders.

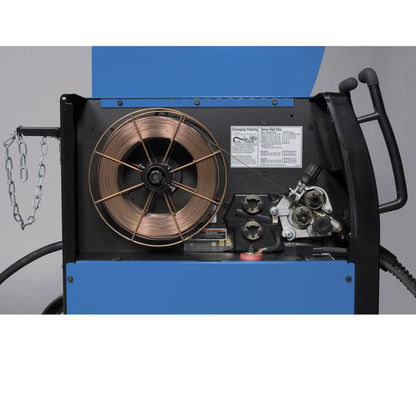

• Angled, Dual-Gear Driven, Cast Aluminum Drive System: Features no-tool, quick-change reversible drive rolls and an easy-to-set, scaled tension knob.
• Auto Gun Detect™: Miller's Auto Gun Detect allows operator to simply pull trigger on MIG gun, spool gun or push/pull gun. Automatically detects and recalls the voltage, wire feed speed and timer of the active gun.

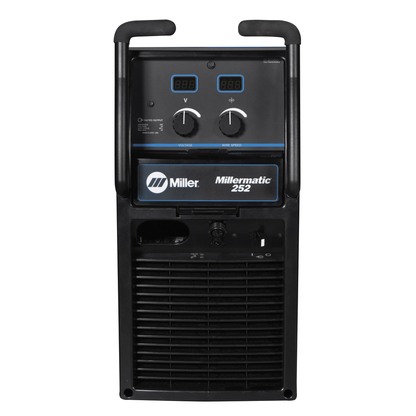

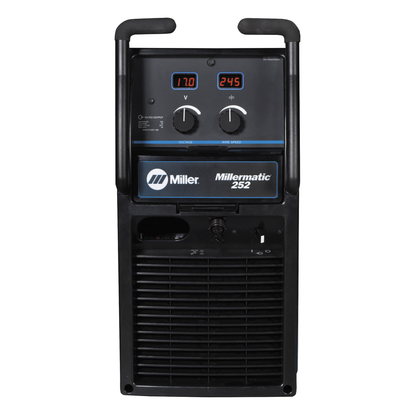

• Large, Digital Front Panel with Built-in Digital Timers Menu: Enables operator to preset voltage and wire feed speed. Standard run-in, pre/postflow, burnback, spot/delay (stitch) timer menu.

• Input Voltage: 208 V; 220/230/240 V
• Input Hz: 60 Hz
• Input Phase: 1-Phase
• Amperage Min: 30 A
• Amperage Max: 300 A
• Max Open Circuit Voltage: 38 VDC
• Max Wire Feed Speed: 17.8 m/min
• Min Wire Feed Speed: 1.3 m/min
• Rated Output: 200 A at 28 VDC, 60% duty cycle; 250 A at 28 VDC, 40% duty cycle
• Weld Output: CV
• Welding Type: MIG
• Display Min Thickness - Mild Steel: 22 ga. (0.9 mm)
• Display Max Thickness - Mild Steel: 1/2 in. (13 mm)
• Display Min Thickness - Aluminum: 14 ga. (1.9 mm)
• Display Max Thickness - Aluminum: 3/8 in. (9.5 mm)
• Material Thickness Capacity: 22 gauge to 1/2 in
• Material Type: Solid Steel; Stainless; Flux Cored
• Weldable Metals: Aluminum; Stainless Steel; Steel
• Length: 40 in.
• Width: 19 in.
• Height: 30 in.
• Weight: 205 lb
• Country of Origin: United States
