ESAB, 0700401201, MIG Welder, 30-280 A, 250 A Gun Amperage, 1/2 in. Max Plate Thickness, 15 ft Cable Length

Rustler EM 280 MIG/MAG compact welding inverter is your solution of choice for the most common challenges welders face across all industries. Equipped with the latest inverter technology offering the advantage of low energy consumption on 230VAC single phase power with optimized weld performance. Rustler is ready to weld most common base materials with optimized welding programs for carbon steel, stainless steel, aluminum, silicon bronze, and flux-cored wires. Smooth wire feeding is delivered by a reliable and well proven industrial feeding mechanism. The durable housing is enhanced with a flexible accessories storage system, allowing users to store and protect additional tools as needed. Additional features include inspection window, LED light in spool compartment, torch holder and cable management for an efficient and comfortable working environment.

Accessories

• 1023-1277 Work lead with clamp, 300A, 35mm2, 4.5 m (15 ft)
• OKC 50, Cable Connector, Male (2 ea) 9425-1431
• OKC 50, Cable Connector, Female (2 ea) 9425-1432
• Cable Hanger 0448154001
• Spray Master Velocity 250V MIG Gun, 4.5 m (15 ft)
• 0700400858 Tweco Spool Gun 200A 3.6 m (12 ft)
• 1027-1398 Tweco Spool Gun 200A 7.6 m (25 ft)
• 1027-1399 Top Storage Toolbox
• 0781-2703 Gas hose with 5/8 in 18 RH fittings, 3 m (10 ft)
• 0558103111 Victor GF-250-50-580, Flow Gauge Regulator, for Ar/CO2
• 0448156880 Torch Holder 0448155001
• 0781-9411 Victor GRF400-320 Flowmeter Regulator, for CO2

Features

• IP23S
• Spool gun ready allows for quick set up of spool gun for smooth Aluminum welding (spool gun sold separately)
• Welds up to 1/2 in. steel and 3/8 in. aluminum
• Digital display for easy and intuitive set up and adjustments and a feature rich user interface with trigger control, arc dynamics and many more adjustments
• High output current and duty cycle for increased productivity, including superb arc characteristics optimized for most common base materials benefiting less rework
• IP23S rated for indoor/outdoor use
• Energy Save Mode – after 2 minutes of inactivity the unit will enter this state to reduce power consumption

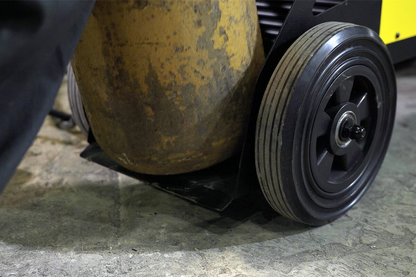

• 4-wheel industral drive

Applications

• Steel Erectors
• Steel Service Centers
• Structural Steel Fabrication
• Industrial and General Fabrication
• Repair and Maintenance
• Agricultural Equipment

Prop 65

• Yes

• Input Voltage: 208/230V AC single phase
• Amp Range: 30-280 A
• Duty Cycle: 280A/28V @ 25% | 200A/24V @ 60% | 155A/21.75V @ 100%
• Welding Current: 280 A
• Work Lead Current: 300 A
• Maximum Plate Thickness: 1/2 in.
• Welding Thickness Aluminum: up to 3/8 in.
• Wire Feed Speed: 80-700 IPM
• Wire Size: 0.6 - 1.2 mm (0.023 - 0.045 in.)
• Wire Spool Size: 8 in, 12 in
• Torch Model: SprayMaster™
• Torch Length: 15 ft
• Work Lead Length: 15 ft
• Gas Hose Length: 10 ft
• Cable Connector Type: OKC 50 Male, Female
• Drive Wheels: 4-wheel industrial drive
• Physical Size: 38.8 x 17.8 x 33.1 in.
• Material: Steel housing
• Country of Origin: China
• Carcinogen: No
• Phase: Single
• Frequency: 50/60 Hz
