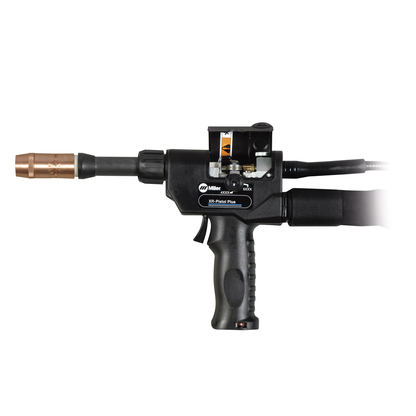

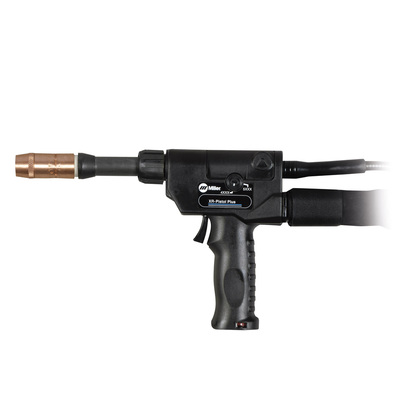

Miller Electric, 300754, XR-Pistol Plus, 25 ft, Threaded Quick-Change Head, 10.625 in Length, 1.875 in Width

Dedicated gun designed for the 74 MPa Plus feeder to complete a push-pull system. This provides optimized aluminum feeding and welding performance.

Features

• Best Feeding Performance===Dual wire tension settings for 4000- or 5000 series aluminum to ensure the very best wire feeding performance and arc consistency.
• Replaceable Feed Cable Liner===Designed to provide consistent arc performance. It also reduces parts cost and service time by allowing a simple means of removing and replacing liner and not the complete feed cable.
• Complete Your System===XR-Pistol-Plus guns work in conjunction with 74 MPa Plus wire feeders.
• Most Durable Design===Durable motor and drive design improves feedability and arc consistency while helping reduce downtime and maintenance costs.

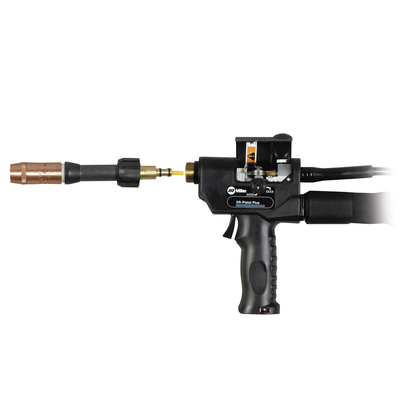

• Multiple Configurations===Threaded quick-change 360-degree rotatable head tubes are available in different bends and lengths for even those hard-to-reach welds. Over 30 different styles to fit your application and welder’s preference.

• Weight: 2.2 lb (1.0 kg)
• Length: 10.625 in
• Width: 1.875 in
• Height: 3.375 in
• Cable Length: 25 ft
• Welding Current Rating: 200 A at 100% duty cycle
• Wire Diameter Capacity: 0.030 1/16 in (0.8 1.6 mm)
• Wire Feed Speed: 70 780 ipm (1.8 19.8 m/min)
• Material: Durable motor and drive design
• Compatibility: Works with 74 MPa Plus wire feeders for push-pull system
• Country of Origin: Canada
