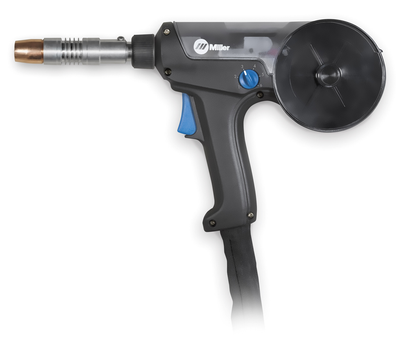

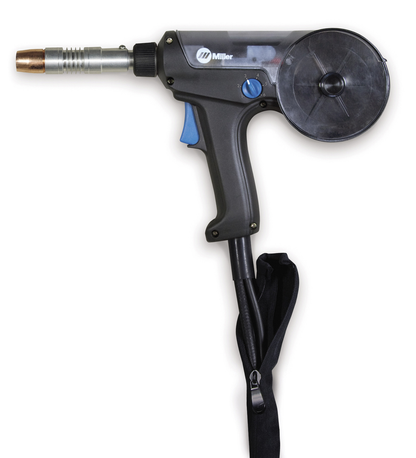

Miller Electric, 300497, Spool Gun, 20 ft; 160 A; .023 - .035 Wire; 2.5 in Width

Most economical and reliable spool gun in its class! Designed specifically for home hobbyists & light fabricators. Rated at 160 amps at 60% duty cycle - ideal for welding with .023 - .035 wires.

Features

• Adjustable drive roll tension===for feeding different types of wire.
• Hinged wire spool cover===makes it easy to access wire compartment.
• Easy access to drive assembly===reduces service time by allowing easy access to drive rolls or performing routine maintenance without disassembly of gun.
• Wire speed adjustment located on the gun handle===allows the user to conveniently change wire speed directly from the spool gun. Saves time by eliminating the need to walk back to the welding machine to change the wire feed settings.
• Easy to remove barrel options===with several optional barrels allows welding in tight spaces and corners.
• Light Industrial spool gun===rated at 160 amps at 60% duty cycle. Ideal for welding with .023 - .035 wires.
• Pressure lever===for easy loading and unloading of wire.
• Gas lines routed internally===means that the gas line won't get in the way of the work.
• Built-in gas valve===eliminates the need to purge long gas lines.
• 20 ft direct-connect cable===with heavy-duty strain relief provides extended reach and accessibility to your work. Hooks up to the Millermatic 212 Auto-Set, 251 and 252.

• Amperage: 160A
• Duty Cycle: 60%
• Wire Diameter Capacity: 0.023 0.035 in
• Wire Feed Speed: 70 875 ipm
• Maximum Spool Size Capacity: 4 in
• Length: 14.5 in
• Width: 2.5 in
• Height: 9 in
• Weight: 11 lb
• Cable Length: 20 ft
• Material: Aluminum, Steel, Stainless Steel
• Country of Origin: China
