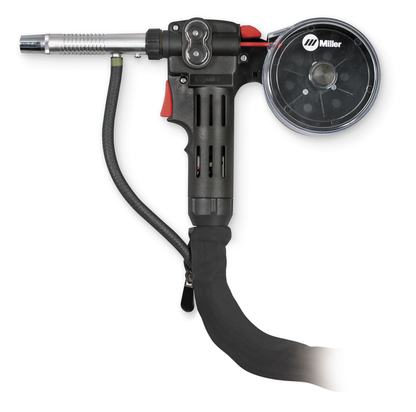

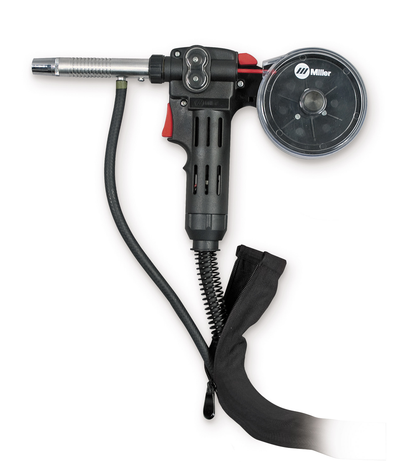

Miller Electric, 195016, Spool Gun, 20 ft, 150 A, 60% duty cycle, Lightweight, Clear Canister

Highly reliable and economical spool gun with excellent feeding to weld aluminum.

Features

• Featured Accessory: Spoolmate Heavy-Duty Barrel #195375===Ideal for demanding applications. Rated 200 amps, 60% duty cycle.
• Clear Spool Canister===Protects the wire and allows you to easily see the spool.
• Lightweight and well-balanced===to improve operator comfort.
• 20 ft weld/control cables===provide reach and accessibility to your work.
• Lightweight industrial spool gun===rated at 150 amps at 60% duty cycle.

• Amperage: 150A
• Duty Cycle: 60%
• Wire Diameter Capacity: .030 .035 in (0.8 0.9 mm) aluminum, .023 .035 in (0.6 0.9 mm) steel/stainless steel
• Wire Feed Speed: 115 715 ipm (2.9 18.1 m/min)
• Maximum Spool Size Capacity: 4 in (102 mm)
• Cable Length: 20 ft
• Height: 11.5 in
• Width: 2.25 in
• Length: 8 in
• Weight: 9 lb
• Material: Lightweight industrial design
• Optional Heavy-Duty Head Tube Amperage: 200A at 60% duty cycle
• Country of Origin: China
