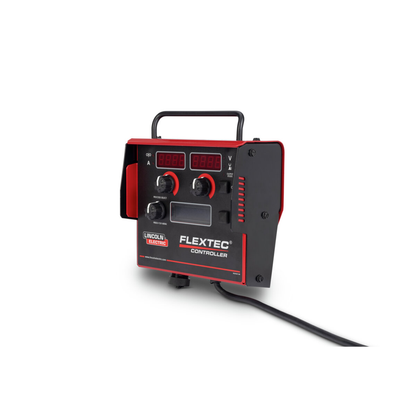

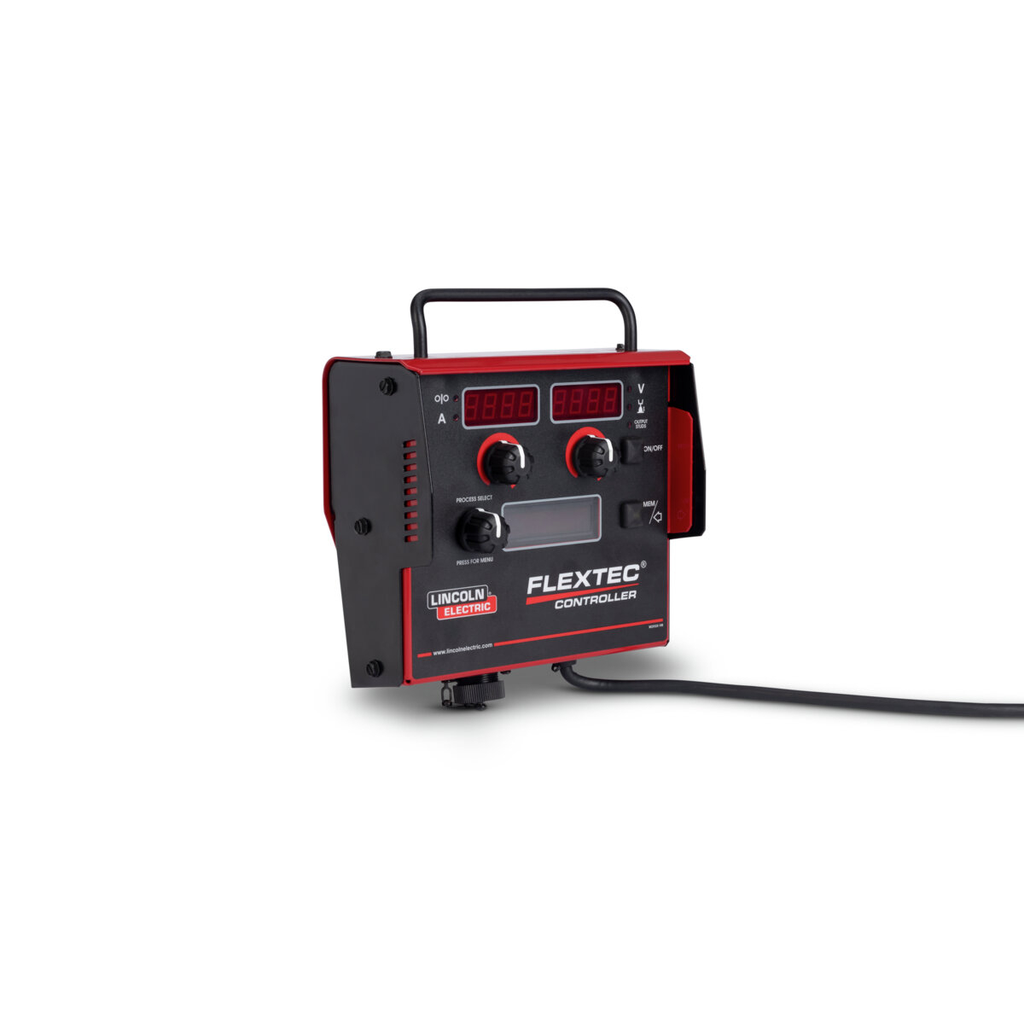

Lincoln Electric, K5491-1, Flextec Controller, 8 in; 4 in; Pulsed MIG; Spool Gun Control

The Flextec® Controller is a lightweight, ArcLink® enabled, remote UI that gives operators the ability to hook up a spool gun as well as provide synergic pulse control when using a wire feeder or spool gun and a pulse capable power source.

Features

• Memory Capabilities - Four memory storage options for quick procedure recall.

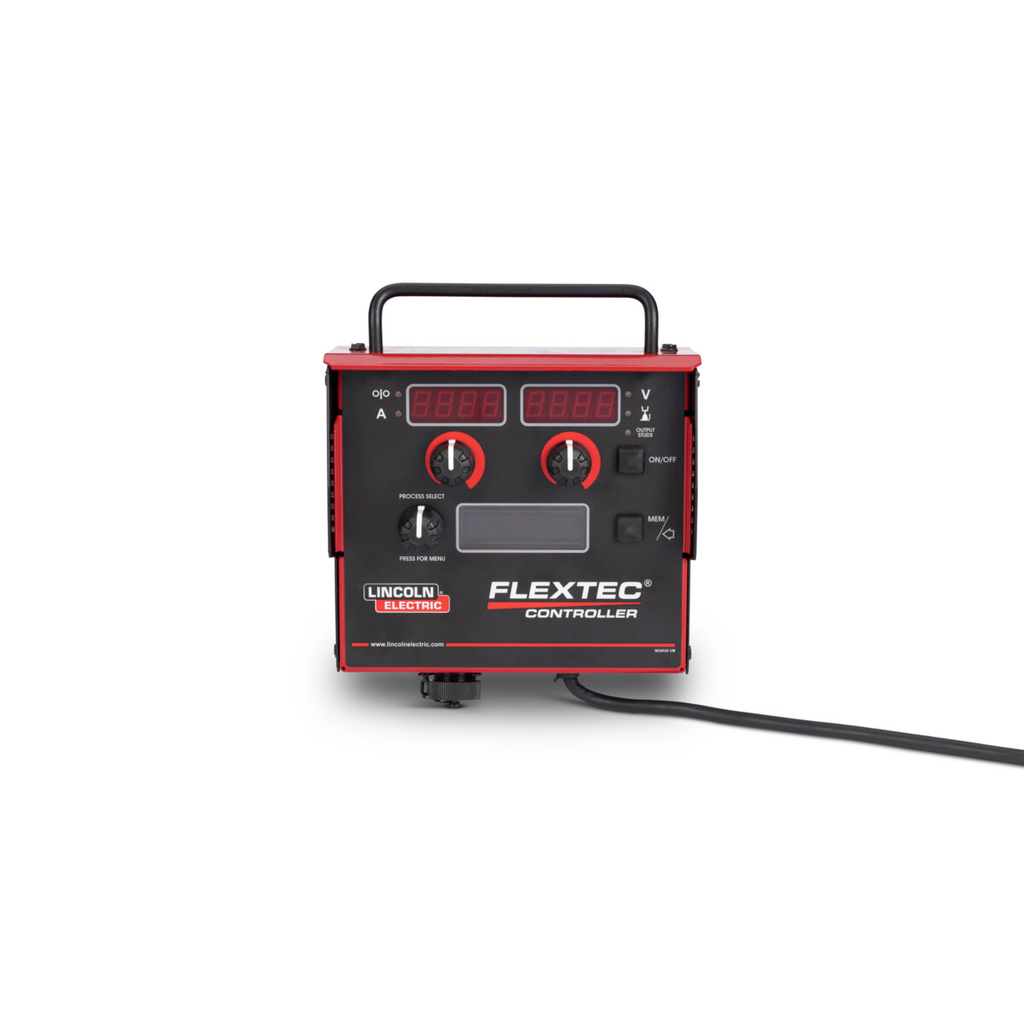

• Easy to Use Display - Large digital display with dedicated voltage and wire feed speed knobs.
• Pulsed MIG - Gives the ability to run synergic pulse using an across-the-arc feeder or spool gun when paired with an applicable power source.

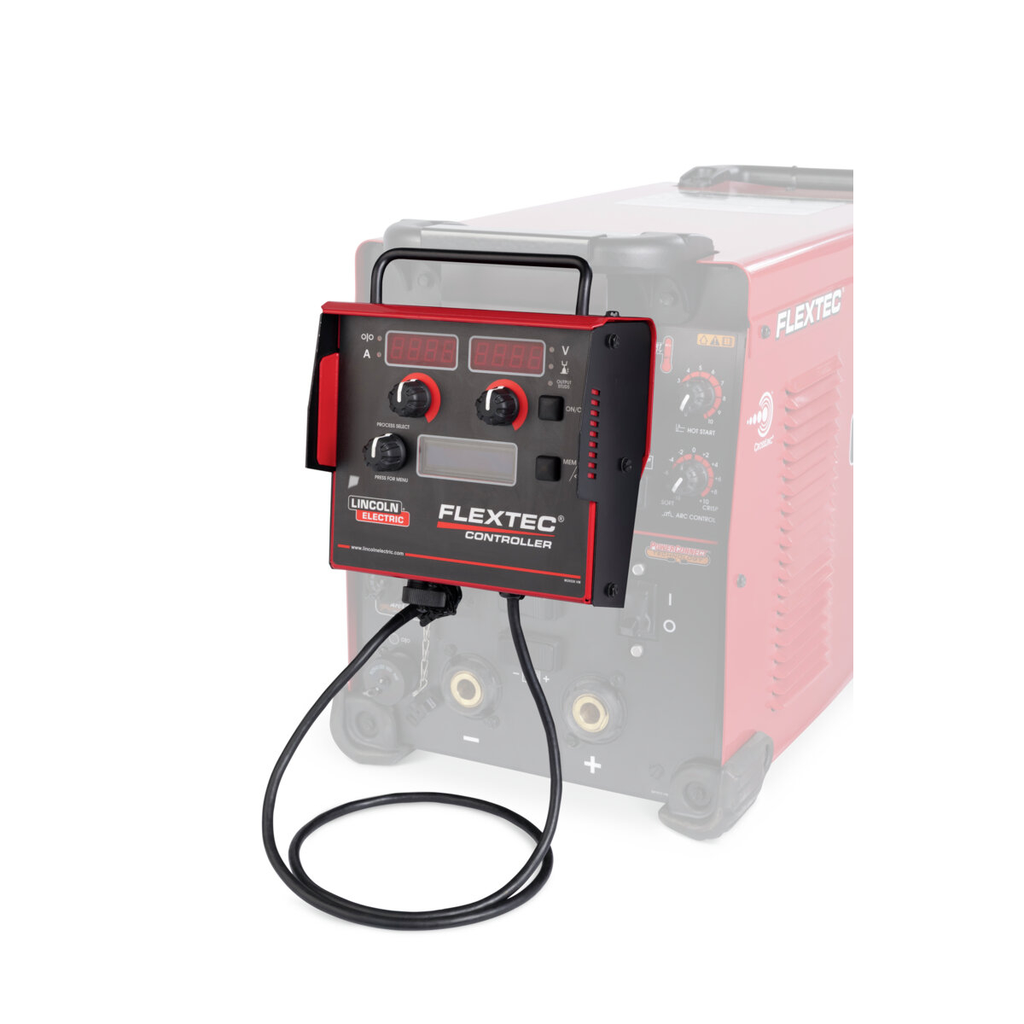

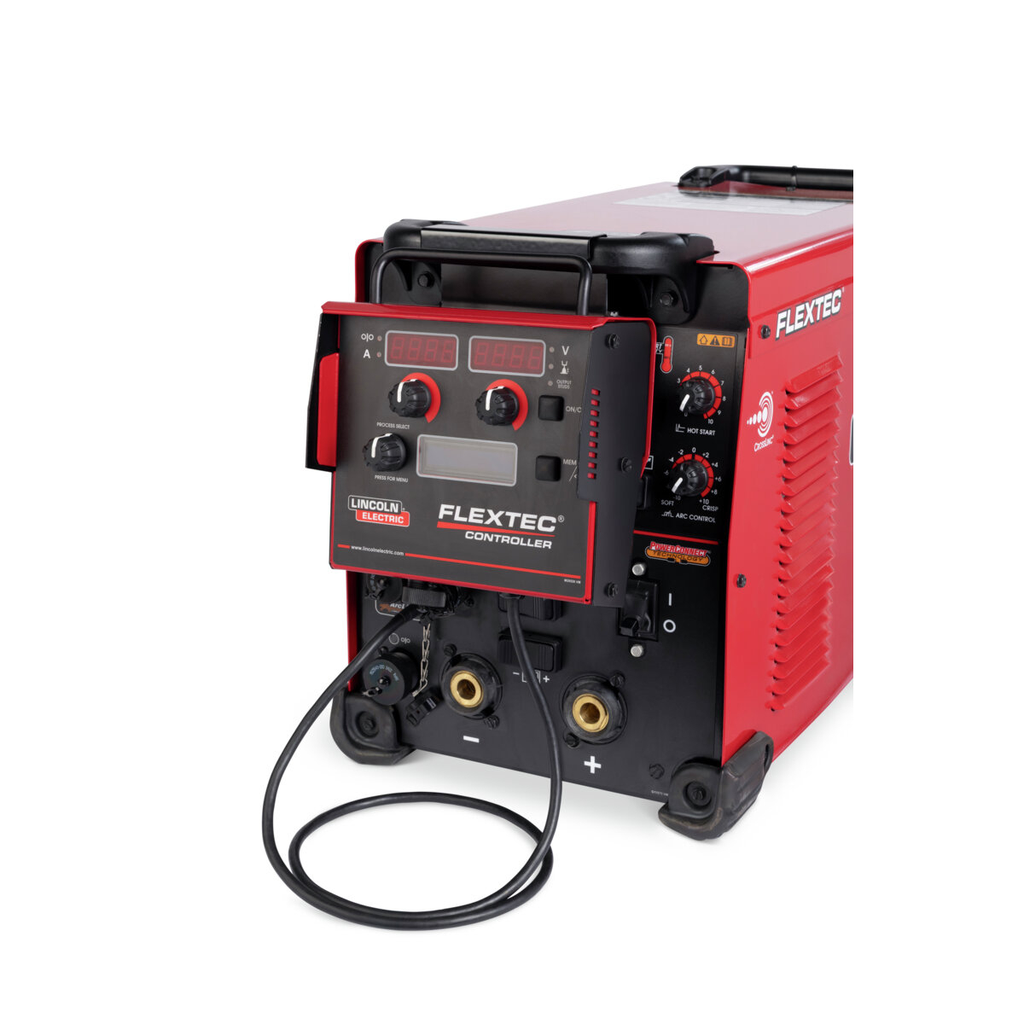

• Field Rated - IP23 rated for the toughest outdoor conditions and designed to hang for convenient storage.
• Spool Gun Control - Adapts the Magnum Pro 250LX GT Spool Gun to Flextecs and other power sources with a 12-pin amphenol.

• Weight: 10 lbs
• Length: 4 in
• Width: 8 in
• Height: 8.9 in
• Input Voltage: 40 VDC

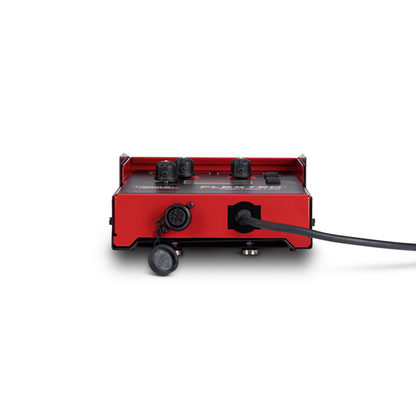

• Output Connector: 7-pin for Magnum PRO 250LX GT Spool Gun
• Compliance: IP23 Rated
• Country of Origin: United States
• Memory Capacity: Stores up to four procedures
