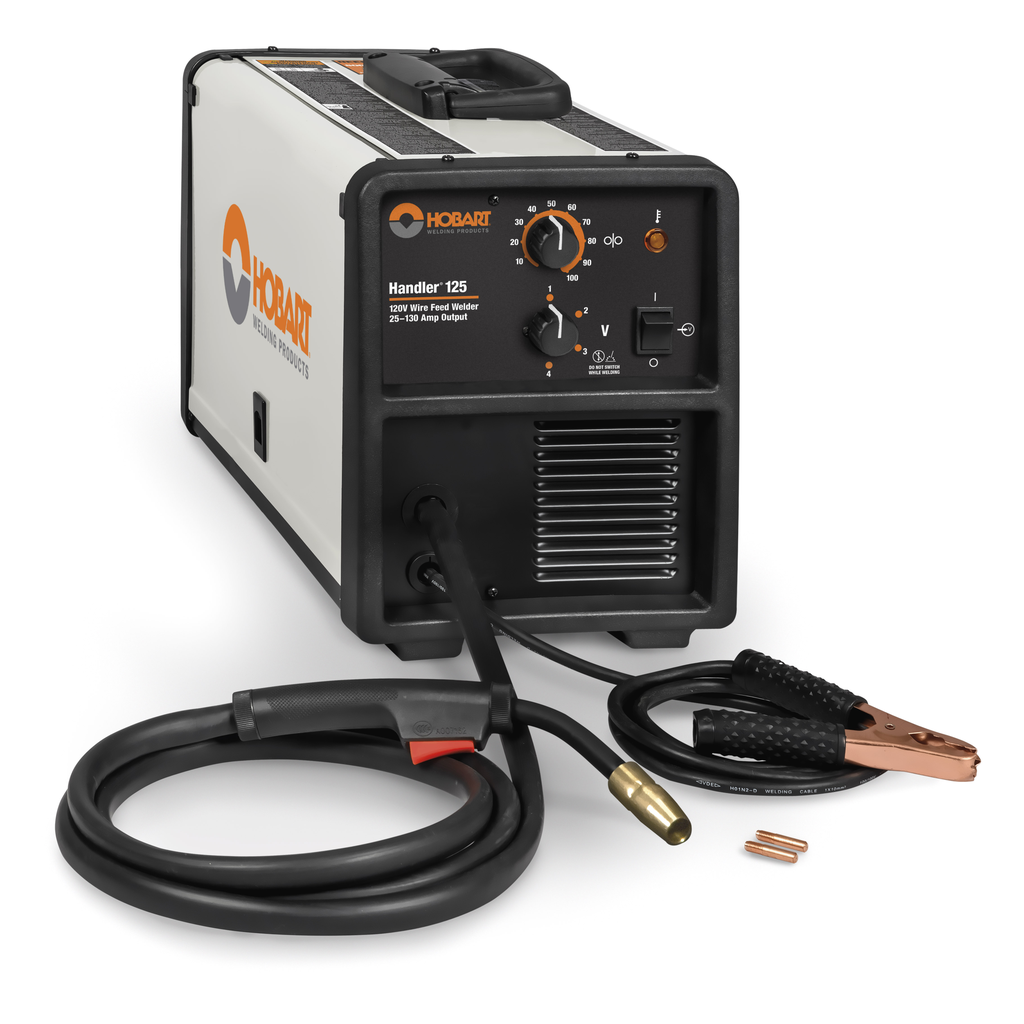

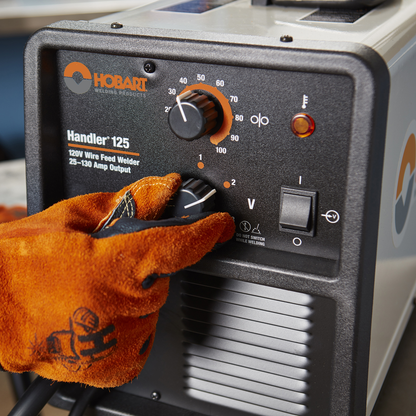

Hobart Welding Products, 500573, MIG Welder, 120V, 25 130 Amps, 24 ga to 3/16 in Mild Steel

120V MIG welder. Welds 24 ga. to 3/16 in. mild steel. Easy to set up, smooth arc, and built for everyday welding tasks—no fuss, just results.

Features

• Durable feed head with quick-release drive roll tension lever: Positive feed with adjustable tension gives you easy access to thread new wire.

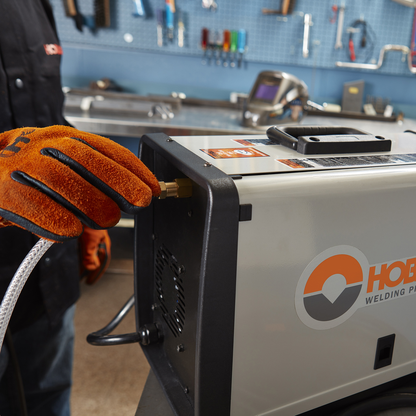

• Factory-installed gas solenoid: Easy for you to change from flux-cored wire to MIG welding.
• Spool hub assembly accommodates 4- or 8-inch spools: Offers you flexibility to use small or large spools of wire to better suit your welding needs.
• Built-in contactor: Eases use and excellent safety feature which makes wire electrically \"cold\" until trigger is pulled.
• Four output voltage settings: Four voltage ranges allow you to adjust the arc for different thicknesses.
• Self-resetting thermal overload protection: Protects power transformer from thermal overload to provide you maximum reliability.
• Broad output range of 25 – 130 Amps.: Allows you to weld up to 1/8 in. steel with flux-cored wire.

• Voltage: 110/115/120 V
• Amperage Range: 25 130 A
• Rated Output: 80 A at 25% duty cycle
• Max Open Circuit Voltage: 28 VDC
• Wire Feed Speed Range: 88 545 IPM
• Material Thickness Range (Mild Steel): 24 ga (0.8 mm) - 3/16 in (4.8 mm)
• Length: 19.4 in
• Height: 13.5 in
• Width: 10 in
• Weight: 57.5 lb
• Weldable Metals: Stainless Steel, Steel
• Input Phase: 1-Phase
• Current Type: DC
• Weld Output: CV
• Wire Diameter Range: Solid Steel 0.024 in. - 0.03 in.; Flux Cored 0.03 in. - 0.035 in.; Flux Cored 0.8 mm - 0.9 mm
• Country of Origin: China
