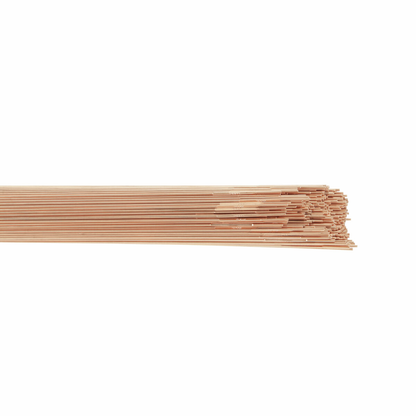

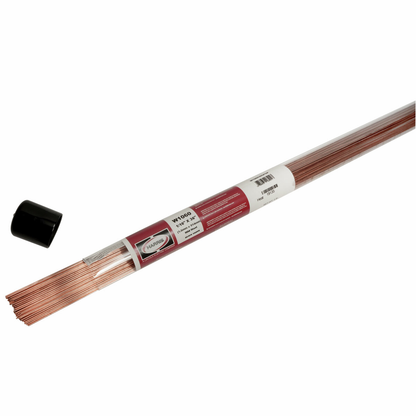

Harris Products Group, W1060710, Welding Alloy, RG45, Copper Coated, Low Carbon Steel

W1060 (RG45) is a general purpose, copper coated, TIG (GTAW) low carbon steel alloy that is widely used on mild steel. It offers good ductility and machinability.

Features

• Conforms to AWS A5.2, RG45
• Can be used on steel plate, sheet and pipe where high strength is not required
• Weld on clean base metal to ensure the best results
• Copper coated, low carbon steel, rod for oxy-fuel welding of mild steel
• Typical applications include welding low carbon steel, automotive repair and ornamental art
• Marked with model number on each end for easy identification after use
• No flux required but puddling of the molten metal will bring any scale or impurities to the surface
• Produces high quality welds that are ductile and porosity-free
• Good ductility and machinability

• Weight: 1.02 lbs
• Classification: AWS A5.2, RG45, ASME SFA 5.2
• Material: Copper-coated low carbon steel
• Carbon Content: 0.08% max
• Chromium Content: 0.20% max
• Manganese Content: 0.50% max
• Copper Content: 0.30% max
• Sulfur Content: 0.04% max
• Silicon Content: 0.10% max
• Nickel Content: 0.30% max
• Phosphorus Content: 0.035% max
• Aluminum Content: 0.02% max
• Molybdenum Content: 0.20% max
• Iron Content: Balance
• Tensile Strength: 45,000 psi
• Welding Type: TIG (GTAW), Oxy-Fuel
