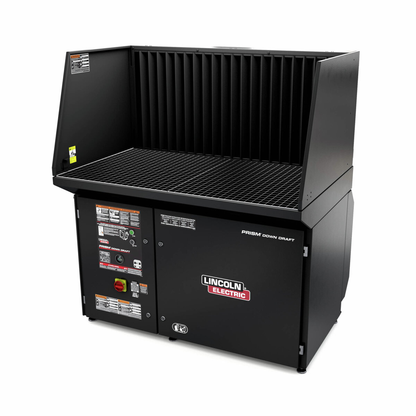

Lincoln Electric, K2751-10, DownDraft Table, 54.7 in Width; 39.2 in Depth; 3 Phase; MERV 16

The Prism DownDraft® table is a compact table that can be placed in multiple locations around a welding shop. It combines a workbench and extraction unit specifically designed for the removal of welding fume. The table can be used to remove particulate and dust from metal grinding applications, as well as fume and particulate from light duty plasma arc cutting applications, making the table a safe and effective workplace.

Features

• Strong Backdraft (80%) and Downdraft (20%) Extraction Capacity - Ideal for welding, grinding(2), and light duty plasma cutting. (max 50 amps)
• Three Stage Spark Arrestor System - Captures hot particulate before it can get into the filter chamber.
• Simple Operation and Easy Maintenance - All controls and particulate collection drawers are easily accessible from the front of the Down Draft table.
• Cleaner work environment - Removes welding, cutting and grinding fume at the source.
• Low noise level: Without options: 78 dB(a). With Silencer: 78 dB(a). With Silencer & HEPA Kit: 71 dB(a).
• Disposable (Non-cleaning) Filter - Large filter surface area results in longer filter life and reduced maintenance costs.

What's Included?

• (1) Prism DownDraft Table

• Input Voltage: 208-230/460 V
• Input Current: 11.7-10.5/5.4 A
• Input Phase: 3
• Frequency: 60 Hz
• Filter Type: MERV 16 (HE)
• Filter Surface Area: 560 ft2 (52 m2)
• Dimensions (H x W x D): 61.6 x 54.7 x 39.2 in (1565 x 1389 x 996 mm)
• Work Surface Height: 37 - 38.5 in (940 - 978 mm)
• Weight: 683 lbs (311 kg)
• Material Handling Capacity: 440 lbs (200 kg) work load
• Spark Arrestor System: Three stage
• Noise Level: 78 dB(a) without options, 74 dB(a) with silencer, 71 dB(a) with silencer & HEPA kit
• Warranty Length: 3 Years
• Country of Origin: United States
• Product Type: Prism
• Style: Downdraft Table
