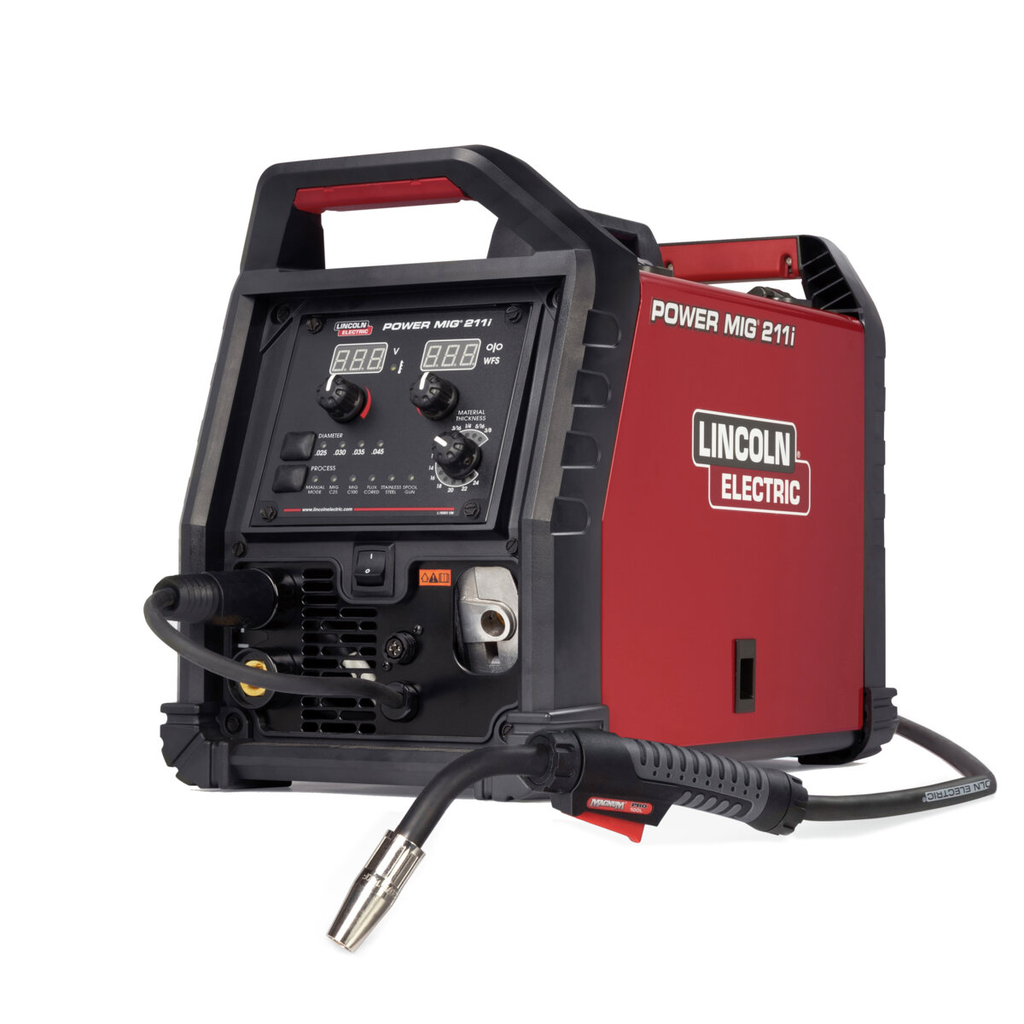

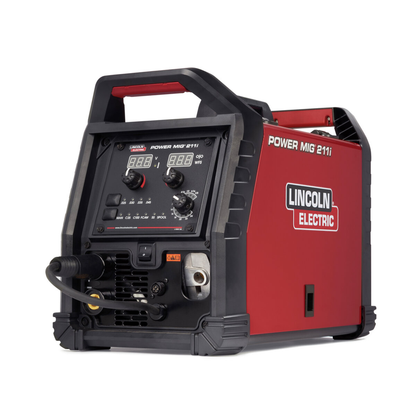

Lincoln Electric, K6080-1, MIG Welder, 230V/120V Dual Input, 175A Max Output, 10 ft Work Cable

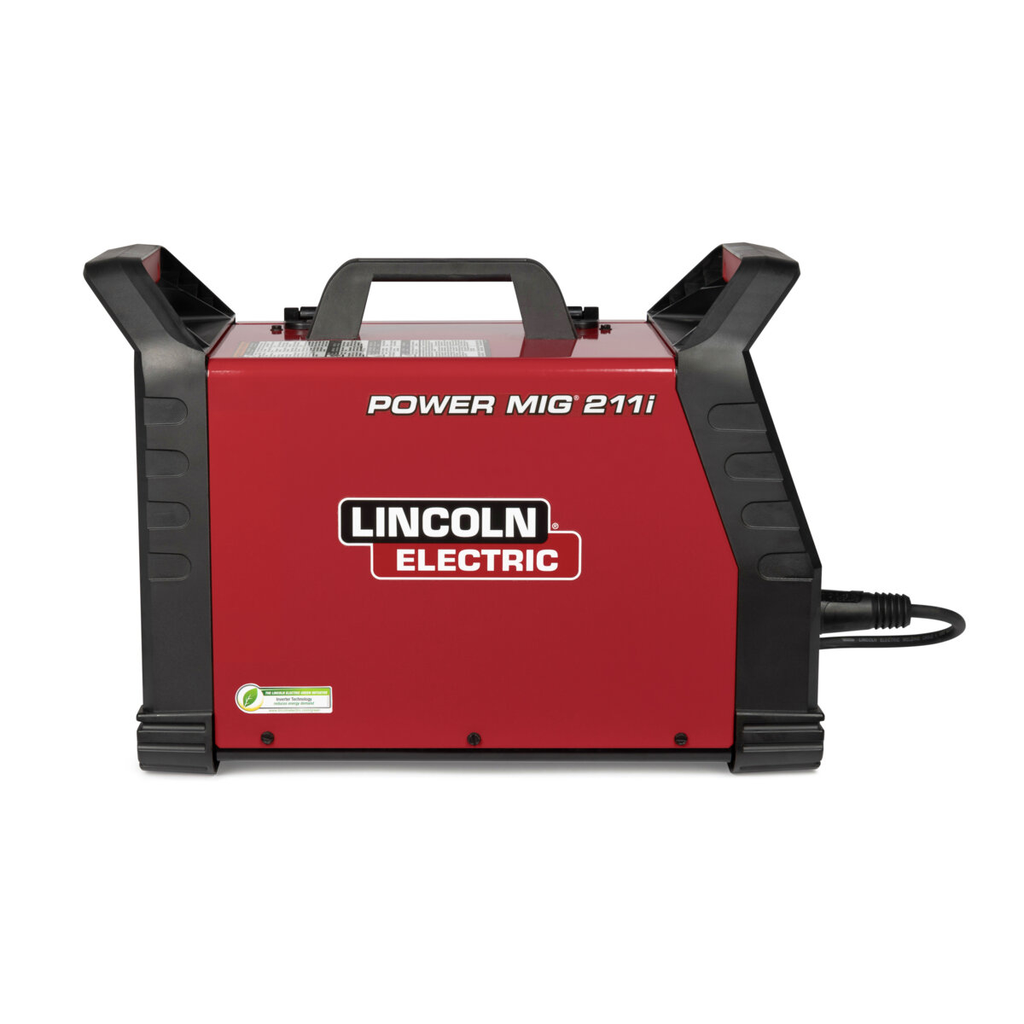

SOLID, DEPENDABLE WELDING. The POWER MIG® 211i MIG welder is a straightforward and dependable machine that’ s ideal for MIG and flux-cored welding. This reliable diehard is your best friend on the farm, in the small shop, or for maintenance and repair work. The seven-segment display with basic knob controls and a simple three-step setup process gets you welding quickly - and when it’ s time to move, the sleek case with multiple lift points make it extremely portable. If you’ re looking for an incredibly simple, reliable MIG welder that won’ t break the bank, the POWER MIG 211i MIG welder is ready to go to work for you.

Features

• Process Capabilities - MIG, Flux-Cored and Spool Gun.

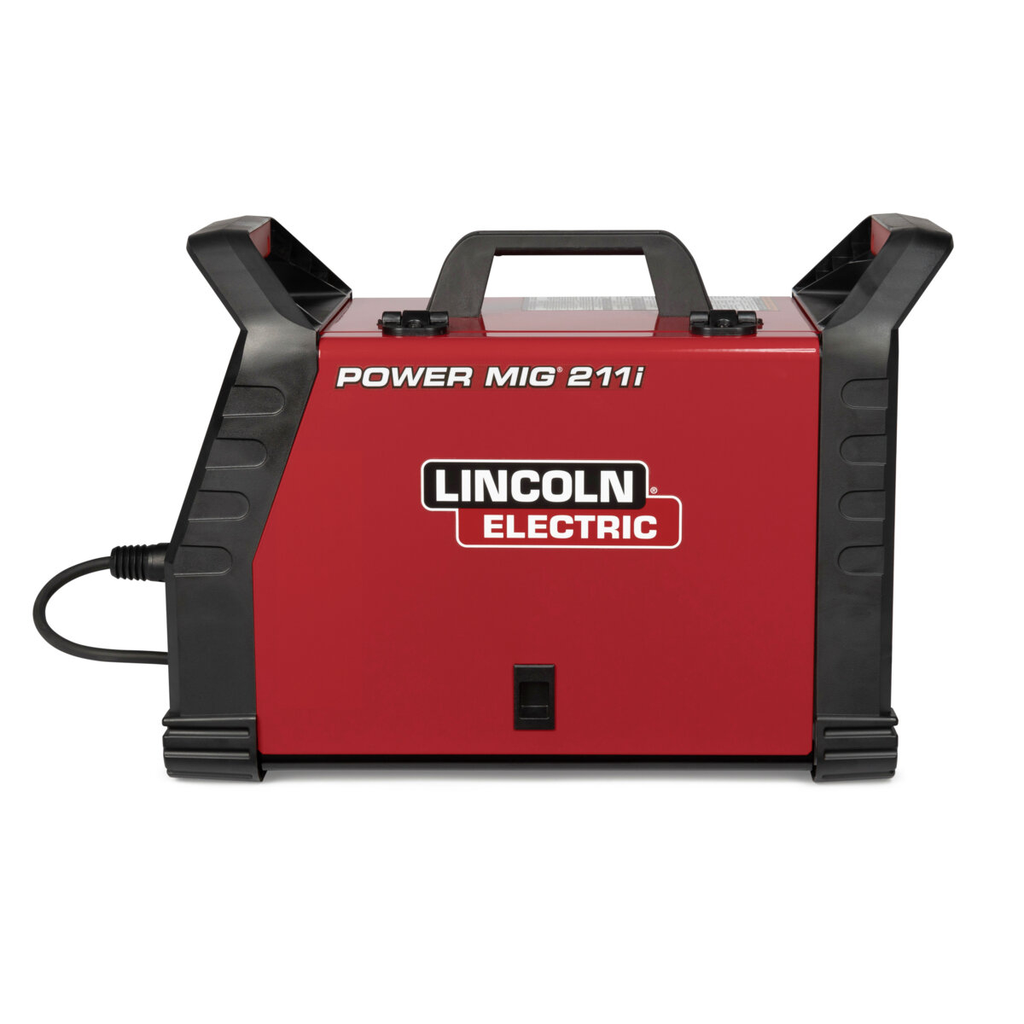

• Ergonomic Case - Sleek and robust case design with multiple lift points for ease of mobility around the shop.
• Robust and Reliable Wire Drive - Ensures proper and consistent feeding for optimal welding experience.

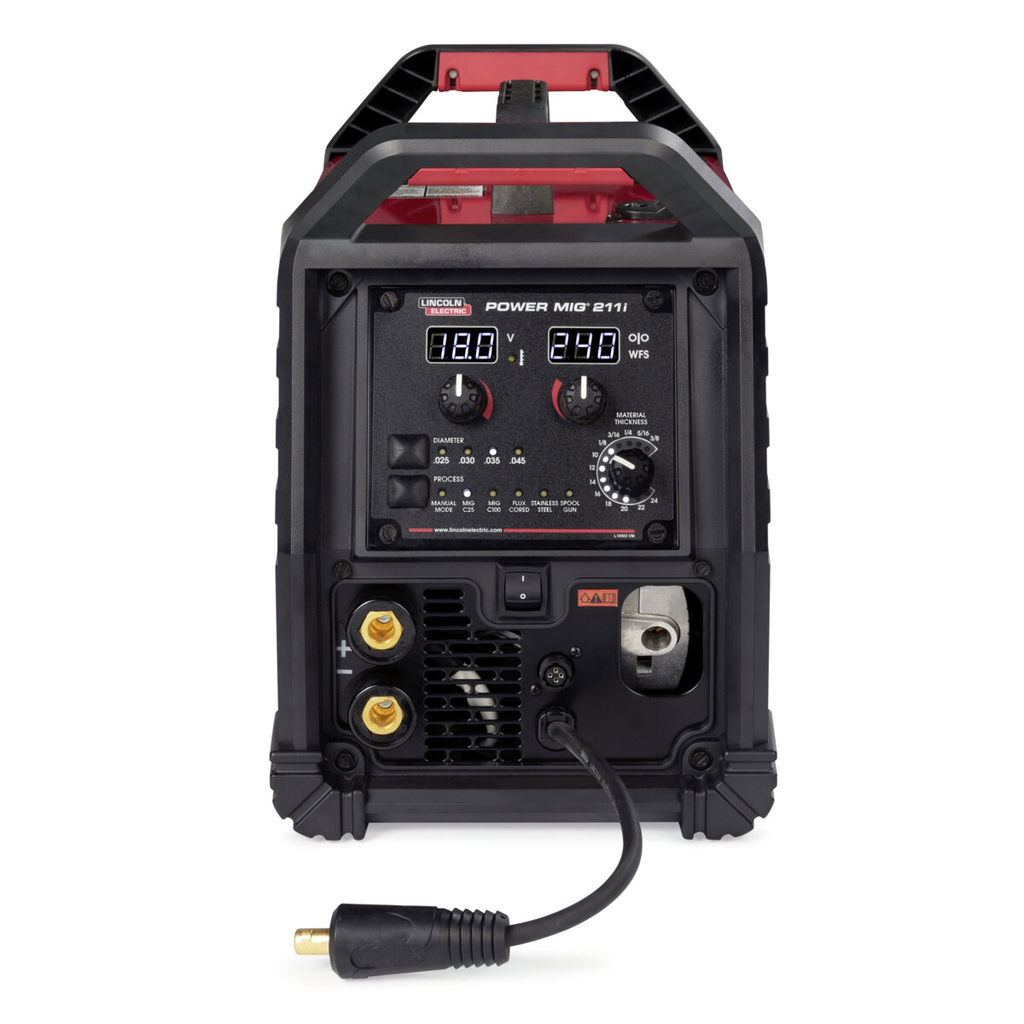

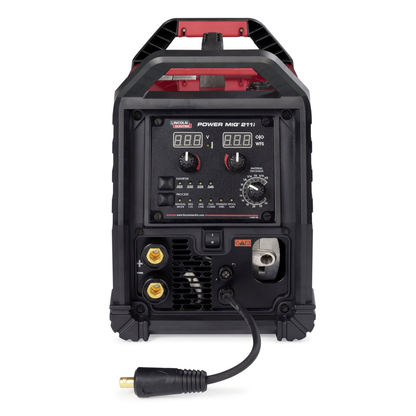

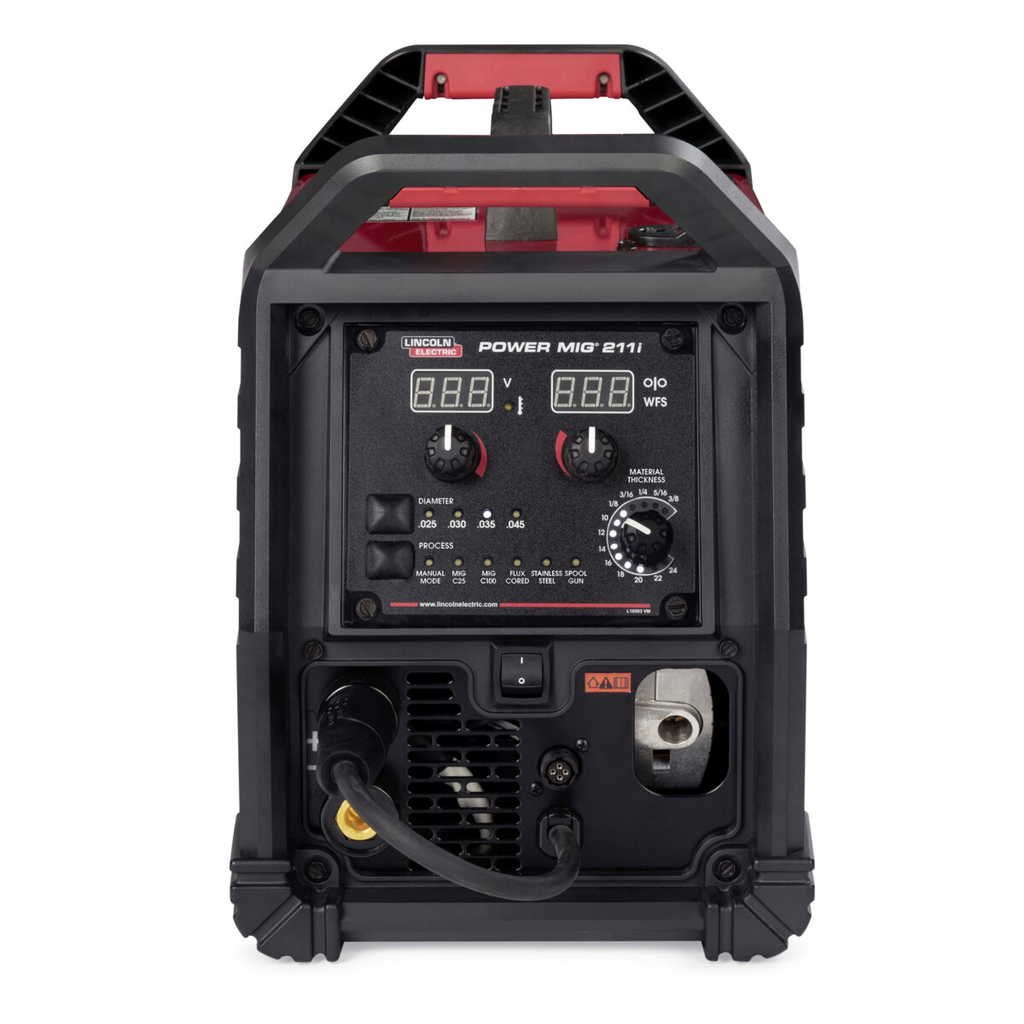

• Simple user interface - Seven segment display with basic knob controls.
• Lightweight and Portable - Only 41 lbs
• Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.

What's Included?

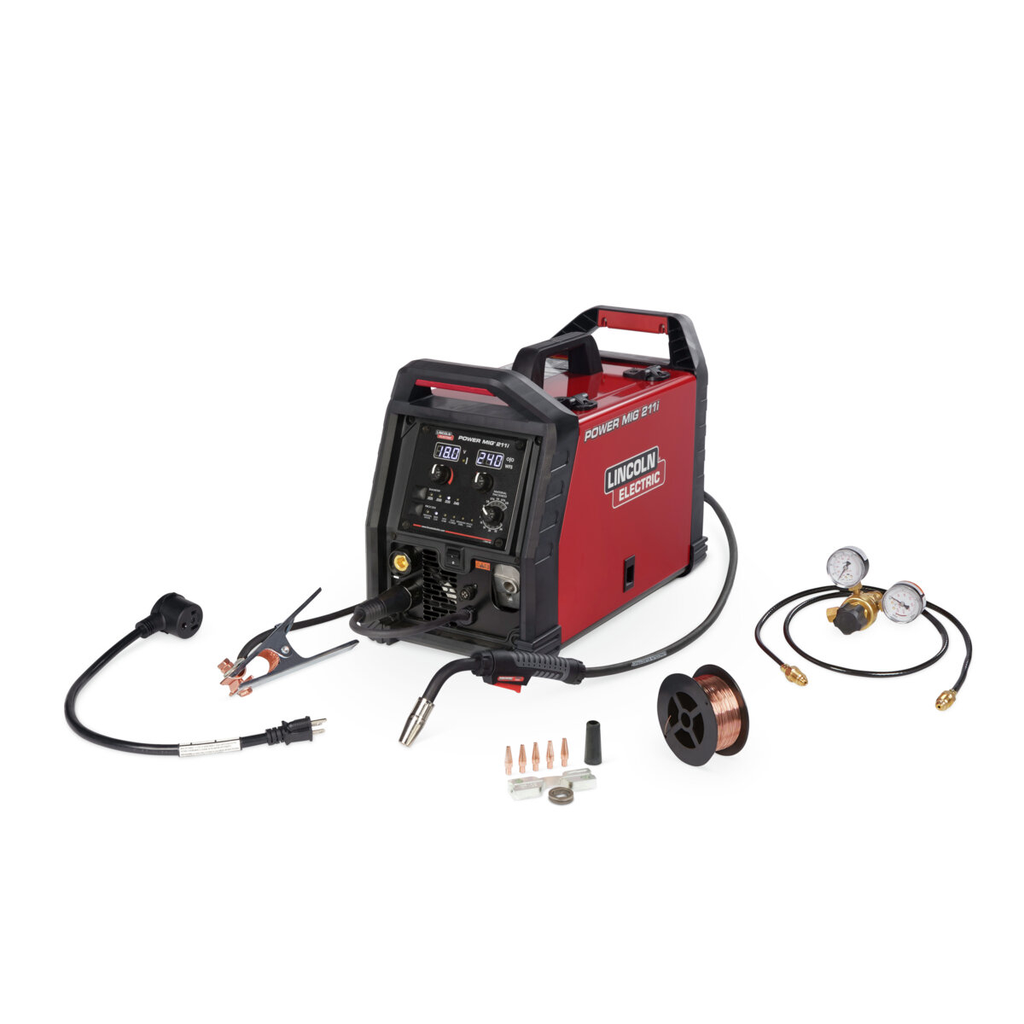

• Magnum® PRO 100L Gun 10 ft. (3.0 m) (K4528-1), 230V to 120V power cord adapter, Work Cable and Clamp, Adjustable Gas Regulator and Hose, Gas Nozzle, Gun Cable Liner (pre-installed in gun), Spindle Adapter, Sample 2 lb (0.91 kg) Spool of SuperArc® L-56® Mild Steel MIG Wire(EDO30631), 0.030-0.035in. (0.8 - 0.9 mm) Drive Roll (Installed), 0.030 - 0.045 in. (0.8 - 1.1 mm) Knurled Drive Rolls, and 0.025 - 0.035 in. (0.6 - 0.9 mm) Wire Guide (Installed)

• Output Current Range: 20-211A DC
• Rated Output Current: 175A @ 22.8V, 30% duty cycle
• Max Open Circuit Voltage: 76V
• Input Voltage: 120/230 V
• Input Frequency: 60 Hz
• Input Phase: Single Phase
• Input Current: 15A @ 120V, 15A @ 230V
• Process Capabilities: MIG, Flux-Cored, Spool Gun
• Wire Feed Length: 10 ft (3.0 m)
• Dimensions: 15.5 x 10.75 x 22 in (394 x 273 x 558 mm)
• Weight: 41 lb (18.6 kg)
• Drive Rolls: 0.030-0.035 in (Installed), 0.030-0.045 in Knurled
• Wire Guide Size: 0.025-0.035 in
• Material of Included Wire: Mild Steel
• Compliance: IP21S
• Country of Origin: Mexico
• UI Type: Meters
• Equipment Technologies: Analog Communication
• Work Lead Connector Type: Dinse
• Sample MIG Wire Included: Yes
• Work Clamp Included: Yes
• Contact Tips Included: Yes
• Spool Gun Compatible: Light Duty
• Mode Icon: CV
• Output Mode: CV
• Output Polarity: DC
• ArcLink Connector: No
• Tap or Continuous Control: Continuous
• Welding Technology: Inverter/Chopper
• Cooling: Air
• Machines Communication Technology: Analog
• Number of Operators per Machine: 1
• Warranty Length: 3 Years
