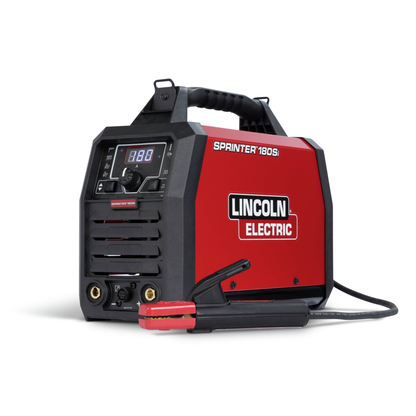

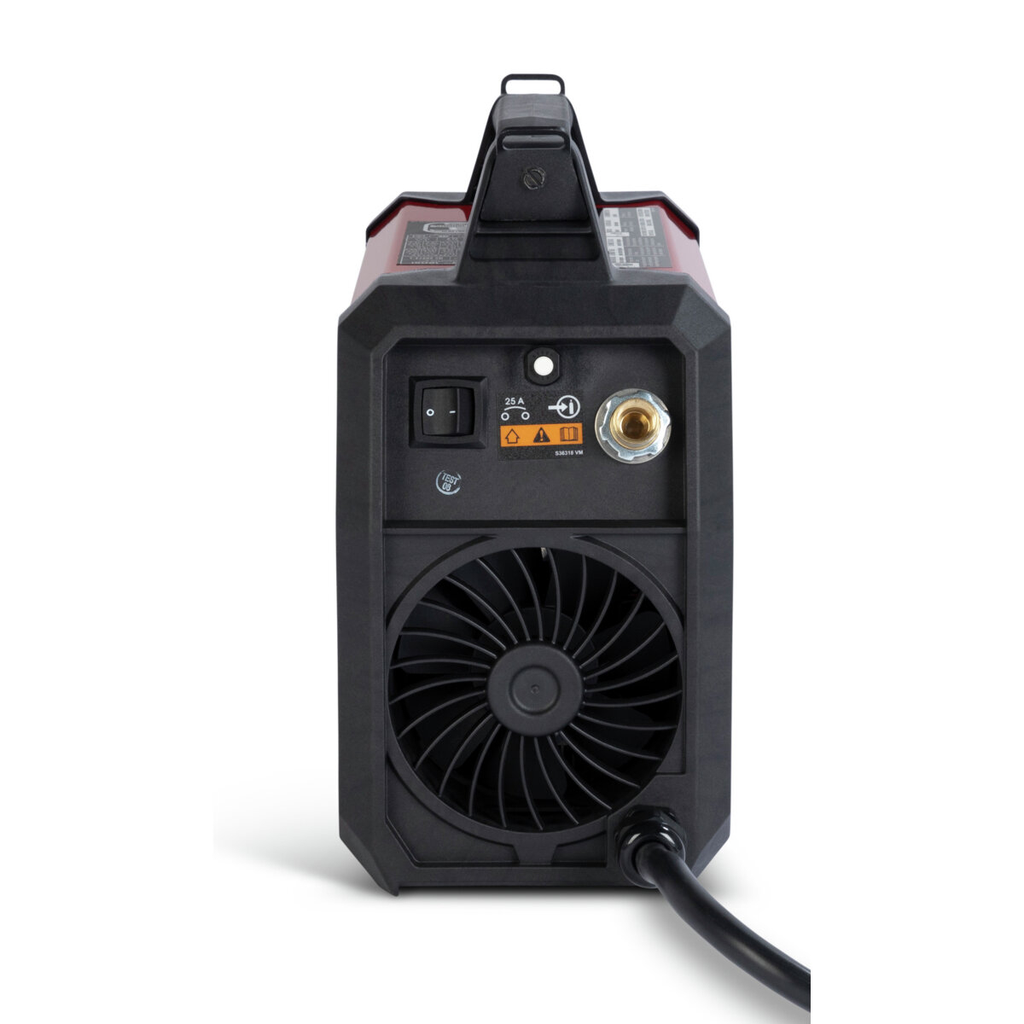

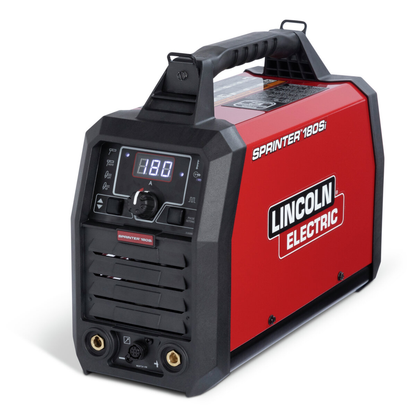

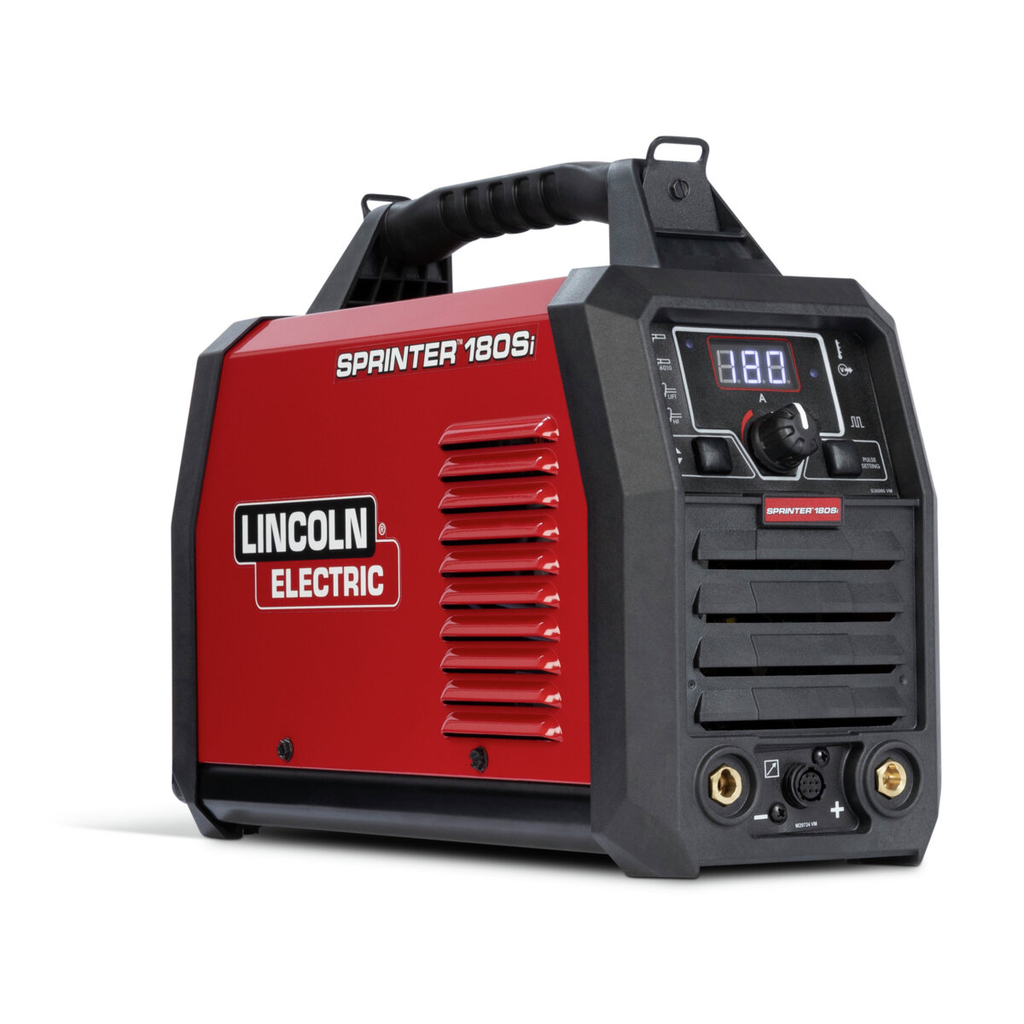

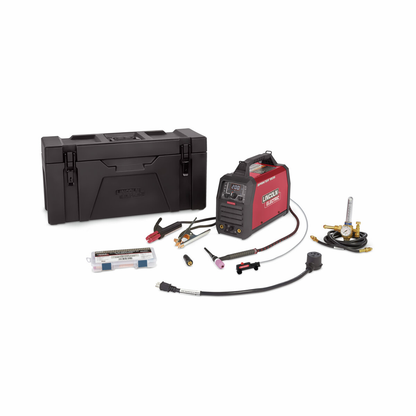

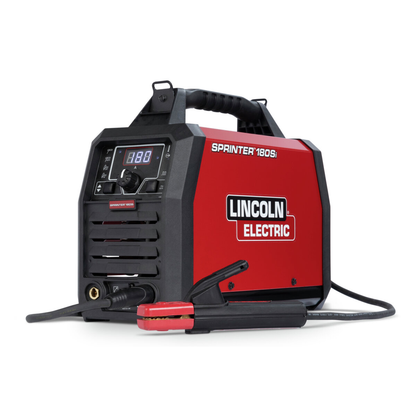

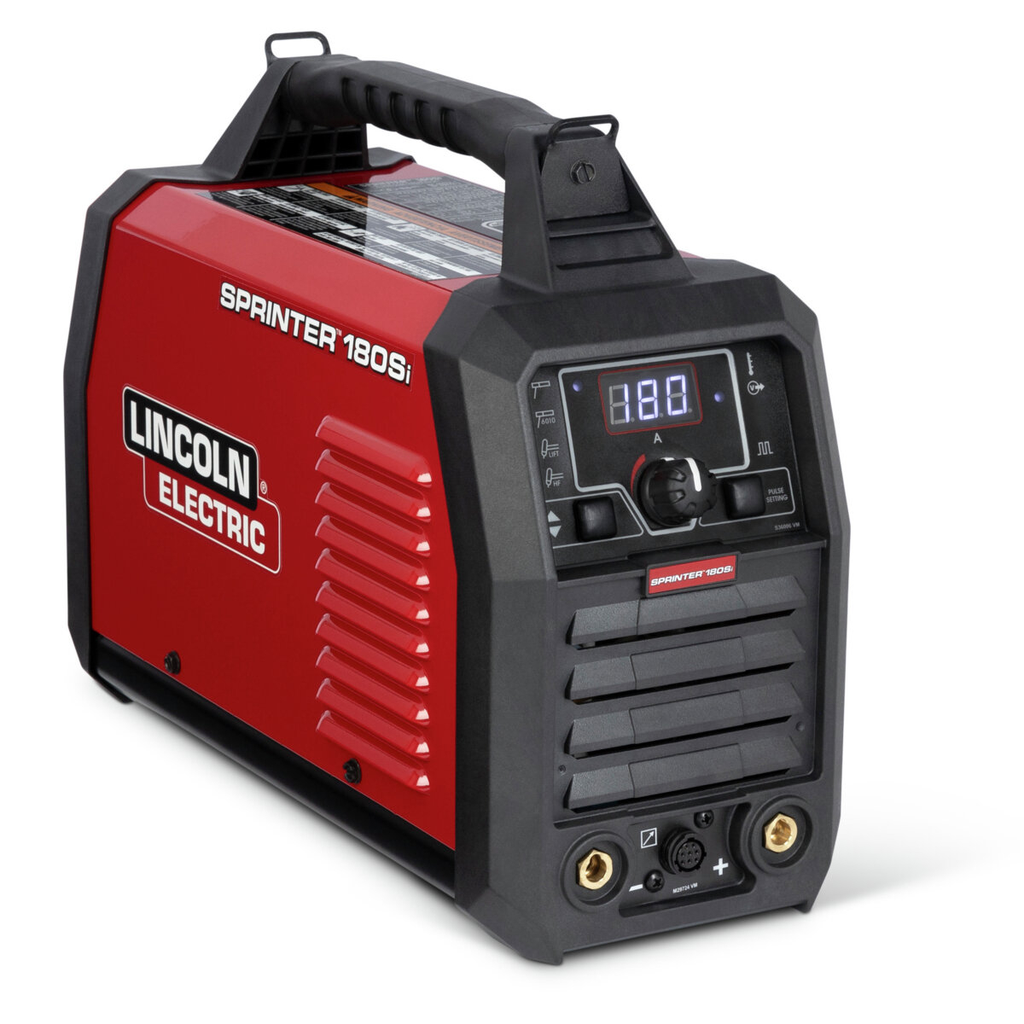

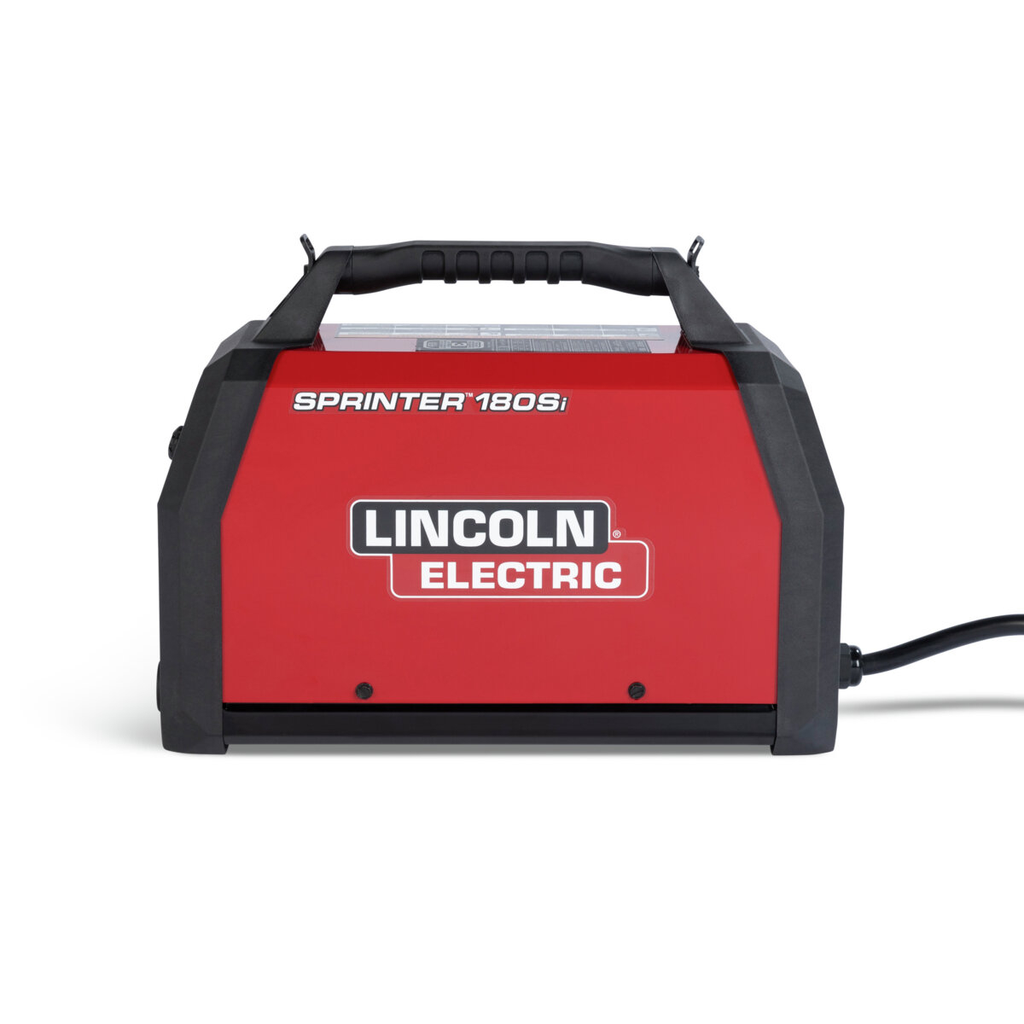

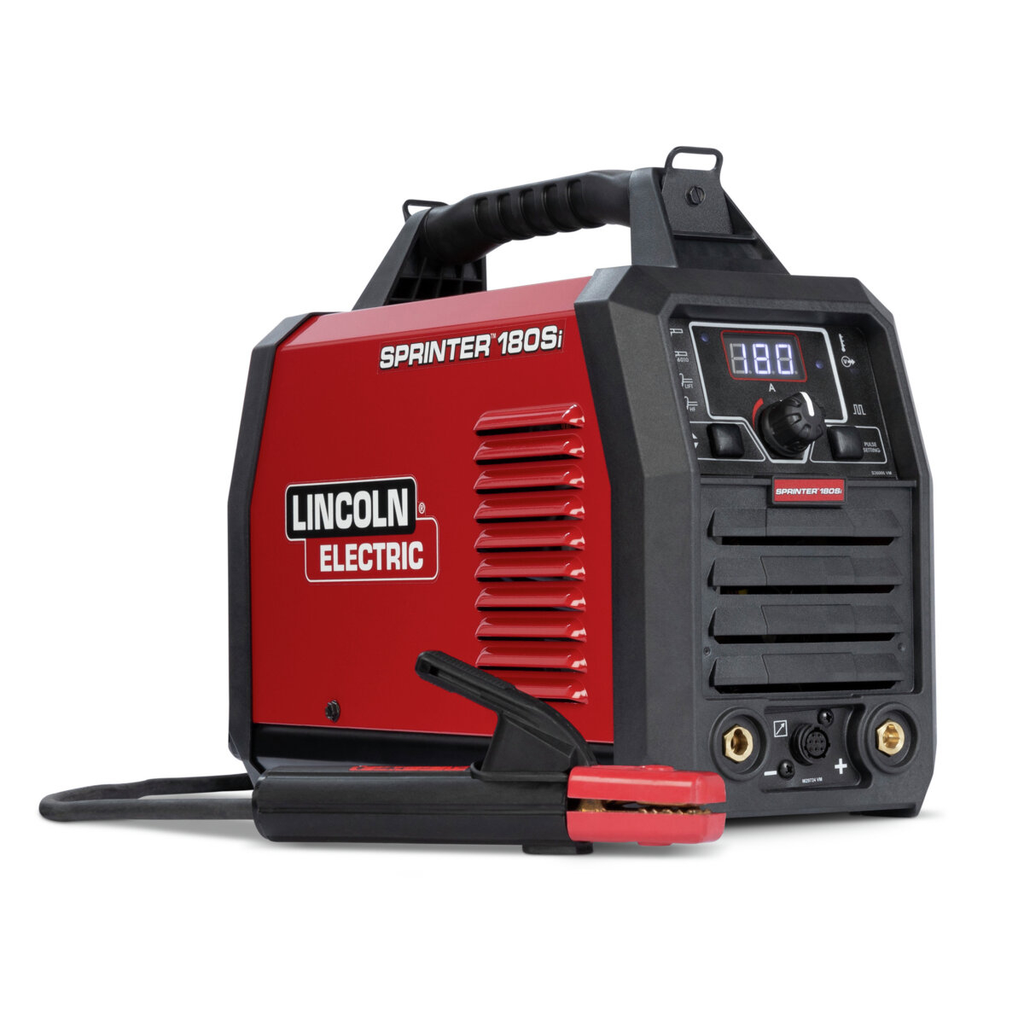

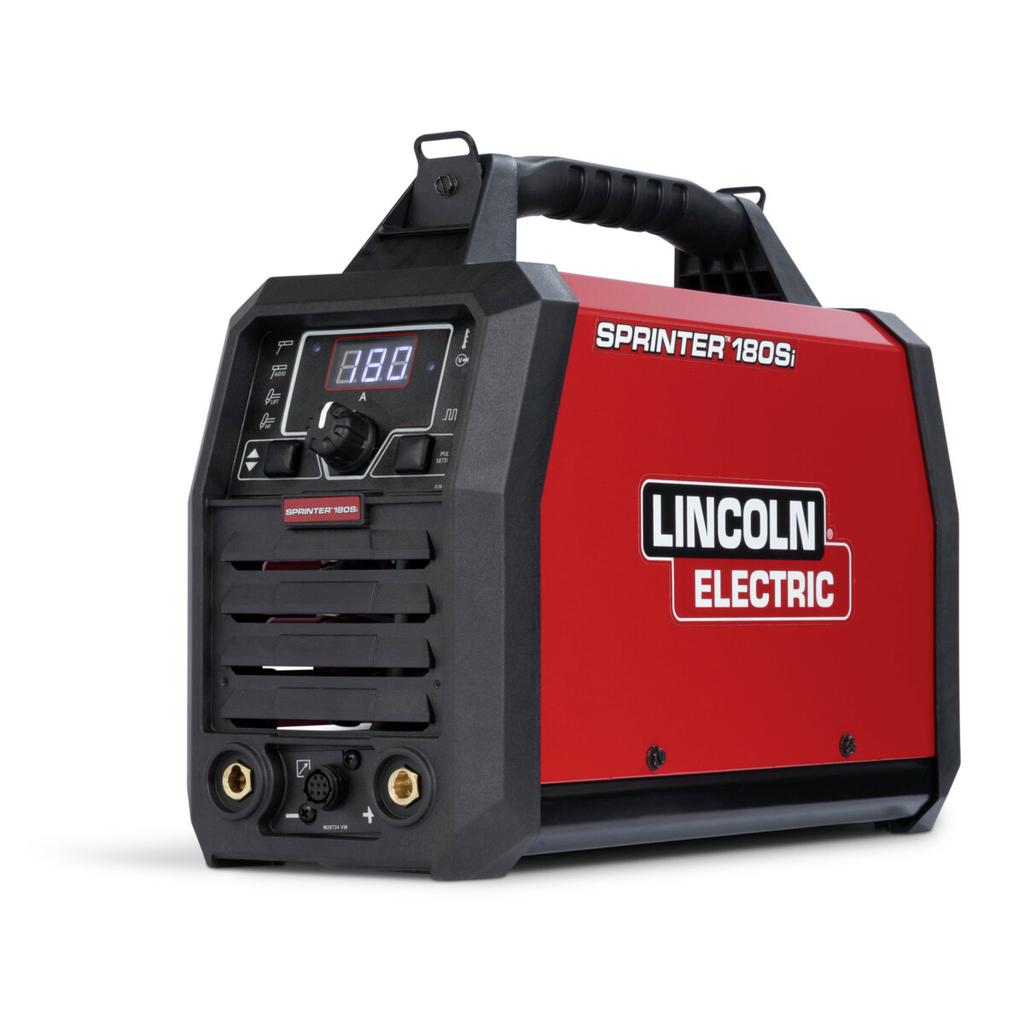

The Sprinter 180Si gives you power in a small package. Weighing in under 20 lbs., it's lightweight and portable, and the 180-amp output enables you to weld electrodes up to 5/32 inches, including 7018 and 6010. This machine is more than just a stick welder, the Sprinter 180Si combines superior stick capabilities with high-frequency TIG starting, pulsed TIG mode, amptrol compatibility, and dual input voltage (120V/230V). A simple display allows you to dial the weld settings so you can get started quickly and easily on any job anywhere – maintenance work, light-fabrication, light structural, and everything in between. The Sprinter 180Si is a stick/TIG welder that has an environmental rating of IP23 for outdoor use and has a rugged, impact resistant case.
Features
- Dual Input Voltage - 120V and 230V inputs so you can plug into any common power supply.
- Two Stick Modes - Crisp arc allows for greater welding versatility and superior performance on E6010 and E6011 electrodes while soft arc allows for dependable E7018 arc starting.
- Pulsed TIG Mode - Provides heat management and enhanced control when making thin, precise welds.
- Multi-Process Capable - Welds DC Stick and DC TIG.
- Lightweight Portability - This durable machine weighs under 20 lbs. and is easy to carry with its ergonomic handle or included shoulder strap.
-
Amperage: 180A
-
Input Voltage: 120V, 230V
-
Duty Cycle: 120V: TIG 110A/40%, Stick 85A/40%; 230V: TIG 200A/25%, Stick 180A/25%
-
Open Circuit Voltage: Average 65V, Peak 110V, VRD 14V
-
Processes: DC Stick, DC TIG, Pulsed TIG
-
Stick Electrode Size: up to 5/32 in
-
Stick Modes: E6010, E6011, E7018
-
Pulsed TIG Mode: 0.1 - 100 pulses per second
-
High Frequency TIG Starting: Yes
-
Dimensions: 11.8 x 6.25 x 16 in (299.7 x 158.8 x 406.4 mm)
-
Weight: under 20 lbs
-
Environmental Rating: IP23
