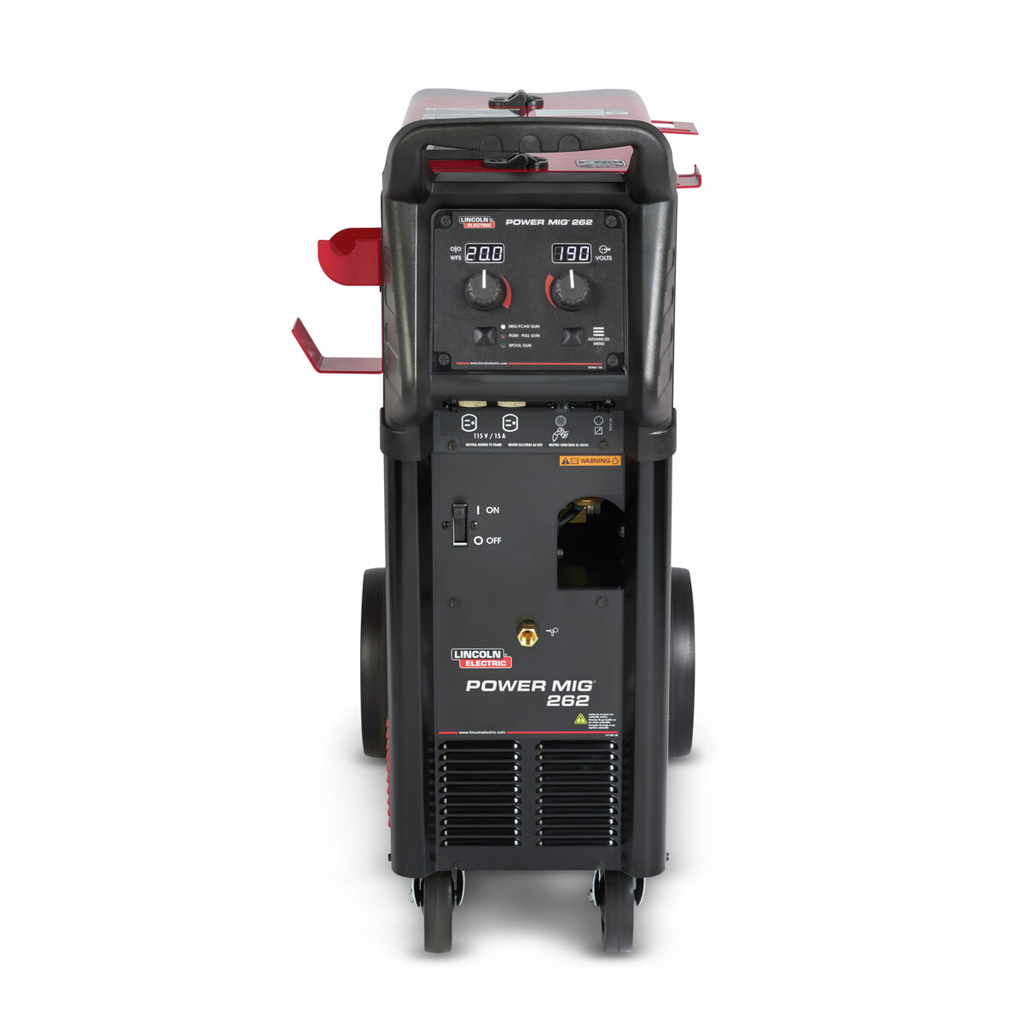

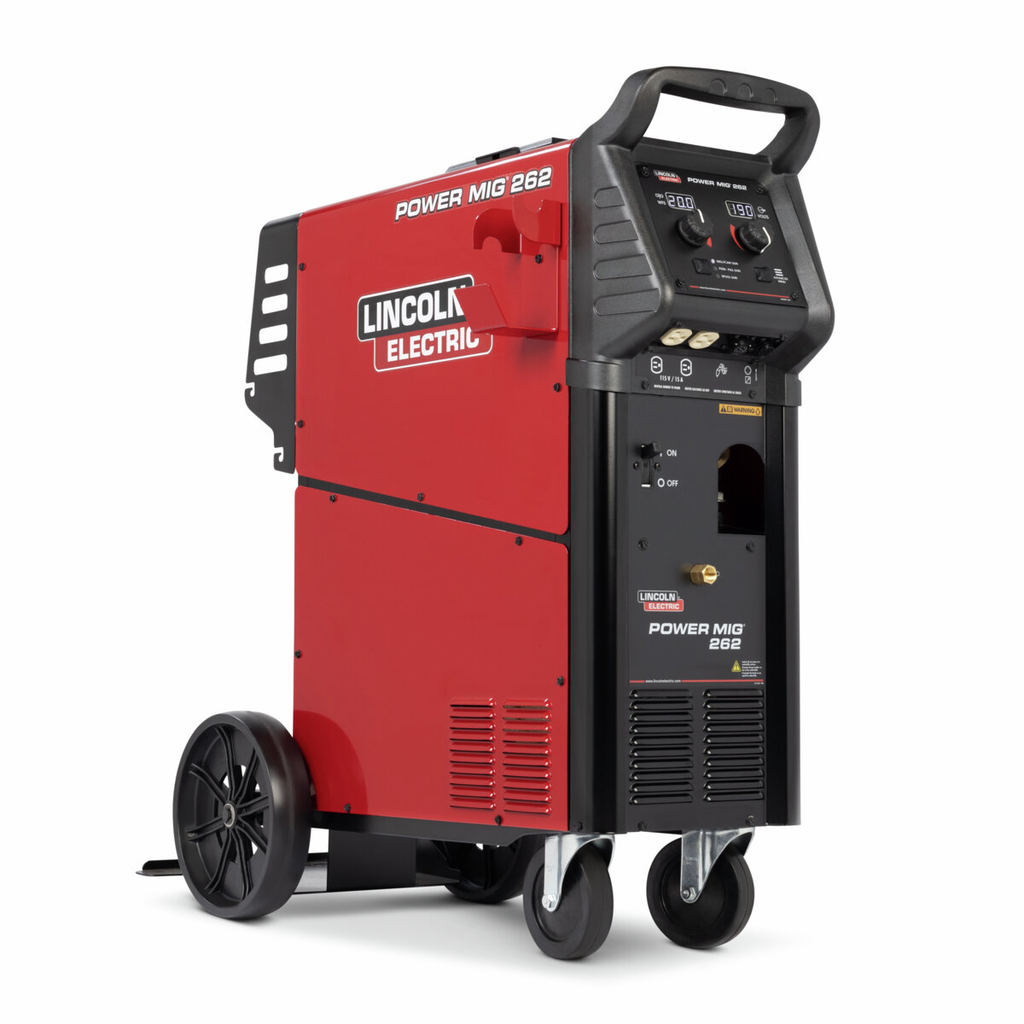

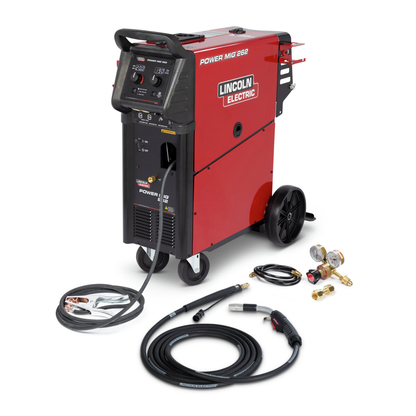

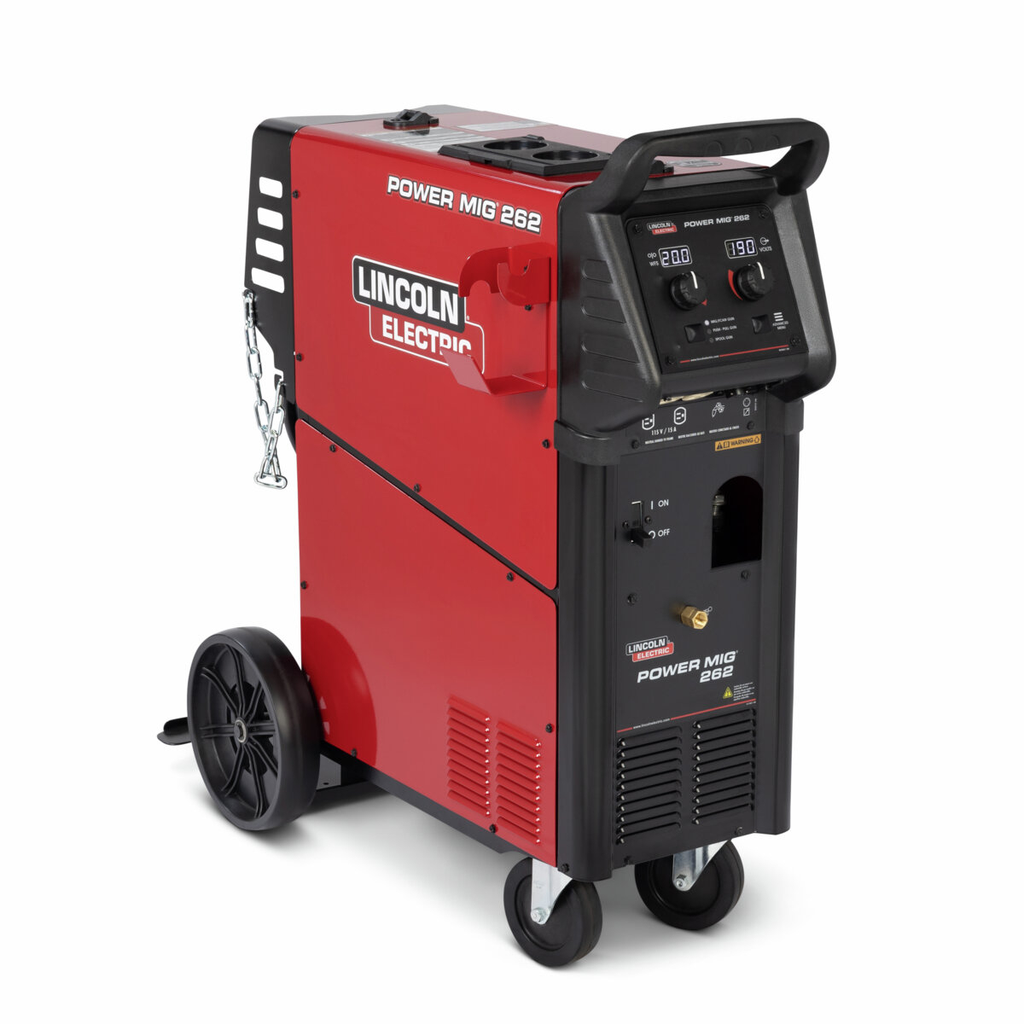

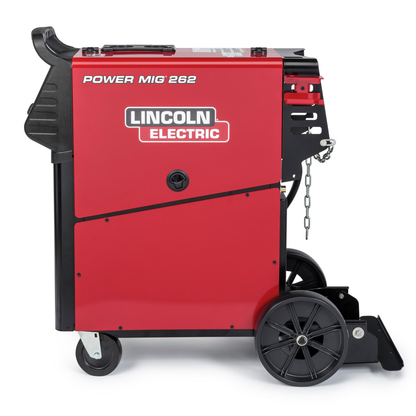

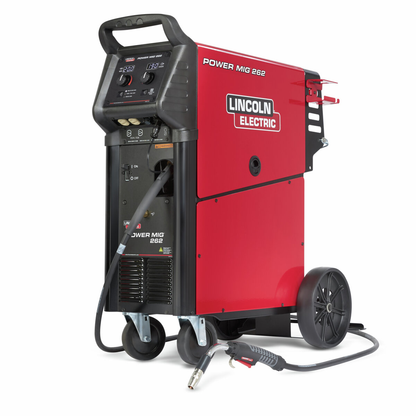

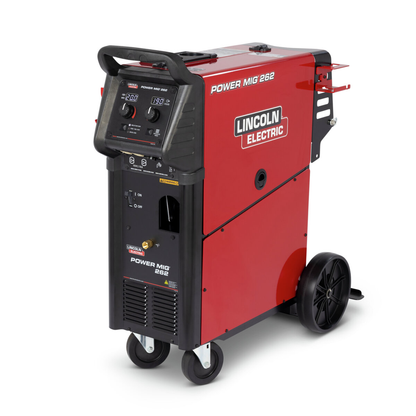

Lincoln Electric, K5706-1, MIG Welder, 300 Amp Max Output, Rugged Wire Drive, Simple User Interface

The POWER MIG® 262 welder sets the standard for simple, professional grade MIG and Flux-Cored welding. With a powerful 300-amp max output, the POWER MIG® 262 delivers all the superior welding performance expected from the POWER MIG family, but with a streamlined interface to make the system as user-friendly and cost-efficient as possible.

Features

• Cable Management & Tool Holder
• Advanced settings - Run-In, Pre/Post Flow, Spot Timer, and Burn-back
• Process Capabilities - MIG, Flux-Cored, Push-Pull and Spool Gun.
• 300 Amp Max Output - Perfect for general fabrication, light industrial, and maintenance & repair.
• 3 Ways to Feed Aluminum - Electronics built in for all three methods using a Push Gun, Spool Gun or a Push-Pull Gun.
• 120VAC receptacles on front of machine

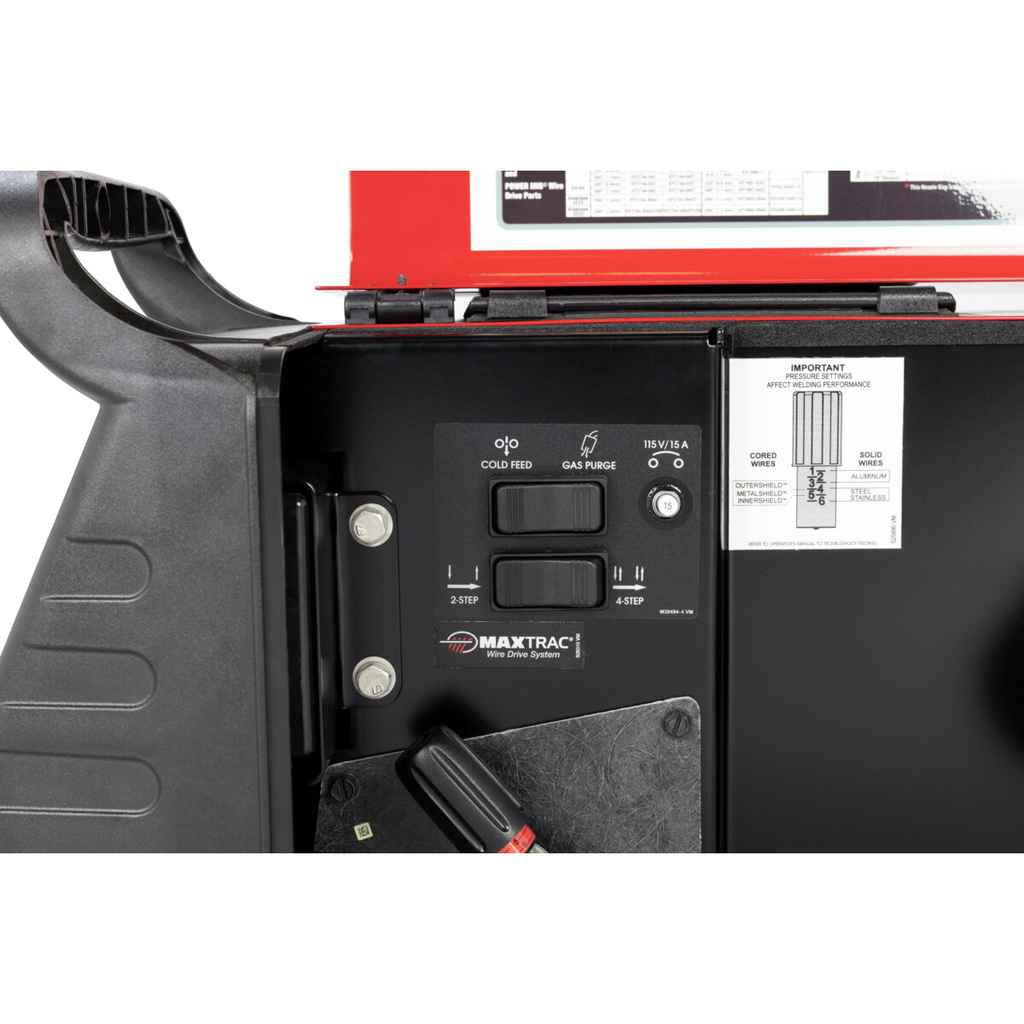

• Rugged MAXTRAC® Industrial Wire Drive - Allows for constant wire feed speed and consistent welds.
• Simple user interface - Seven segment display with basic knob controls.

• Max Output Amperage: 300 A
• Rated Output Current/Voltage/Duty Cycle: 230 A / 26.5 V / 60%
• Output Range: 5-300 Amps, 50-700 ipm Wire Feed Speed
• Max Open Circuit Voltage: 90 V
• Input Power: 208/230/460/575 V, Single Phase, 60 Hz
• Input Current @ Rated Output: 49.1/44/22.1/17.6 A
• Process Capabilities: MIG, Flux-Cored, Push-Pull, Spool Gun
• Feeding Methods for Aluminum: Push Gun, Spool Gun, Push-Pull Gun
• Wire Drive: Rugged MAXTRAC Industrial Wire Drive
• Advanced Settings: Run-In, Pre/Post Flow, Spot Timer, Burn-back
• Height: 37.5 in
• Width: 18 in
• Length: 37.5 in
• Weight: 265 lbs
• Country of Origin: Mexico
