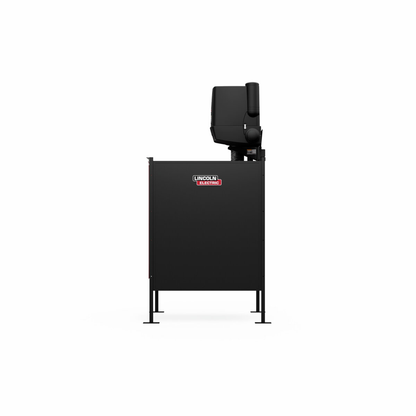

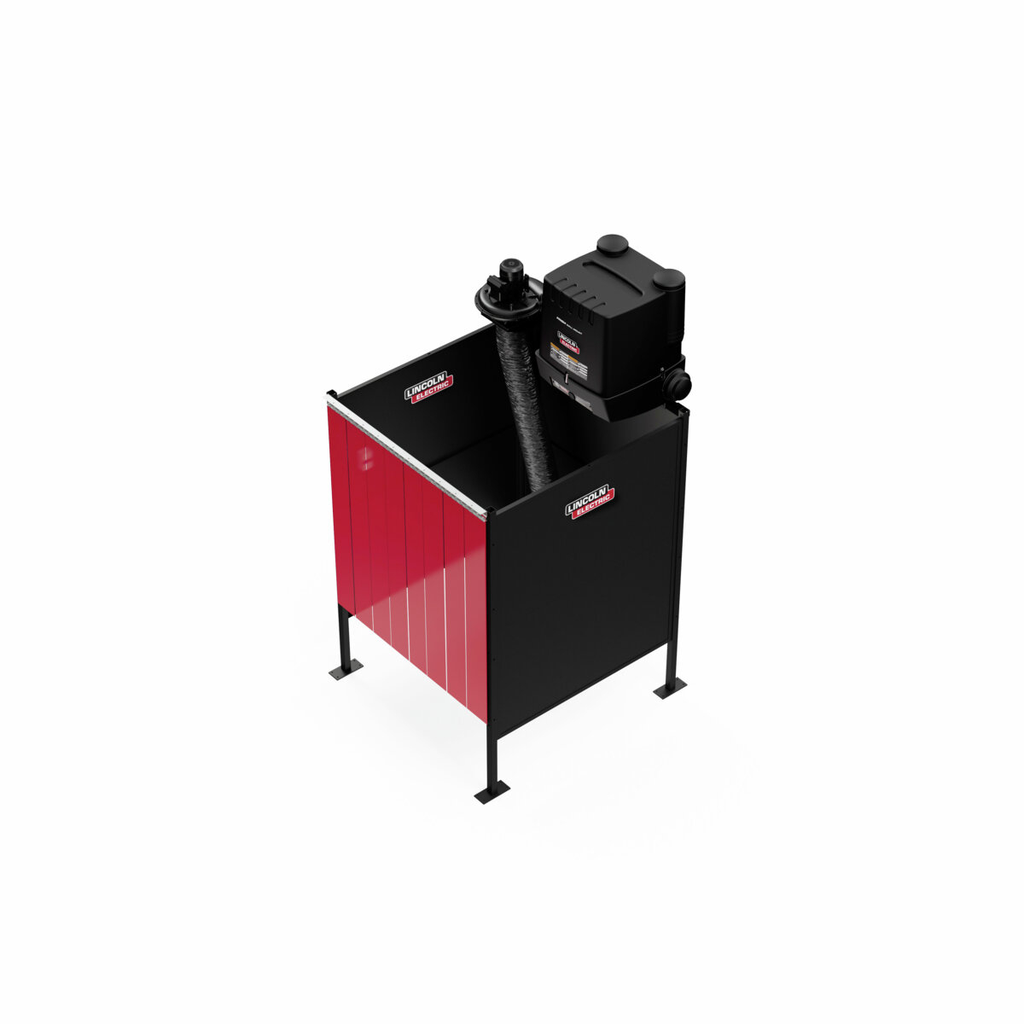

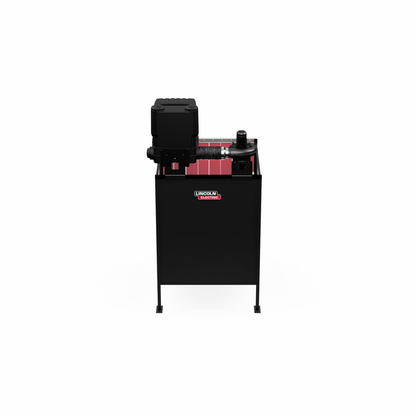

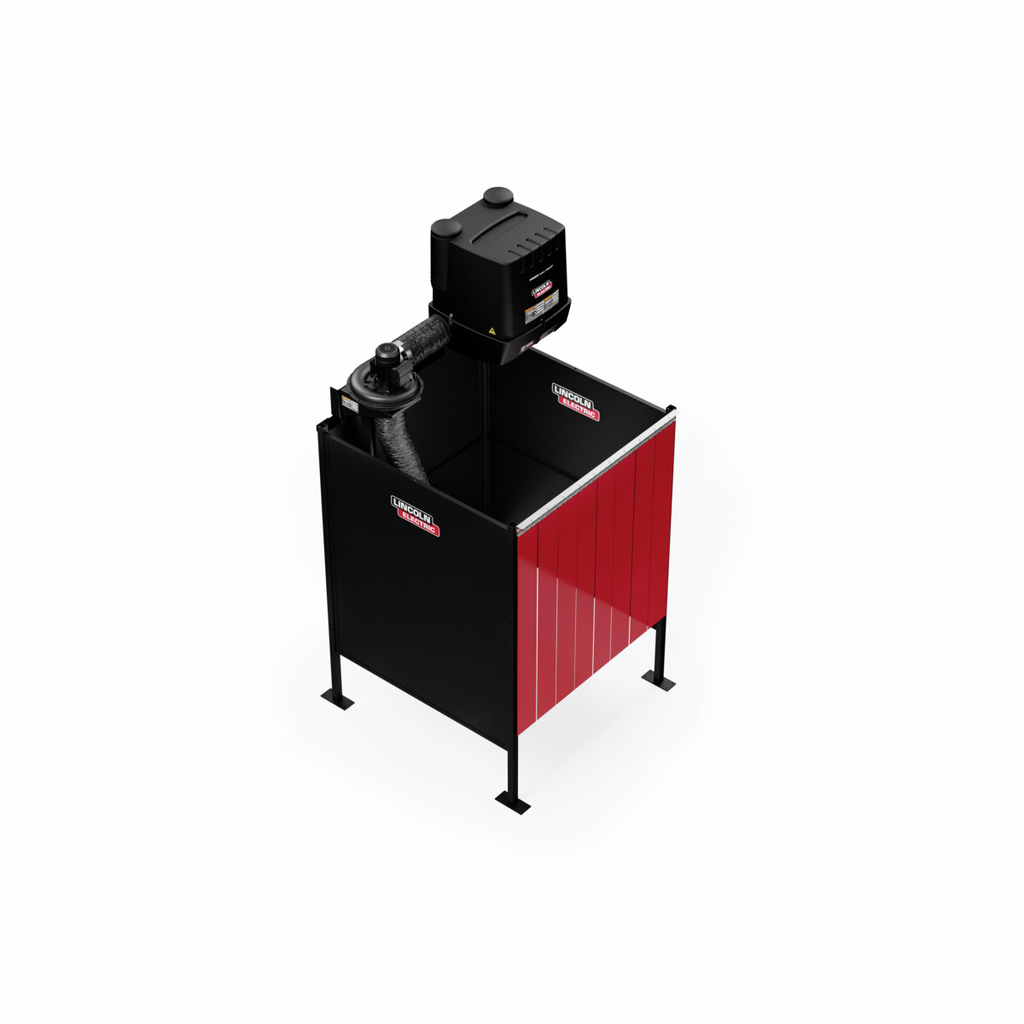

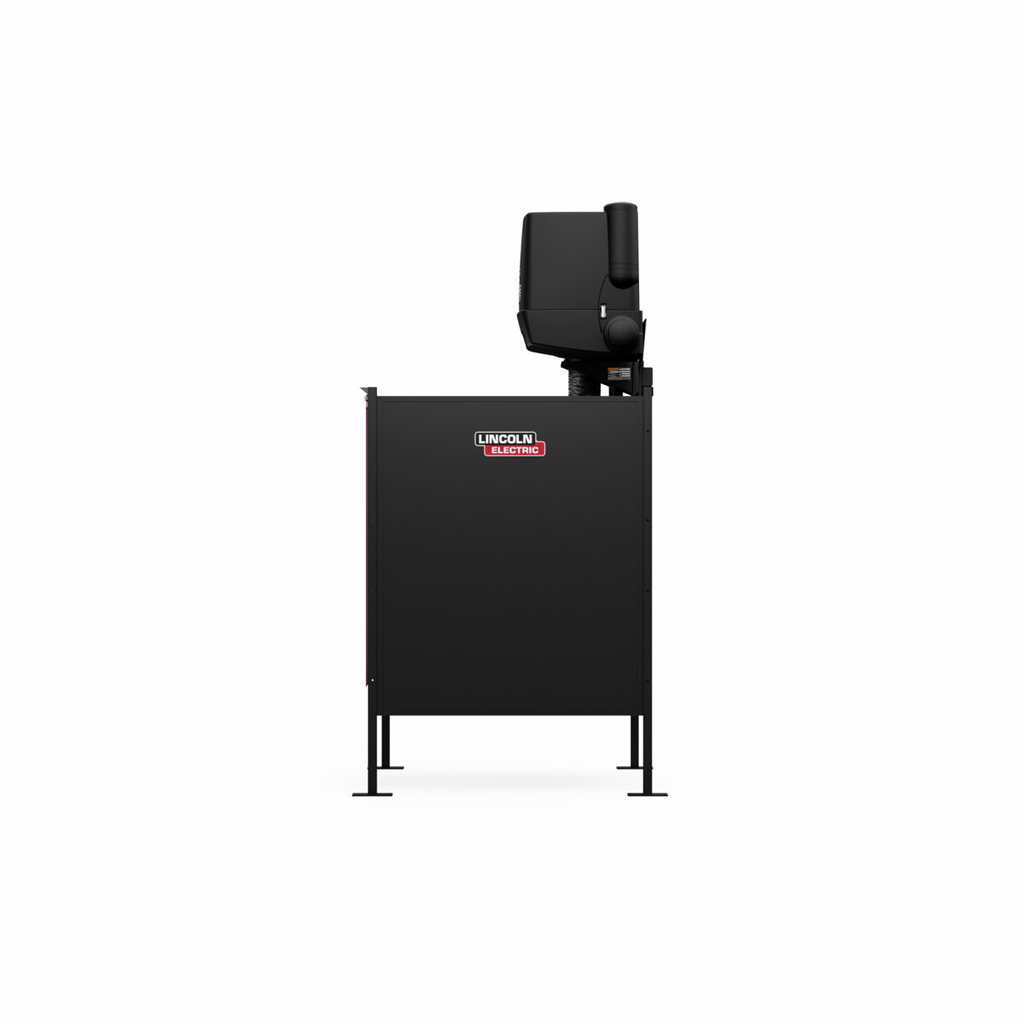

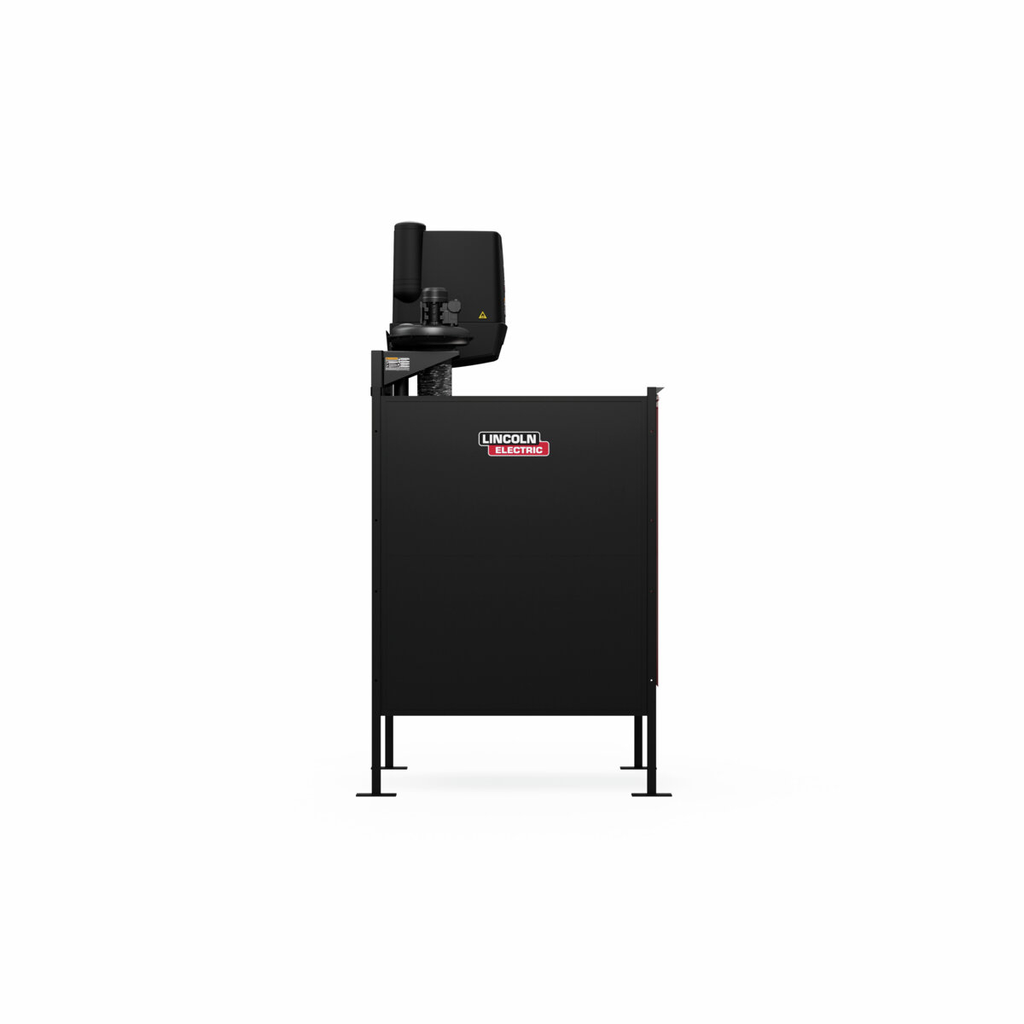

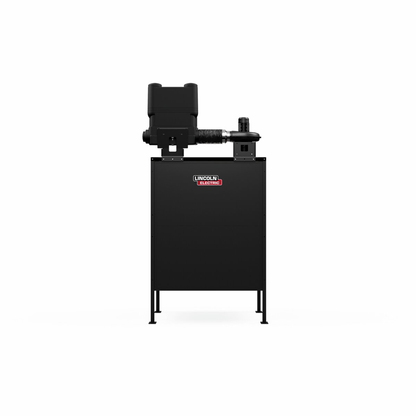

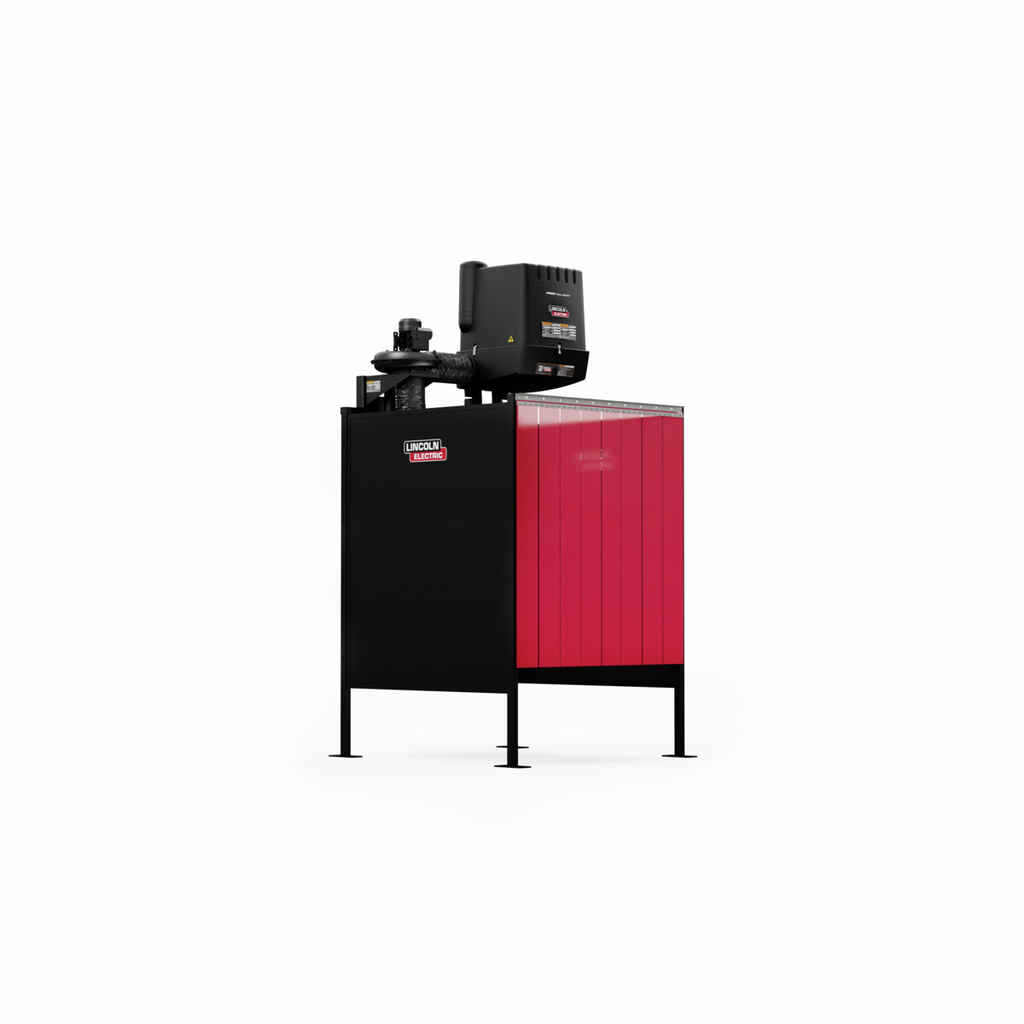

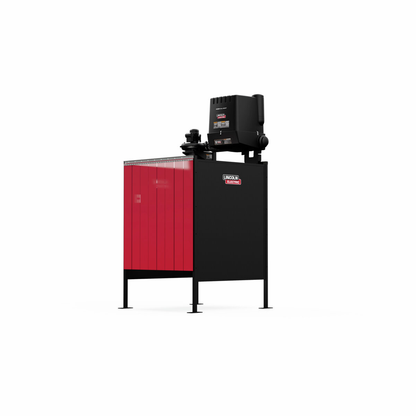

The Weld Booth Fume Extraction One-Pak comes with a single 5x5 ft. weld booth, Prism Wall Mount Fume Extraction unit, and weld curtain ideal for job shops, welding schools, and maintenance departments. The Prism Wall-Mount unit is equipped with a MERV 14 filter, 1 hp fan, telescopic 5-8 ft. counter-weight fume extraction arm, and manual start/stop fan control. This One-Pak ensures a comprehensive weld booth set up that is safe, robust, and spacious.
Features
- Booth walls have an open space of 18 in. at the bottom of the weld booth for air circulation and safety. (Exceeds AWS EG2.0:2006 Recommendation of 12 in.)
- Comes with Prism 2400 Fan (115V, 1 Phase, 60 Hz, 1 HP) that have self-cleaning concave blades and provide a 735 CFM with Prism Flexible 13 ft. Extraction Arm
- Powder-coated anti-reflective black finish paint is durable and reduces arc reflection.
- Robust design, heavy duty steel construction.
- Telescopic 5-8 ft. Counter-Weight Fume Extraction Arm - Constructed with a balance system for stability, the arms can be placed in a fixed position easily. The 360° rotatable hood can be positioned at the welding arc to quickly capture fumes, while the baffle controls airflow.
- 5x5 ft. Layout - Larger sized booths have enough floor space to comfortably fit both student and instructor.

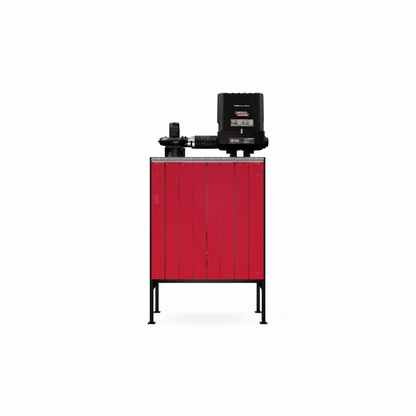

- Booth Curtain - Overlapping red-orange strip curtains cover entire entrance to booth and help to protect other students and workers from arc flash and sparks. Curtain material compliant with AWS F2.3m-2011.
What's Included?
- (1) K5543-1 Single 5x5 ft. Weld Booth, (1) K1654-4 Prism Wall Mount Base Unit, (1) K5545-1 Arm Mounting Bracket, (1) K5544-1 Prism Wall Mounting Bracket, (1) K1655-14 Telescopic 5-8 ft. Counter Weight Arm, (1) K1494-2 Starter/ Overload Switch, (1) K1656-9 Prism 2400 1 HP Stationary Fan, (1) KP1673-5 Prism Pre-Filter, (1) KP1673-1 Prism MERV 14 Filter, (1) K5249-2 Booth Curtain Kit - 62x66 in.
-
Airflow: 735 CFM
-
Fan Power: 1 HP
-
Fan Voltage: 115V
-
Fan Phase: 1 Phase
-
Fan Frequency: 60 Hz
-
Width: 69.6 in (1767 mm)
-
Depth: 70.8 in (1798 mm)
-
Height: 134.4 in (3400 mm)
-
Booth Size: 5 x 5 ft
-
Booth Wall Open Space: 18 in
-
Extraction Arm Length: 5-8 ft
-
Extraction Arm Type: Telescopic Counter-Weight
-
Arm Rotation: 360 rotatable hood
-
Filter Type: Prism Pre-Filter and MERV 14
-
Curtain Size: 62 x 66 in
-
Curtain Material Compliance: AWS F2.3m-2011
-
Material: Heavy duty steel, powder-coated anti-reflective black finish
-
Power Control: Manual start/stop fan control
-
Country of Origin: United States
-
Warranty Length: 3 Years
