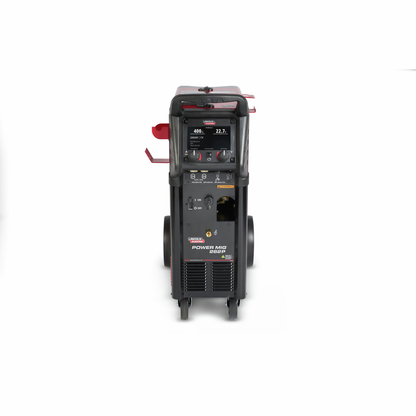

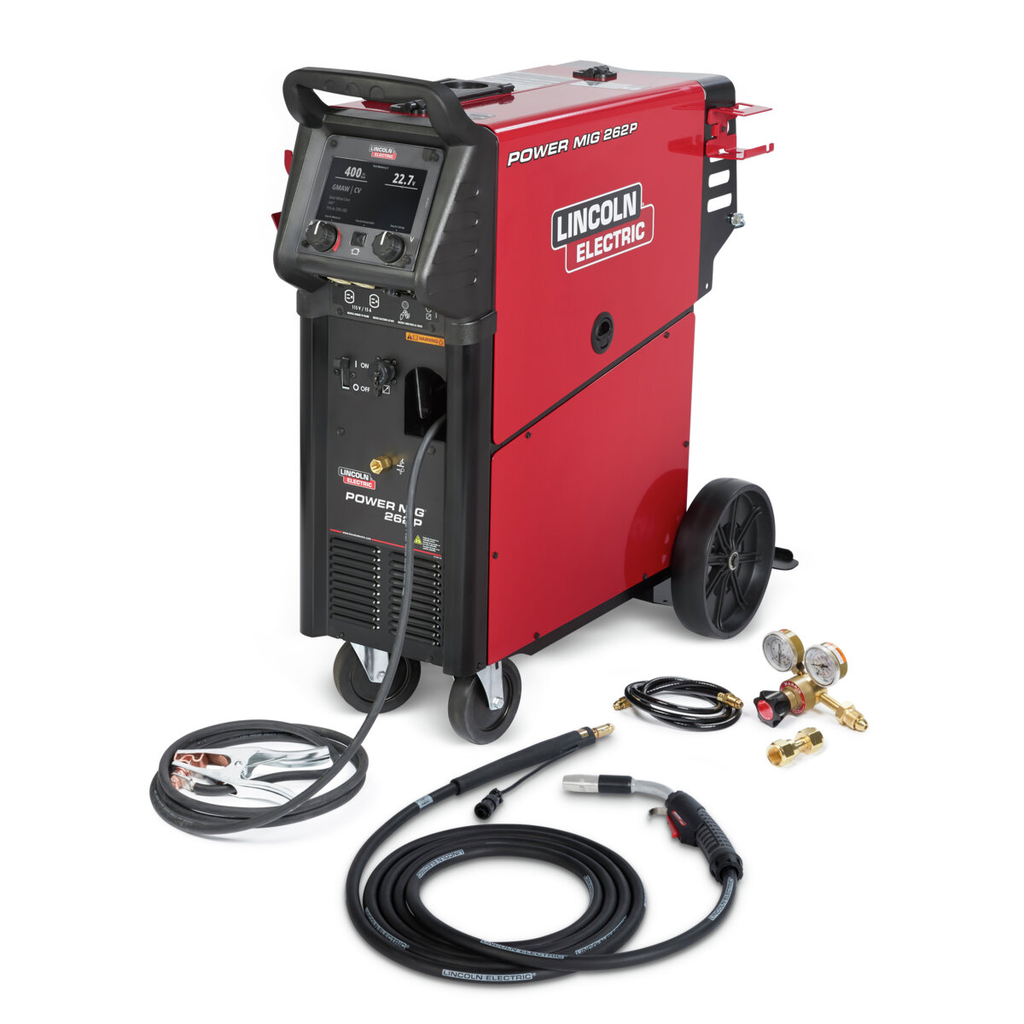

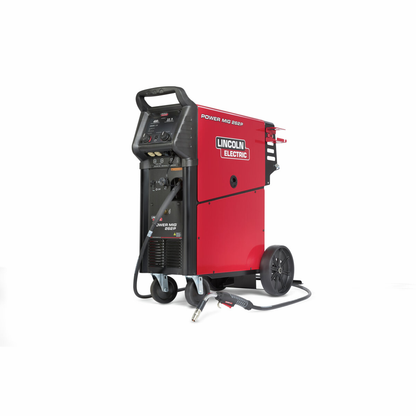

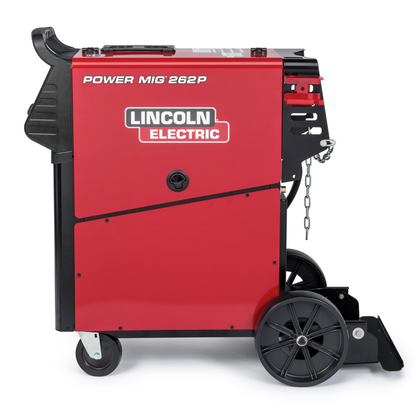

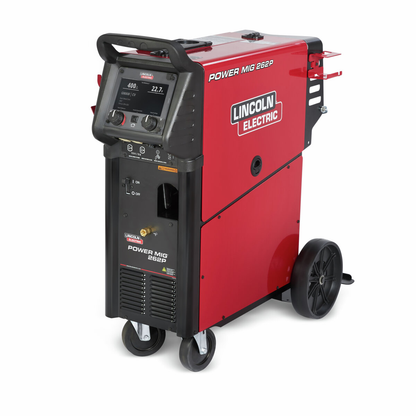

Lincoln Electric, K5378-1, MIG Welder, 300 A Max Output, 208/230/460/575V, 7-Inch LCD Display

PROFESSIONAL-GRADE PERFORMANCE. Experience the ultimate in professional-grade performance with the POWER MIG® 262P. With a max output of 300 Amps and wire-fed functionality including MIG, Pulsed MIG, and Flux-Cored, the 262P delivers all the performance and versatility you expect from the POWER MIG family. Equipped with cutting-edge technology like Ready.Set.Weld®, ArcFX®, and Weld Set Memory, the POWER MIG 262MP puts precise machine control at your fingertips. Navigate effortlessly through its features with the intuitive 7-inch LCD display, ensuring seamless operation and unparalleled operator control. From autobody projects to all-day fabrication, trust the POWER MIG262MP to deliver the unmatched performance and reliability you need.

Features

• Aluminum Pulse Process - Welds 4XXX and 5XXX series aluminum for superior quality welding.
• Rugged MAXTRAC® Industrial Wire Drive - Allows for constant wire feed speed and consistent welds.
• Synergic Control - Set weld procedures with one control.
• Memory Recall - Easily save and access memories with the enhanced UI.
• Versatile wire-fed welding - Welds MIG, flux-cored, and pulsed MIG.
• 300 Amp Max Output- Perfect for autobody, light fabrication, education, and more.
• 3 Ways to Feed Aluminum - Electronics built in for all three methods using a Push Gun, Spool Gun or a Push-Pull Gun.
• 7-Inch Color Display - Enhances communication between operator and machine.

• Amperage: 5-300 A, 300A Max Output
• Rated Output: 230A/26.5 V/60% Duty Cycle
• Open Circuit Voltage: 90 V Max.
• Input Power: 208/230/460/575 V, 1 Phase, 60 Hz
• Welding Types: MIG (GMAW), Pulsed MIG (GMAW-P), Flux-Cored (FCAW)
• Wire Feed Speed Range: 50-700 ipm (1.3-17.7 m/min)
• Dimensions: 37.5 x 18 x 37.5 in (H x W x D)
• Weight: 250 lb (113.4 kg)
• Material Compatibility: Aluminum 4XXX and 5XXX Series
• Country of Origin: Mexico
