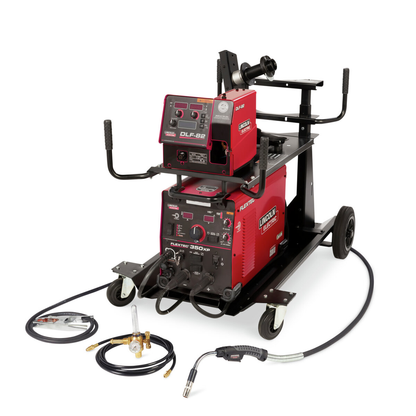

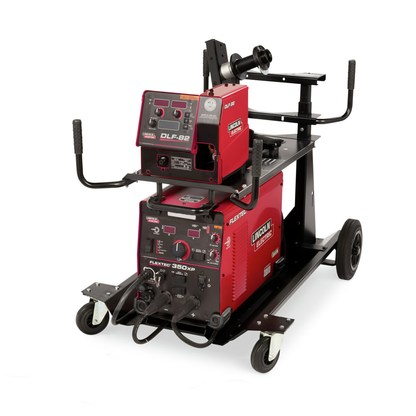

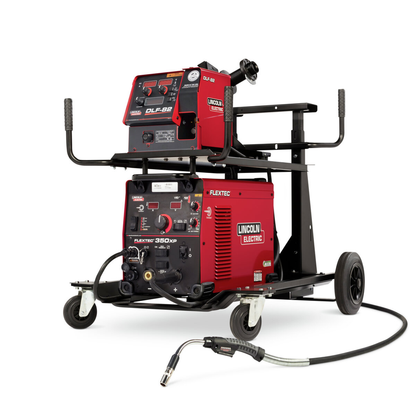

Lincoln Electric, K5335-1, Welding System, Inverter/Chopper, 350A; Pulsed MIG; 380/460/575V 3-phase

The Flextec 350XP / DLF-82 Ready-Pak is the perfect 350A fabrication shop pulsed MIG system. Utilizing the tough and realiable Flextec 350XP multi-process power source, the ready-pak combines the DLF-82 wire feeder for a 350A system that is simple and realiable with the added benefit of pulsed MIG capability, as well as true multi-process support.

Features

• Pulsed MIG Support – lower spatter, greater puddle control, more forgiving MIG process.
• Ready-Pak ships fully assembled and comes with the DLF-82 wire feeder that features pulsed MIG support, synergic weld modes, auto-settings, up to 4 stored weld schedules, and MaxTrac wire drive.
• Includes assembled inverter / wire feeder cart
• 380-575V 3-phase input power required
• Synergic weld modes = one knob control. Set higher wire feed speeds for thicker materials and lower wire feed speeds for thinner materials. Voltage is automatically adjusted.
• Simple to Use – For synergic setup, choose desired weld process, wire type, wire diameter and gas type.

What's Included?

• (1) K4272-2 Flextec 350XP, (1) Input Power Cord 8.5 ft, (1) K5283-3 DLF-82 Bench Model, (1) K4532-2-10-45 Magnum Pro Curve HDE 350 15 ft, (1) KP1505-1 Reversible Drive Roll Kit 0.035-0.045 in, (1) K5284-1 DLF Wire Reel Stand, (1) K3059-4 Inverter and Wire Feeder Cart, (1) 3100211 Flowmeter/ Regulator, (1) K4424-1 Flextec 350X Locking Foot Kit, (1) K5395-1 DLF-Feeder Cart Mounting Bracket, (1) K1803-2 Work/ Power Lead Package

• Output Current: 350A @ 60%
• Input Voltage: 380-575V, 3-phase
• Processes: MIG (GMAW), Pulsed MIG (GMAW-P), FCAW-S, FCAW-G
• Wire Diameter Range: 0.035-0.045 in
• Synergic Weld Modes: Yes
• Stored Weld Schedules: Up to 4
• Voltage Control: Automatic (Synergic)
• Wire Feeder: DLF-82
• Max Output Rating: 425A
• Welding Technology: Inverter/Chopper
• Number of Driven Rolls: 2 rolls
• Gun Bushing: Tweco #2-#4
• Dimensions: 17 x 13 x 24 in (432 x 330 x 609 mm)
• Weight: 82 lb (37.1 kg)
• Output Polarity: DC
• Input Frequency: 50/60 Hz
• Country of Origin: United States
