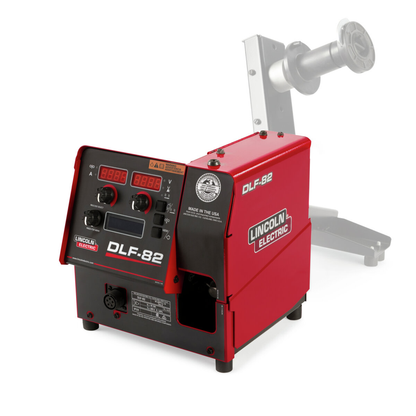

Lincoln Electric, K5282-1, Wire Feeder, Bench, MIG; Pulsed MIG; Flux Cored, 800 IPM, 600 A, ArcLink

The DLF-82 wire feeder is the ideal feeder to pair with Flextec power sources for Pulsed MIG as well as CV-MIG welding applications. Designed to combine the latest welding innovation with easy, operator-focused control features, this wire feeder/power source solution delivers the benchmark of simplicity and performance.

Features

• Customizable Start and Crater Settings – greater control over weld profile at start and end of weld.
• MaxTrac Wire Drive – proven performance, consistent and reliable wire feeding
• Simple System Configuration – Includes integrated 5-pin ArcLink control cable.
• Memories – up to four stored weld schedules for easy changes between different welds. Easily configurable from 1-4 memories.
• Simple to Use – For synergic setup, choose desired weld process, wire type, wire diameter and gas type.
• Synergic Weld Modes – One knob control. Set higher wire feed speeds for thicker materials and lower wire feed speeds for thinner materials. Voltage is automatically adjusted. (requires synergic compatible Flextec)
• Pulsed MIG Support – With pulse supporting Flextec power source – lower spatter, greater puddle control. (requires pulse compatible Flextec)
• Auto Settings – run-in speed, pre-flow, post-flow, burn-back are auto-set based on setup configuration. (requires auto-settings compatible Flextec)
• Limits/Lockouts – reduces chance of accidental welding out of procedure

What's Included?

• (1) DLF-82 Wire Drive, (1) Integrated ArcLink Control Cable 8 ft

• Output Current: 500A @ 100%, 600A @ 60%
• Wire Feed Speed Range: 50-800 ipm (1.3 - 20.3 m/min)
• Solid Wire Diameter Range: 0.023 - 1/16 in (0.58 - 1.6 mm)
• Cored Wire Diameter Range: 0.030 - 5/64 in (0.76 - 1.98 mm)
• Length: 12.40 in (315 mm)
• Width: 11.41 in (289 mm)
• Height: 12 in (305 mm)
• Weight: 43 lbs (19.5 kg)
• Wire Feeder Supply Voltage: 40 VDC
• Wire Feeders Processes: MIG, Pulsed MIG, Flux Cored
• Number of Driven Rolls: 2 rolls
• Wire Configuration: Single
• Gun Bushing: Tweco #2-#4
• Feeder Type: Bench
• Ingress Protection Rating: IP2X
• Communication Technology: ArcLink 5-pin
• UI Type: Meters
• Control Cable: 8 ft integrated 5-pin ArcLink
• MaxTrac Wire Drive: Yes
• Weld Modes: Synergic, Pulsed MIG (with compatible Flextec)
• Settings: Auto run-in speed, pre-flow, post-flow, burn-back
• Memory: Up to 4 stored weld schedules
• Controls: Customizable start and crater settings
• Lockouts: Reduces accidental welding out of procedure
• Country of Origin: United States
• Warranty Length: 3 Years
