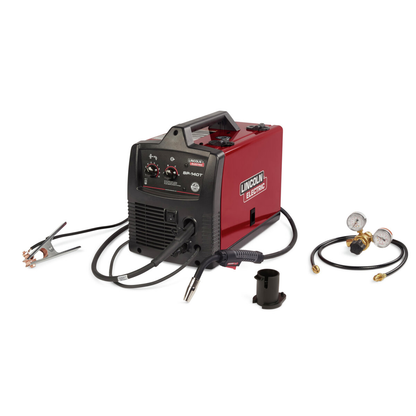

The SP140-T Wire Feeder Welder is designed for project and repair welding at home, on the farm or in an autobody shop. Whether you're a hobbyist or a seasoned welder, this welding machine is designed to deliver excellent performance and convenience. Featuring a compact and portable design, the SP140-T Welder weighs about 50 pounds, measures 13.65 in. H x 10.38 in. W x 17.9 in. D, and has a durable handle for easy maneuverability. Designed with simple tapped voltage control, precise wire drive, and hassle-free wire spool mounting, this welder is easy to set up and operate, so you can confidently tackle your welding project.
Features
- No Hassle Tool-less Design - Hassle-free wire spool mounting, wire drive service and polarity changes.
- Spool Gun Capable - Add the economical Magnum® PRO 100SG spool gun for enhanced aluminum wire feeding performance.
- Precise Wire Drive - Precision full adjustment drive system reduces chance of wire tangling and crushing. Brass-to-Brass gun connections for enhanced conductivity.
- Superior Arc Performance - Forgiving arc and simple tapped voltage control make dialing in your application easy. Smooth arc starts with minimal spatter. Wide 30-140 amp welding output range.
What's Included?
- (1) SP-140T Wire Feeder Welder, (1) Magnum® PRO 100L Gun 10 ft (3.0 m), (1) Gas Nozzle, (1) Gas Diffuser, (1) Cable Liner, (1) Contact Tip 0.035 in (0.9 mm), (1) Work Cable and Clamp, (1) Adjustable Gas Regulator and Hose, (1) Spindle Adapter,(1) Smooth Drive Roll 0.025-0.030 in and 0.035 in
-
Output Current Range: 30-140 A DC
-
Rated Output Current/Voltage/Duty Cycle: 90A / 19.5V / 20%
-
Input Voltage/Phase/Hertz: 120 V / 1 Phase / 60 Hz
-
Input Current at Rated Output: 20 A
-
Wire Feed Speed Range: 50-700 ipm (1.3-17.8 m/min)
-
Maximum Open Circuit Voltage: 33 V
-
Welding Process: MIG, Flux-Cored
-
Dimensions (H x W x D): 13.65 x 10.38 x 17.9 in (347 x 264 x 455 mm)
-
Weight: 49.5 lb (22.5 kg)
-
Wire Diameter Range: 0.025 - 0.030 in and 0.035 in
-
Cooling: Air
-
Welding Technology: Conventional
-
Country of Origin: Mexico
