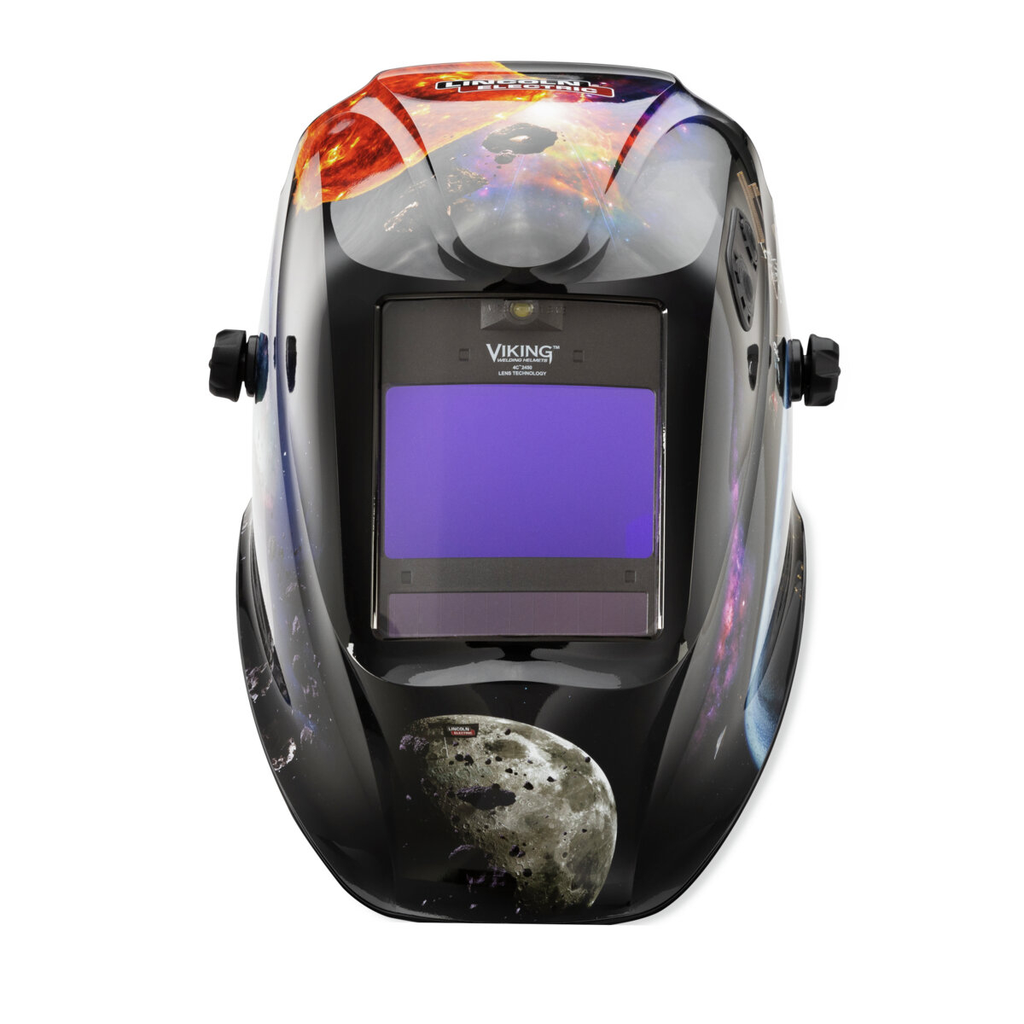

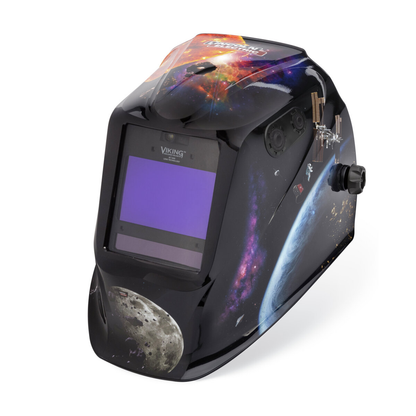

Lincoln Electric, K5243-5, Welding Helmet, Auto-Darkening, 4 Sensors, Shade 5-13, X6 Headgear, 3.82 x 2.44 in Viewing Area

The Lincoln Electric VIKING 2450, our lightweight premium helmet series, offers an excellent blend of industry leading optics, all-day comfort & versatility. This helmet includes our exclusive 4C lens technology and 1/1/1/1 optical clarity for industry leading optics and provides an expanded variable 5-13 shade range, low profile external grind control, and large 9.3 sq. in. viewing area. The digital user interface has moisture and abrasion resistant push button LED UI controls that allow for intuitive adjustments for precise performance. The innovative X6 Headgear™ distributes weight, reduces pressure and optimizes balance.

Features

• External low profile grind control that makes switching between weld and grind modes easy, which increases productivity, prevents accidental activation and provides enhanced application versatility.
• X6 Headgear features an adjustable and firm-fitting top head supports, rotatable front headband, strategically positioned rear headband, an orientation adjustment pin, and easy to use forward and backward adjustments to distribute weight, reduce pressure and optimize balance.
• Digital User Interface with moisture and abrasion resistant push button LED UI controls that promote simple, intuitive adjustments for precise and consistent performance.
• Welding helmet is hard hat and cheater lens compatible and provides enhanced outdoor performance.
• Variable 5-13 shade range and low profile, external grind control provides an expanded versatility and consistent indoor & outdoor performance.
• Replaceable CR2450 batteries ensure increased battery life.
• 9.3 sq. inch (3.82 x 2.44 in.) wide viewing area
• 4C Lens Technology is Lincoln Electric's proprietary liquid crystal display (LCD) that enhances the visible color spectrum of the display, which broadens the color range & hues in both light and dark states. This eliminates imperfections and color saturation to create the clearest view of the base material, arc & puddle, while reducing eye strain.
• 1/1/1/1 Optical Clarity that eliminates distortion, removes blurriness, and provides uniform shade & consistent shade at all angles.

What's Included?

• (1) VIKING 2450ADV Welding Helmet, (1) Bandana, (5) KP2898-1 Outside Cover Lenses, (2) KP2931-1 Inside Cover Lenses, (1) Decal Sheet

• Lens Shade Rating: 5 - 13
• TIG Rating: DC 2 Amp; AC 2 Amp
• Light to Dark Switch Time: 1/25,000 sec
• Viewing Area: 3.82 x 2.44 in (9.3 sq. in)
• Number of Sensors: 4
• Operating Temperature Range: 14 F to 131 F (-10 C to +55 C)
• Storage Temperature Range: -4 F to 158 F (-20 C to +70 C)

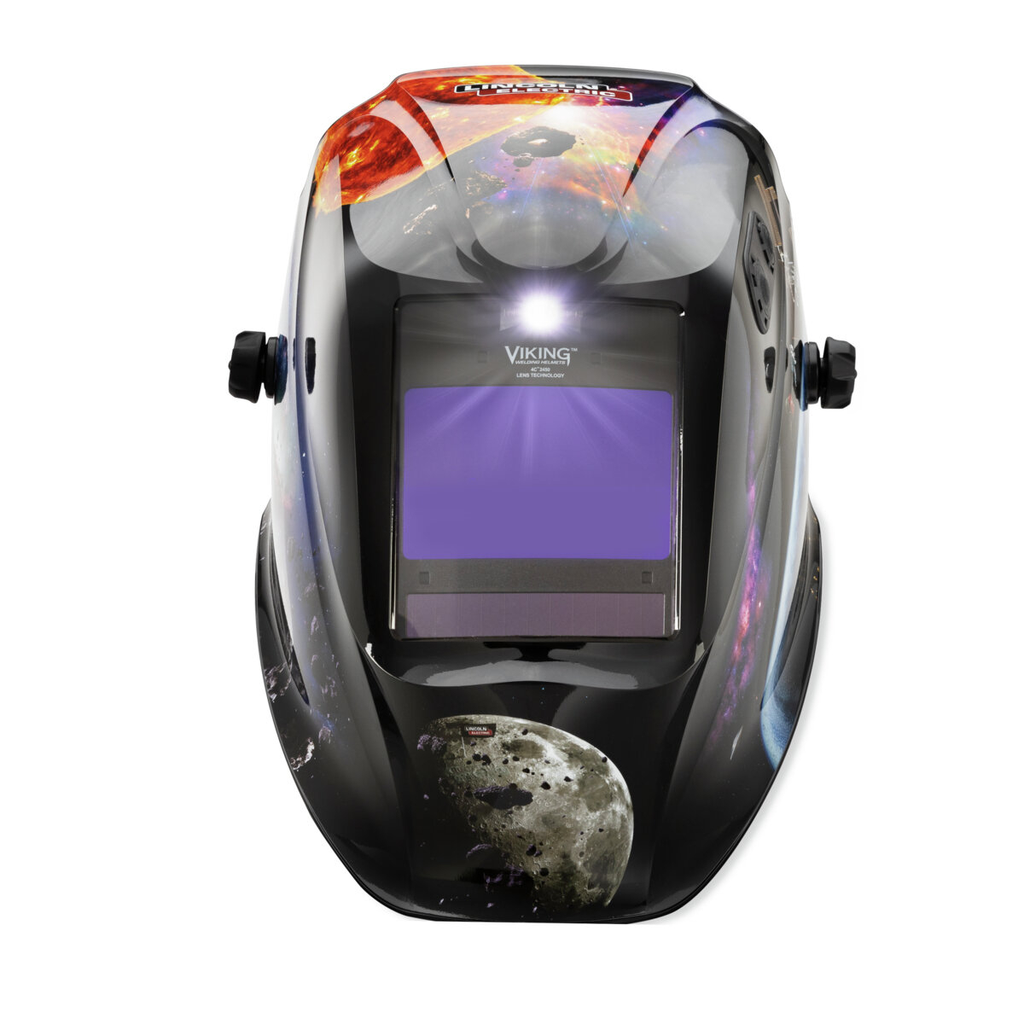

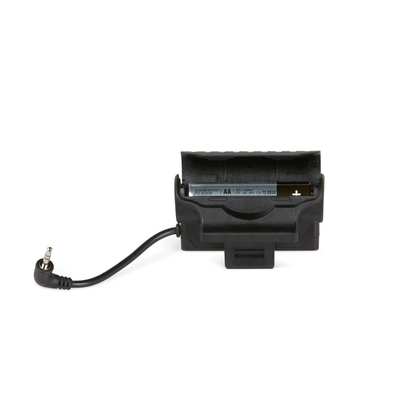

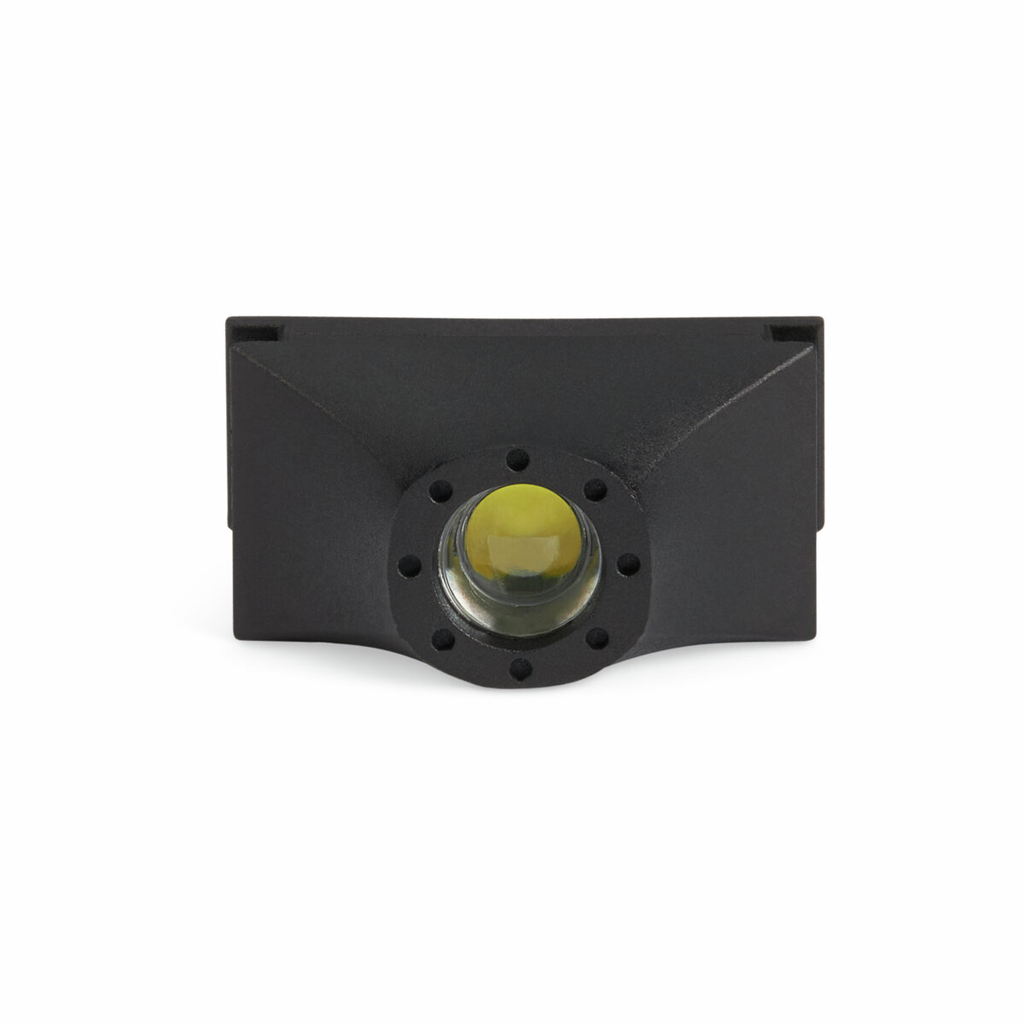

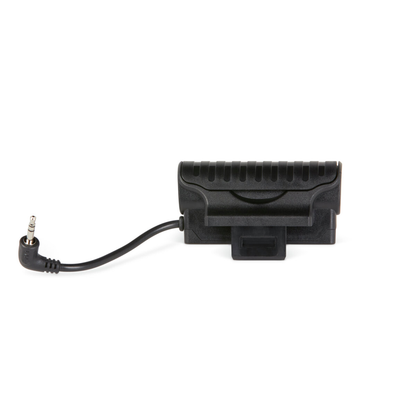

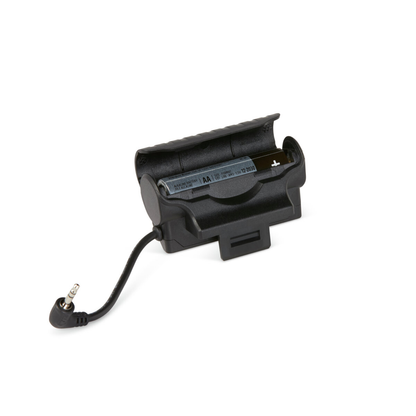

• Power Supply: 1 CR 2450 Battery and AA Battery for LED
• Control Type: Digital
• Grind Mode: Yes, External Low Profile Control
• Auto Darkening: Yes
• Cheater Lens Compatible: Yes
• Headgear Type: X6 Headgear with adjustable top head supports and rotatable front headband
• Hard Hat Compatible: Yes
• Compliance: ANSI Z87.1
• Material: Liquid Crystal Display (LCD)
• Lens Technology: 4C Lens Technology
• Light Sensitivity Control: 9 Sensitivity Settings
• Delay Control Dark to Light: Fully adjustable 0.1 - 0.25 sec
• Magnifying Lens Holder: Yes
• Warranty Length: 3 Years
• Manufacturer Color/Finish: Intergalactic
• Country of Origin: China
• Product Series: VIKING 2450 Series

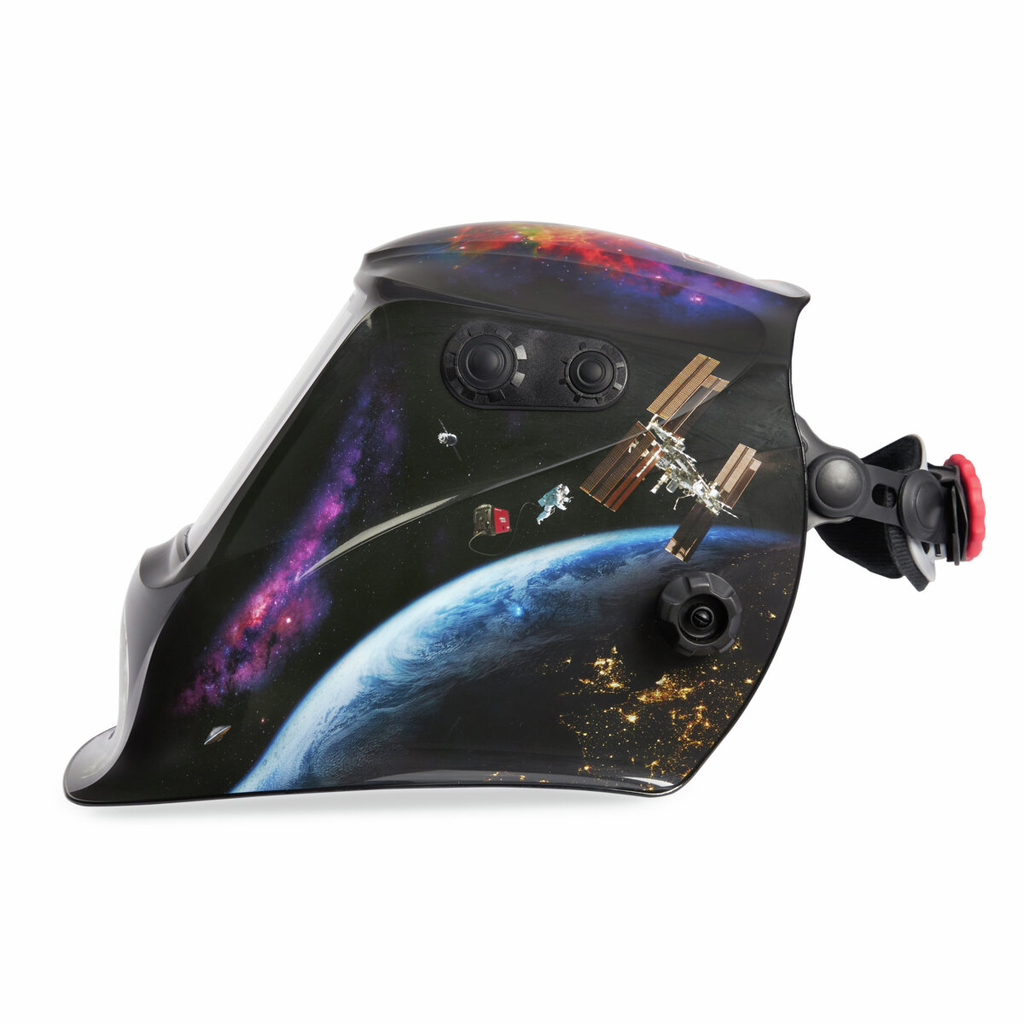

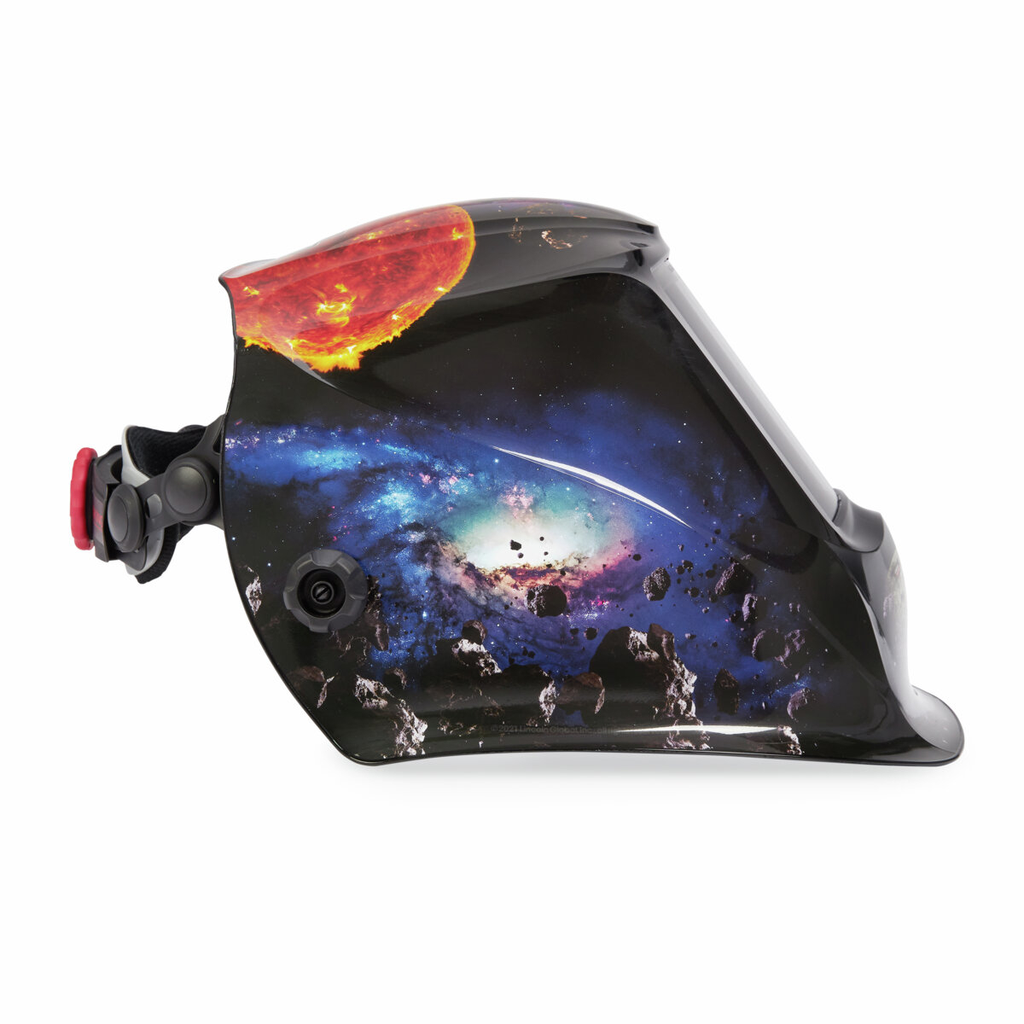

• Shell Type: Graphic
