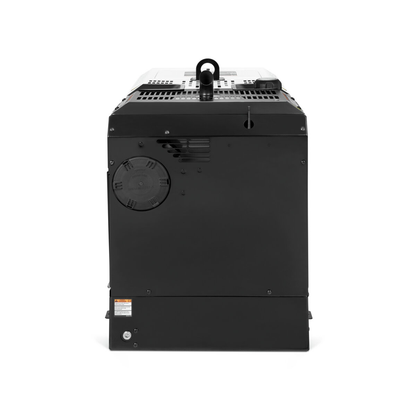

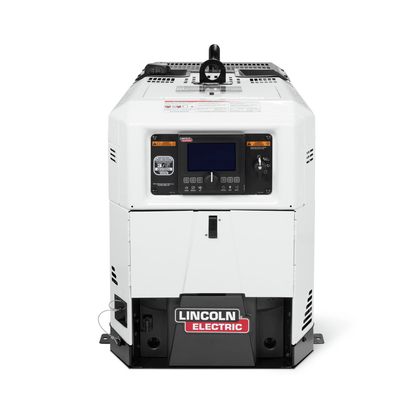

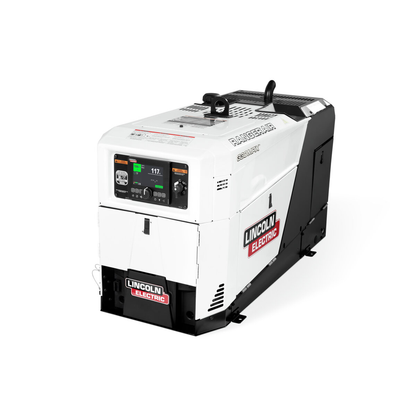

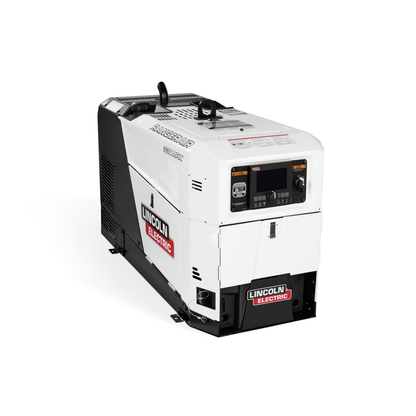

VERSATILITY WITH UNPARALLELED PERFORMANCE - The Ranger Air 330MPX multi-function engine drive was designed for the operator who faces the unexpected every day. With 5 key functionalities in one compact unit, the Ranger Air 330MPX is a multi-process welder, generator, air compressor, battery jump assist, and battery charger. The Ranger Air 330MPX is an industry leading machine with its top-tier performance in air power, clean auxiliary power, and arc performance. Due to its variable engine speed and auto stop/ start capabilities, this engine drive requires less fuel and reduces maintenance costs resulting in a lower cost of ownership.
Features
- Generator - 10 kW of clean continuous AC generator power accommodates a variety of tools and equipment, allows you to power tools while welding and with less than 5% total harmonic distortion (THD) you can operate sensitive electronics, like laptops.
- Ready. Set. Weld.® Technology - Simplifies setup by recommending optimal welding parameters for a given welding procedure. Just follow input the process, electrode type, electrode diameter, plate thickness and polarity to obtain the recommended settings.
- Air Compressor - The Vanair® rotary screw air compressor delivers instant 40 CFM @ 150 PSI, generating up to 30% more air power compared to other machines in its class. Operators can power large tools - op to a 1 in. compact wrench, and inflate tires faster to completes jobs in less time.
- Multi-Process Welder - Stick, TIG, MIG, Flux-Cored and direct connect spool gun with a 330A/28V/100% duty cycle, so the operator can tackle a variety of applications.
- Battery Jump Assist and Battery Charge - Capability to jump and charge 12V and 24V batteries on the jobsite. Get equipment started and keep productivity high with 330A for cold cranking assist.
- Chopper Technology® - Provides easy starts, a smooth and consistent arc, and low spatter to help achieve optimal bead appearance.
- Auto Stop/Start - Automatically monitors machine use and places the engine into a standby power mode when not in use - helps save on fuel costs and machine hours.
- Advanced Weld Modes - Gouge, pipe, pulsed TIG and pulsed spool gun modes give the operator more control and flexibility when taking on welding jobs.
- Maintenance Alerts - Keeps track of engine functions and provides real-time data and notifications when service is required. The maintenance screen clearly displays hours remaining, and setting can be customized to issue alerts at preferred intervals.
- CrossLinc® Remote Technology - Communicates voltage controls to the welding power source through one common weld cable, reducing cable clutter and minimizing unnecessary movement around the jobsite.
-
Generator Power: 10 kW
-
Duty Cycle: 100%
-
Welding Amperage: 330A
-
Welding Voltage: 28V
-
Air Compressor Capacity: 40 CFM @ 150 psi
-
Air Compressor Max System Pressure: 225 psi
-
Air Compressor Brand/Model: Vanair
-
Air Compressor Description: Rotary Screw
-
Air Compressor Protections: Safety Relief Valve, High Temp Shutdown
-
Battery Jump Assist Current: 330A
-
Battery Voltage Compatibility: 12V and 24V
-
Machines Processes: Stick (SMAW), TIG (GTAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G)
-
Output Range: CC-Stick: 35 330A, Touch Start TIG: 25 330A, CV-Wire: 16 27 V
-
Max Rating: 330A/28V/100% @ 104 F (40 C)
-
Engine Brand & Model: Kohler OHV Command Pro EFI Electronic Throttle Body ECH749
-
Engine Description: 2 Cylinder Air-Cooled Gasoline Engine
-
Engine Horsepower: 26.5 HP
-
Fuel Tank Size: 11 US gal.
-
Receptacle Types: NEMA 5-20R, NEMA 6-50R, NEMA 14-50R
-
Auxiliary Output Frequency: 60 Hz
-
Dimensions: 48 in L x 48 in D x 20 in W x 26 in H
-
Weight: 565 lbs
-
Country of Origin: United States
