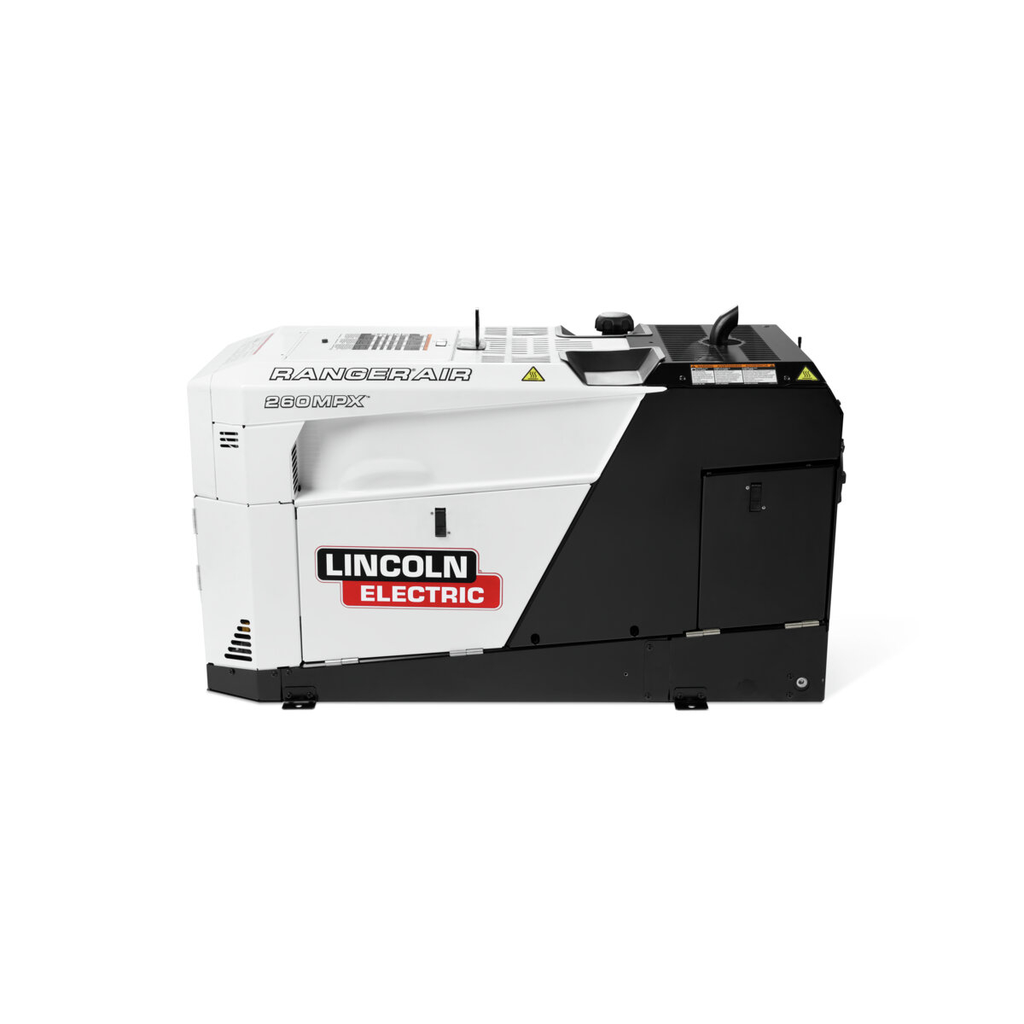

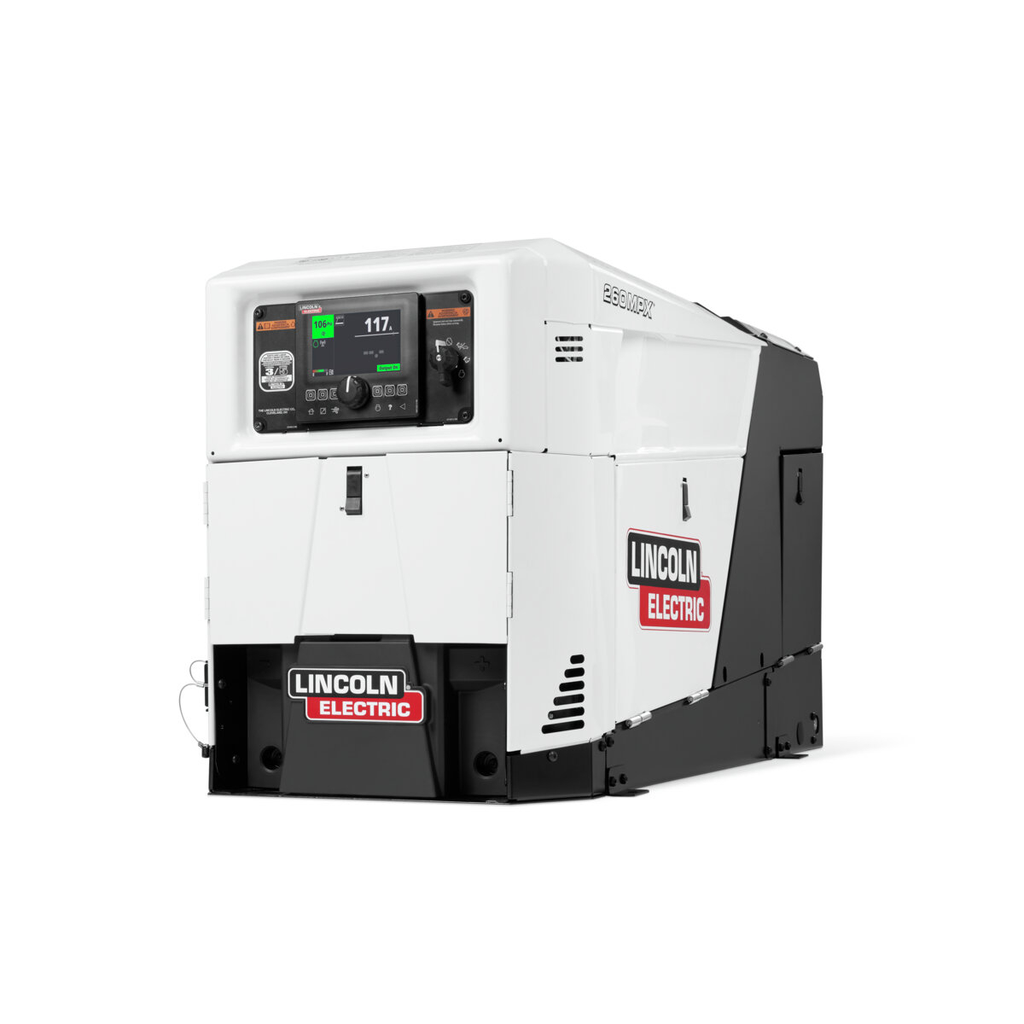

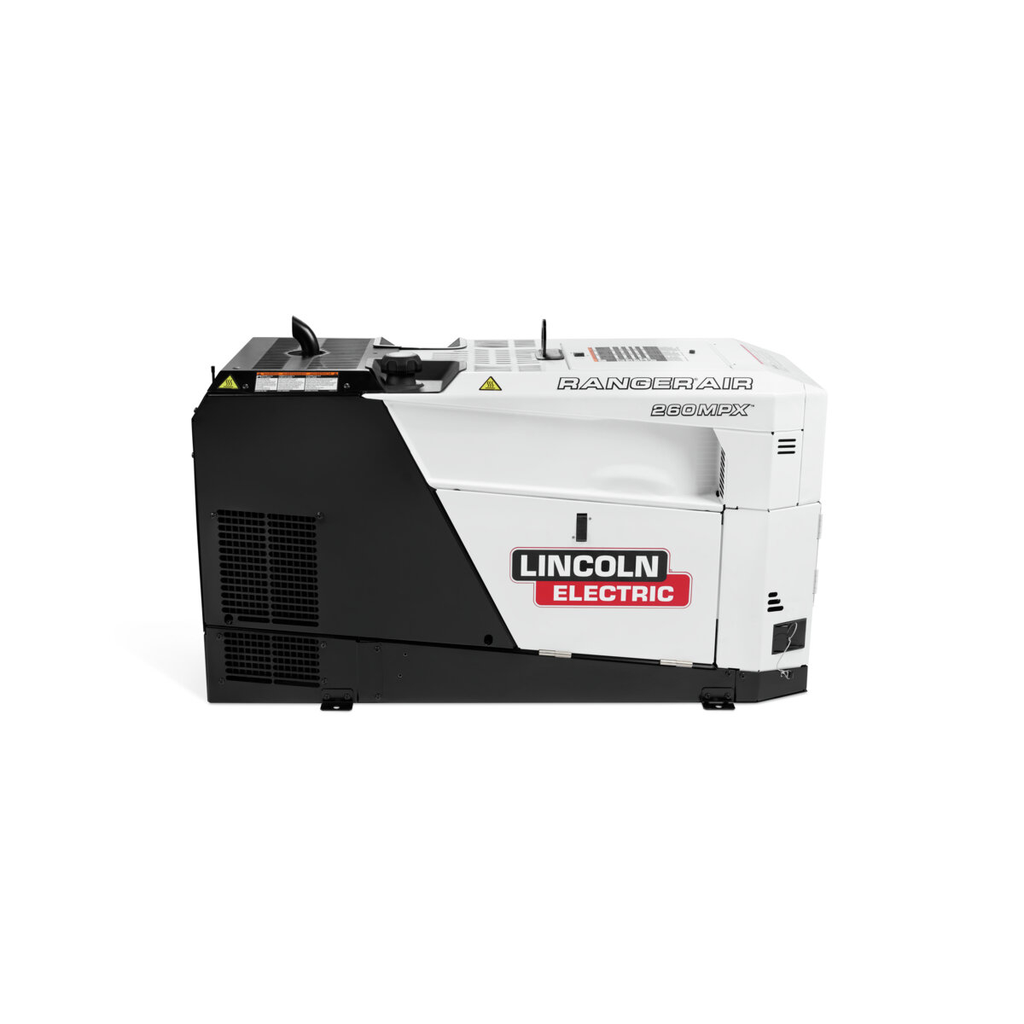

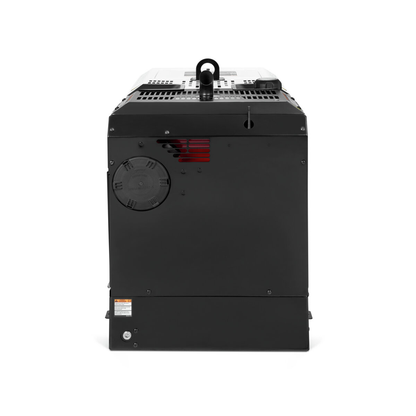

Lincoln Electric, K5238-1, Multi-Function Engine Drive, Welder; Generator; Air Compressor; 260A Output; 41.6 L Fuel Tank

VERSATILITY WITH UNPARALLELED PERFORMANCE The Ranger Air 260MPX multi-function engine drive was designed for the operator who faces the unexpected every day. Versatility 5 key functionalities in one compact unit: Air Compressor. Generator. Battery Jump Assist. Battery Charge. Mult-Process Welder. Industry Leading Performance Top-tier performance across the board in: Air Power. Clean Auxiliary Power. Arc Performance. Lower Cost of Ownership Lower fuel and maintenance costs with integrated technology: Variable engine speed. Auto stop/start capabilities.

What's Included?

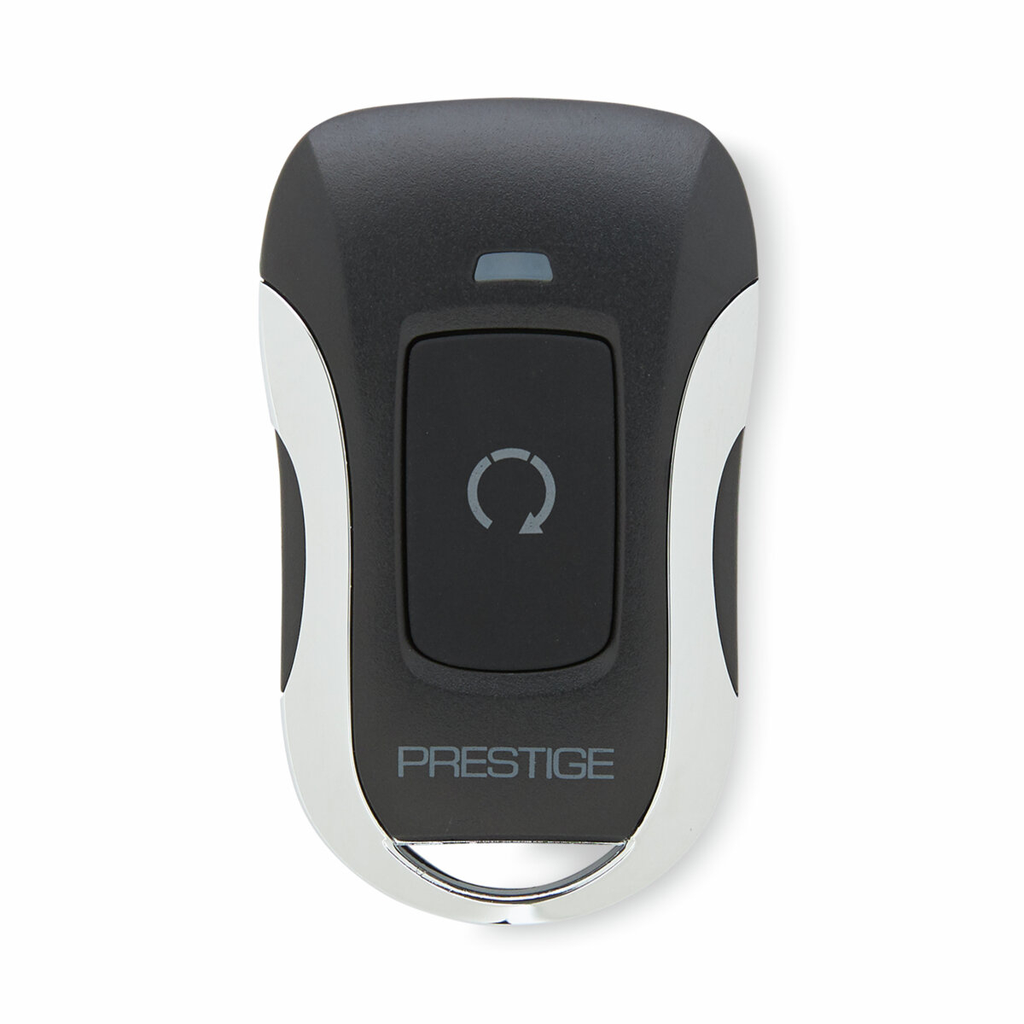

• (1) Ranger Air 260 MPX Engine Drive Welder,(1) Basic Wireless Remote for Engine Stop/Start Functionality

Features

• Compact Design
• Advanced Technology
• Multi-Function Capabilities

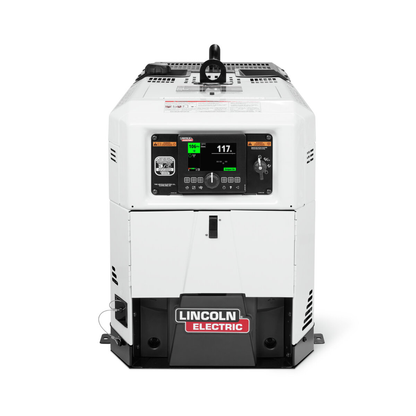

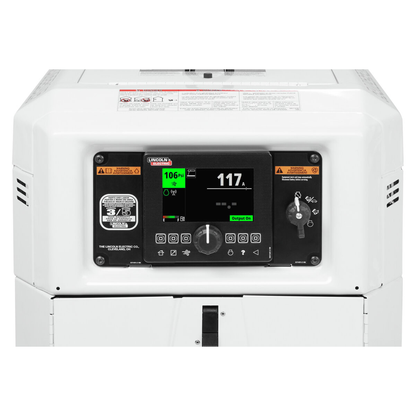

• Digital User Interface
• Cost Saving Features

• Max Rating: 260A / 26V / 100% @ 40 C
• Generator Power Peak: 11,500 Watts
• Generator Power Continuous: 9,000 Watts
• Generator Frequency: 60 Hz Single Phase
• Output Polarity: DC
• Input Voltage: 120/240V

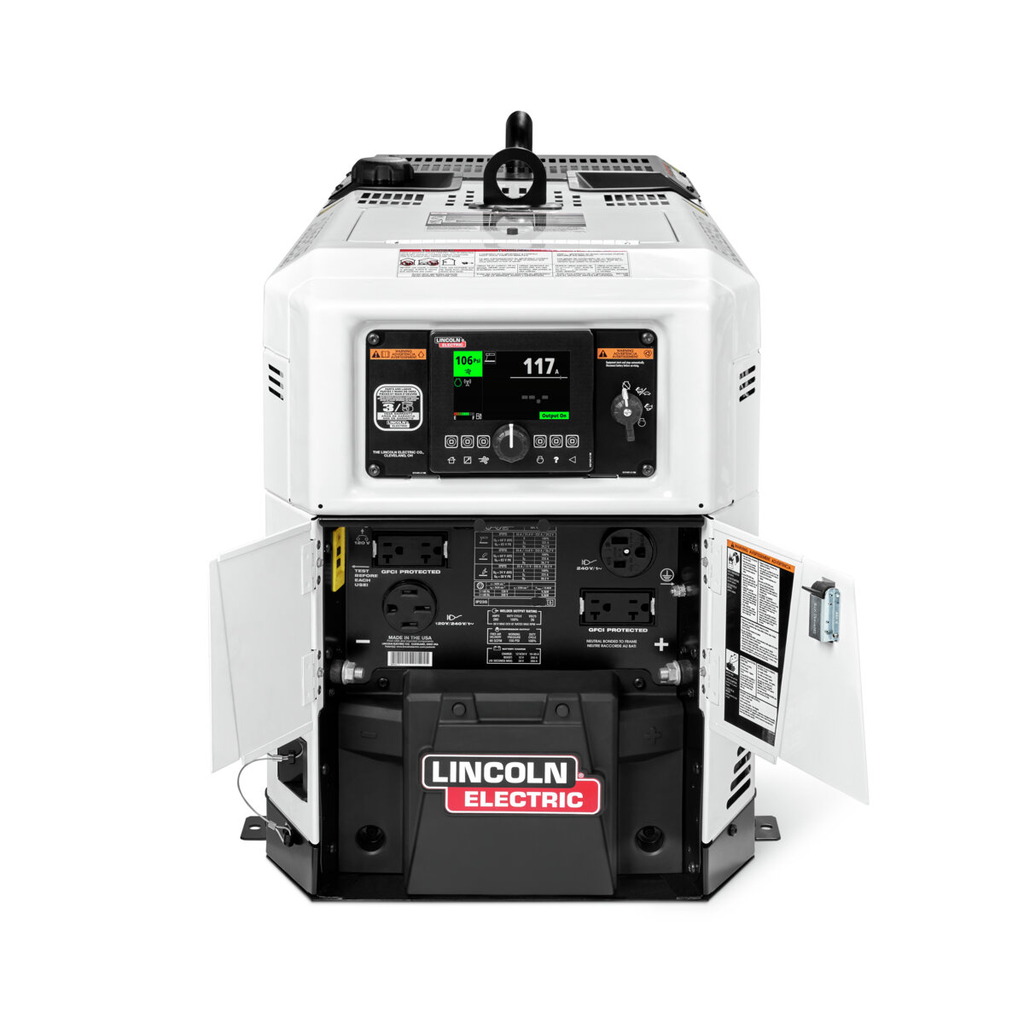

• Receptacle Types: NEMA 5-20R; NEMA 6-50R; NEMA 14-50R
• Duty Cycle: 100%
• Air Compressor Output: 40 CFM @ 150 PSI (1.1 cmm @ 10.34 bar)
• Air Compressor Max System Pressure: 225 PSI
• Compressor Protection: Safety Relief Valve; High Temperature Automatic Shutdown at 250 F (121 C)
• Fuel Capacity: 11 gal (41.6 L)
• Fuel Consumption Full Load: 1.6 gal/hr
• Fuel Consumption High Idle: 0.73 gal/hr (2.8 L/hr)
• Fuel Consumption Low Idle: 0.57 gal/hr (2.2 L/hr)
• Oil Capacity: 1.9 qts (1.8 L)

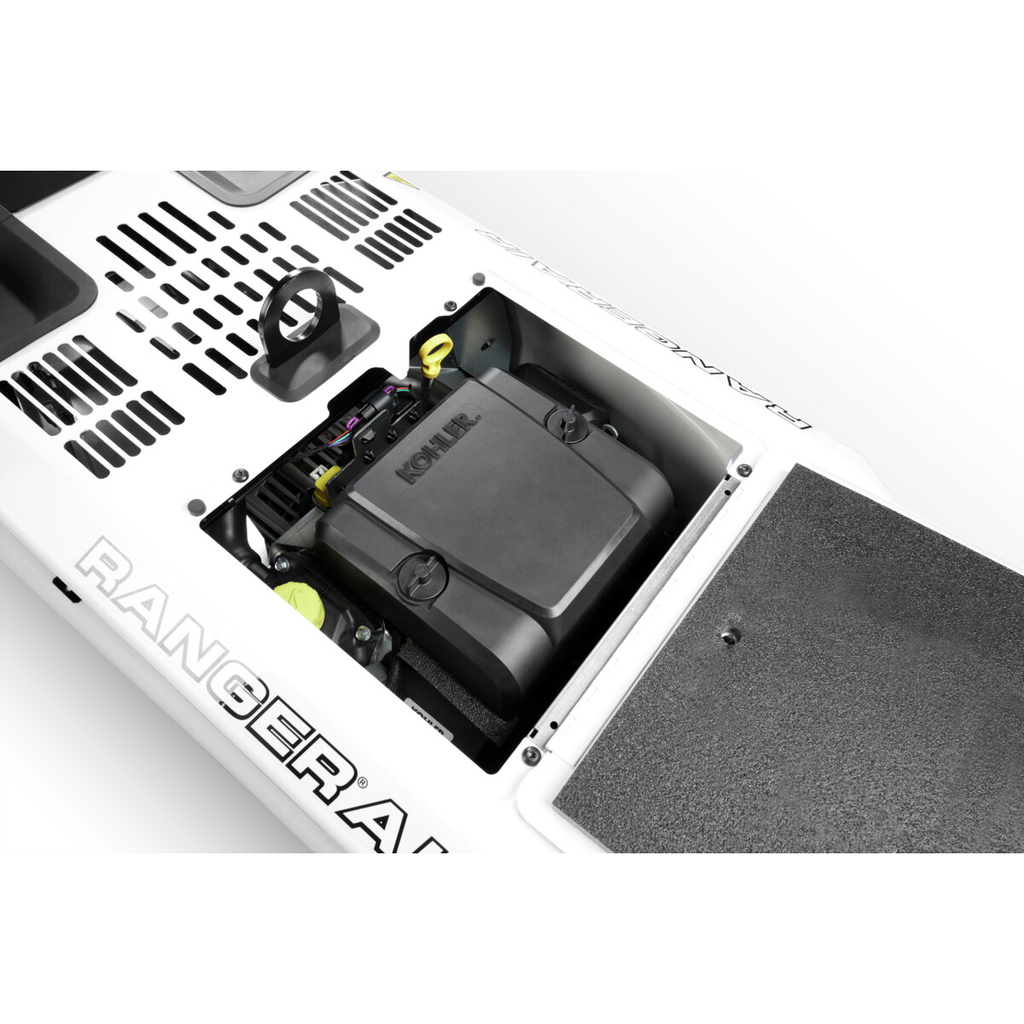

• Engine Description: 2 Cylinder Air-Cooled Gasoline Engine, Kohler Electronic Throttle Body ECH749, 26.5 HP @ 3600 RPM, ECU Controller
• Operating Speeds: Full Load 3600 RPM, High Idle 3600 RPM, Low Idle 2500 RPM
• Weight: 565 lb (256 kg)
• Dimensions: 48 x 20 x 26 in (1219 x 508 x 660 mm)
• Height to Top of Exhaust: 29 in (737 mm)
• Welding Technology: Inverter/Chopper
• Machines Processes: Stick (SMAW); TIG (GTAW); MIG (GMAW); Flux-Cored Self-Shielded (FCAW-S); Flux-Cored Gas-Shielded (FCAW-G)
• Weld Modes: Touch Start TIG; CC-Stick; CV-Wire; Spool Gun
• Multifunctional Equipment: Welder; Generator; Air Compressor; Battery Charging; Jump Starting
• Battery Charge Amperage: 25A or 50A
• Battery Jump Assist Amperage: 260A
• Cold Cranking Assist Amperage: 260A
• Jumper Terminals: Yes
• Cooling: Air
• Engine Cylinders: 2

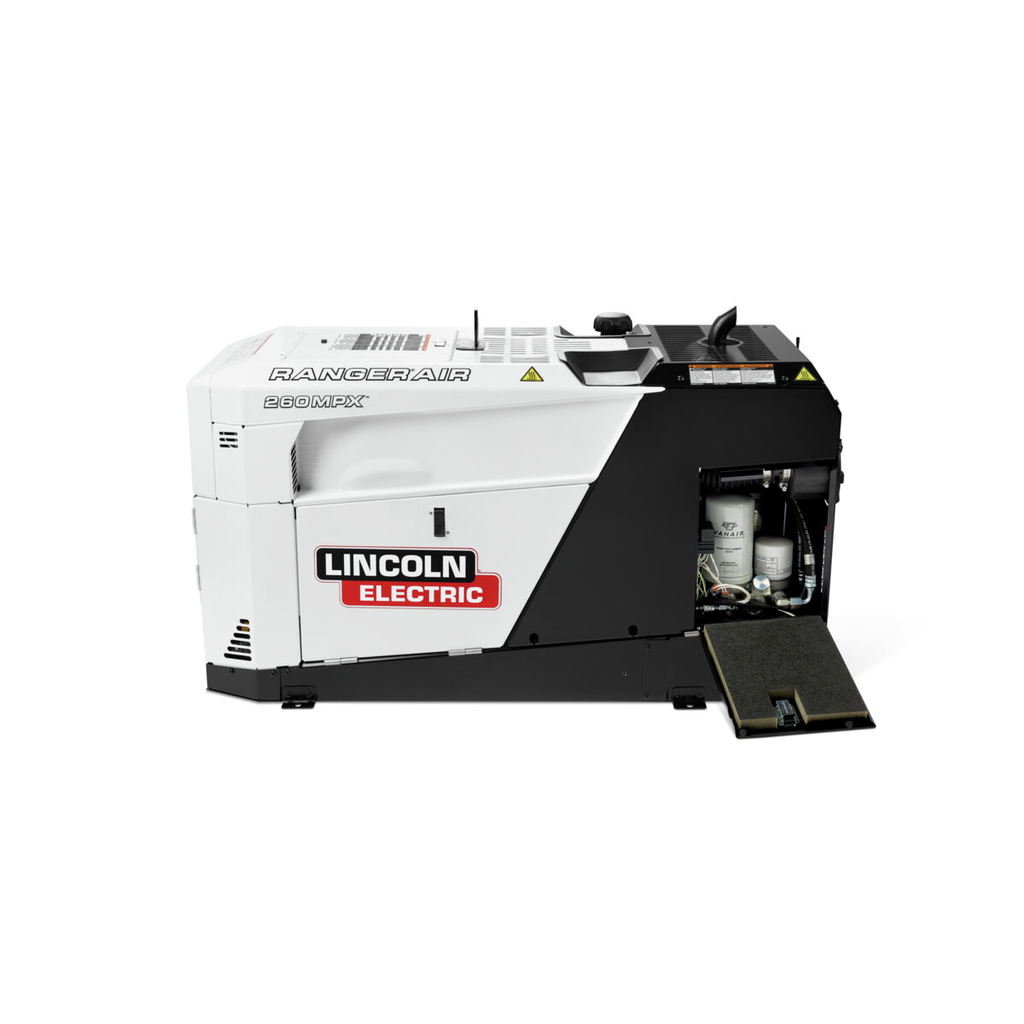

• Air Compressor Brand/Model: Vanair Single Stage, Oil Injected Rotary Screw
• Case Type: Painted
• Ingress Protection Rating: IP23
• Country of Origin: United States
• User Interface Type: Continuous Knob
• Remote Control Options: Wireless; CrossLinc; Wired
• Equipment Technologies: CrossLinc; Auto-Stop/Start; Wireless Remote
• Data Technologies: J1939 CAN
• Machines Communication Technology: CrossLinc
• Warranty Length: 3 Years Parts and Labor; Engine warranted separately
