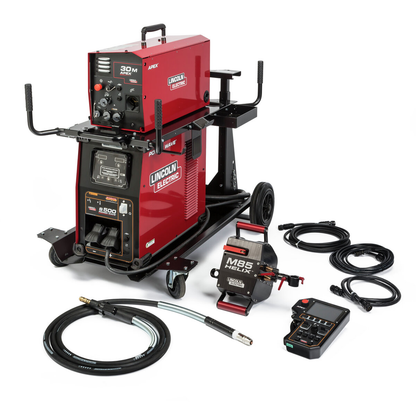

Lincoln Electric, K52165-2, MIG Welding System, 40 VDC, 550A, Single Feedhead, 15 ft Gun Assembly

The APEX 30M Ready-Pak system is a fully integrated and synchronized digital platform for controlling welding, torch motion and wire delivery. With weld data delivered between the controller and pendant instantly, the operator has immediate access to monitor, adjust and control each parameter throughout the process. Simple menus for operation and intuitive controls allow the user to easily operate the system and produce consistent welds for a wide range of applications.

What's Included?

• (1) K2904-1 Power Wave® S500 Welder,(1) K52160-1 APEX 30M Controller and Feeder,(1) K52101-1 HELIX M85 Weld Head,(1) K52113-1 APEX® 3 Series MIG Pendant,(1) K52106-15 Gun Assembly 550A - 15 ft,(1) K52166-1 APEX® 30M System Cart,(1) K52107-15 HELIX Control Cable - 15 ft,(1) K52130-25 Pendant Cable,(1) K1543-8 ArcLink®/Linc-Net® Control Cable - 8 ft,(1) Power Cable (Twist-Mate to Lug) 8 ft,(1) USB Flash Drive 8GB,(1) APEX 30M Crate

Features

• Durability - Designed to withstand operator and environmental abuse.
• Ergonomic - Pendant is lightweight and balanced for one-handed operation, with large buttons and controls for easy operation while wearing protective gloves.
• Service and Maintenance - The controller is designed to be quickly serviced in a production environment.
• Synchronized System - Complete process control from a single user interface. Zero calibration required, closed loop motion with self diagnostics. Programs can be stored on the controller or a USB drive for effortless operator selection and set up. Utilizes on board data collection and logging or Checkpoint® Production Monitoring System. USB port for quick transfer of data and information from system-to-system or system-to-PC
• Easy to Operate - Simple and logical navigation is easy for operators to learn. Illuminated full color display with clear type for trouble-free reading.

• Amperage: 550A
• Input Voltage: 40 VDC
• Max Rated Output: 550A
• Input Phase: 3Ph
• Output Mode: CC; CV; CC/CV
• Feedhead Configuration: Single
• Weight: 450 lb
• Length: 45 in
• Width: 29 in
• Height: 45 in
• Cable Length: 15 ft
• Material: Not specified
• Compliance: Not specified
• Country of Origin: United States
