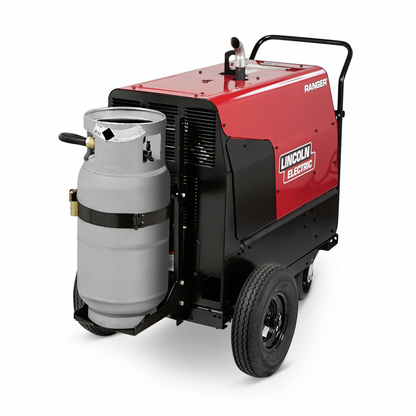

Lincoln Electric, K5168-1, Engine Driven Welder, 300A; 25V; LPG; 10,000W Peak Generator

FOR SPECIALIZED ENVIRONMENTS. Choose the Ranger 305 LPG for those environments where gasoline and diesel emissions are not acceptable. Includes a liquid propane gas supply hose with coupler for easy connection to the liquid draw outlet of an LP-gas cylinder. The 10,000-watt peak single-phase AC generator powers motor starting, tools and inverter welders for extended range and process capability.

Features

• Digital Weld Meters - Digital weld meters for amps and volts makes it easy to precisely pre-set your procedures and monitor actual welding output.
• Superior Arc Performance - Lincoln Electric Chopper Technology® provides easy starts, a smooth arc, low spatter and excellent bead appearance.
• Built-In “Hot” Start - Provides easier starts and restrikes.
• Rugged Reliability - Welding and AC Generator Outputs rated at 104⁰F (40⁰C).
• Multi-Process Welding - Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire and MIG (CO2 and mixed gas). It's the only compact LPG welder in North America rated at 25V for 300 amps of stick or CV welding. CV wire welding with up to 5/64 in. (2.0 mm) diameter electrodes.
• Order a Lincoln Electric Ready-Pak and get everything you need to complete a welding package - all with one order number. Each preassembled package contains: engine driven welder, factory undercarriage, and LPG tank holder.
• 10,000 Watts Peak Single-Phase AC Generator Power - 10,000 watts peak for motor starting. 9,000 watts continuous for high capacity needs such as a back-up generator, powering a Lincoln Electric Invertec® inverter welder. Also can be used for lights, a grinder or other power tools. AC generator voltage is constant at 120V or 240V at any weld dial setting.
• Top-of-the-line Kohler® overhead valve (OHV) 25 HP Command® - LPG (Liquid Propane Gas) engine has plenty of horsepower.
• Skewed Rotor Design - Provides AC power suitable for operating Lincoln Electric inverter power sources.

What's Included?

• (1) K2937-1 Ranger 305 LPG Engine Driven Welder, (1) K1770-2 Factory Undercarriage (Pneumatic), (1) K1745-2 LPG Tank Holder

• Amperage: 300A / 100% Duty Cycle @ 104 F (40 C)
• Voltage: 25V DC stick or CV welding, 14-29V CV wire
• AC Generator Power: 9000 watts continuous, 10,000 watts peak
• Horsepower: 25 HP @ 3600 RPM
• Engine Description: 2 Cylinder Air-Cooled LP Carburetor Engine (Kohler OHV Command CH730 LPG)
• Fuel Consumption: 4.6 lb/hr (2.1 kg/hr) high idle, 2.6 lb/hr (1.2 kg/hr) low idle
• Dimensions: 65.2 x 31.8 x 48.1 in (1656 x 808 x 1222 mm), height to top of exhaust 36.2 in (920 mm)
• Weight: 627 lb (284 kg)
• Electrode Wire Diameter: up to 5/64 in (2.0 mm)
• Operating Temperature: Rated at 104 F (40 C)
• Fuel Type: Liquefied Petroleum Gas (LPG)
• Noise Level: 101.3 dB sound power, 76.7 dBA at 23 ft (7 m)
• Compliance: CSA Certified
• Ingress Protection Rating: IP23
• Output Meters: Digital
• Output Mode: CC; CV; CC/CV
• Welding Technology: Inverter/Chopper
• Work Clamp Included: No
• Spark Arrestor: Optional
• Country of Origin: United States
